30

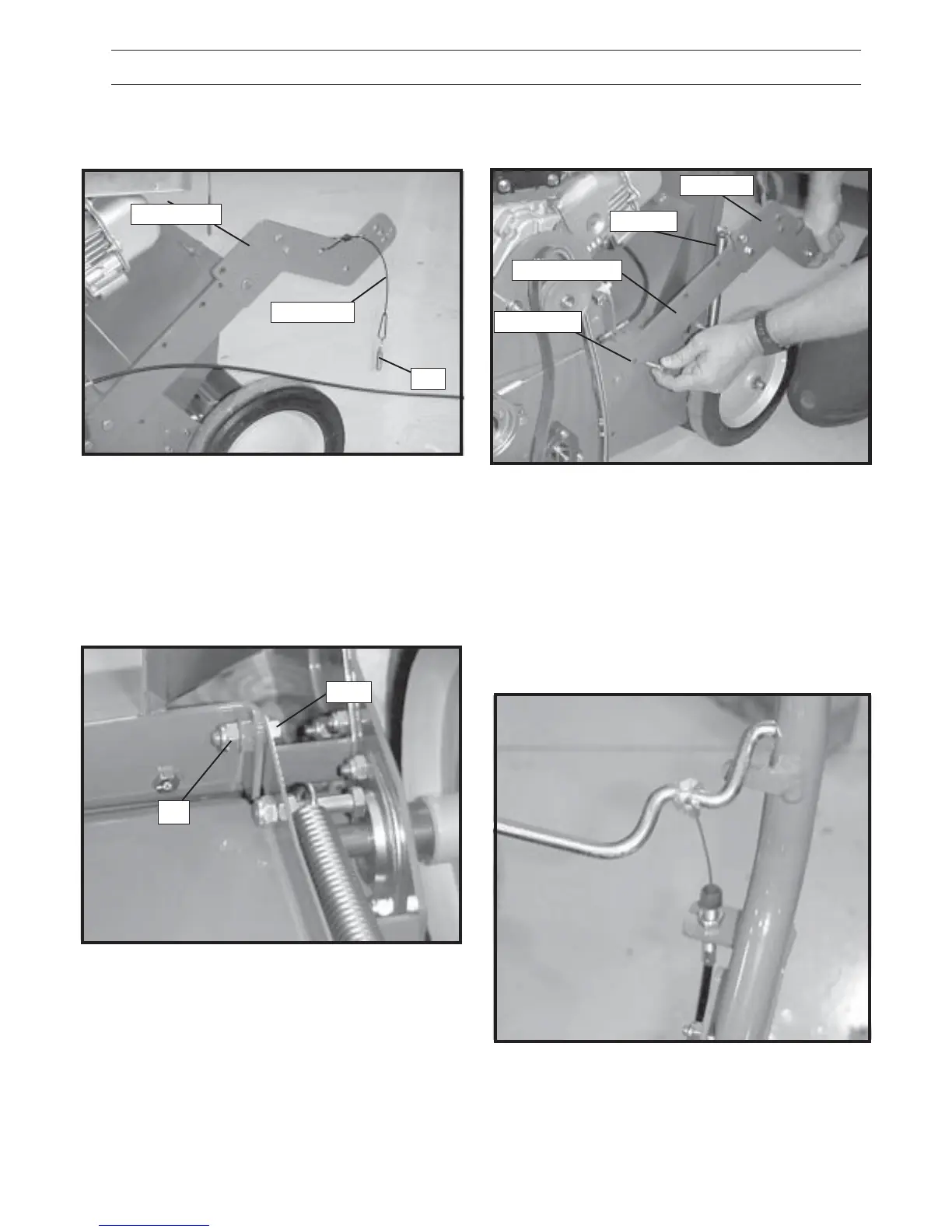

BAGGER ASSEMBLY
FIGURE 8
EXTENDER
LANYARD
PIN
FIGURE 6
18. Place door in position and set the hinge bolts.
DO NOT tighten the bolts, leave at least 1/16"
space. Thread nut on to the bolt. See Figure 7
FIGURE 7
NUT
BOLT
20. Attach upper handle to the extenders.
21. Attach upper end of cable to the handle and
install cable through clutch bail. Fit clutch
bail into the handle. See Figure 9.
FIGURE 9
19. Remove upper bolt from lower handle and
rotate handle toward the ground. Using the
hardware provided install the spring to the
extender. Rotate handle back to original
position stretching spring, re-install the 3/8"
bolt into the lower handle. Repeat on other
side. See Figure 8.
LOWER HANDLE
UPPER BOLT
SPRING
EXTENDER
