23. Make sure the cable moves freely, NEVER
kink the cable.
21. Check adjustment of the cable by tipping unit
forward and making sure when the control le-
ver is in the closed position that the seed gate
is fully closed. If the seedgate needs adjust-
ing, loosen the screw and nut holding the cable
clamp. Move the cable back or forward in the
clamp until the seedgate is closed when the
control lever is closed. DO NOT move the
seedgate with your hand, use the cable to
move the gate for more accurate adjustment.
22. To check the seed dial adjustment , insert a 1/8"
drill bit into one of the holes in the seed gate, the
seed dial should read 3 1/2. If not, adjust the
cable by loosening the screw and nut holding the
cable clamp. Move the cable back or forward in
the clamp until the seed dial reads 3 1/2.
20. Attach the cable with a wire tie farther up the
handle. See Figure 7.
24. Check the unit to see if it functions properly.

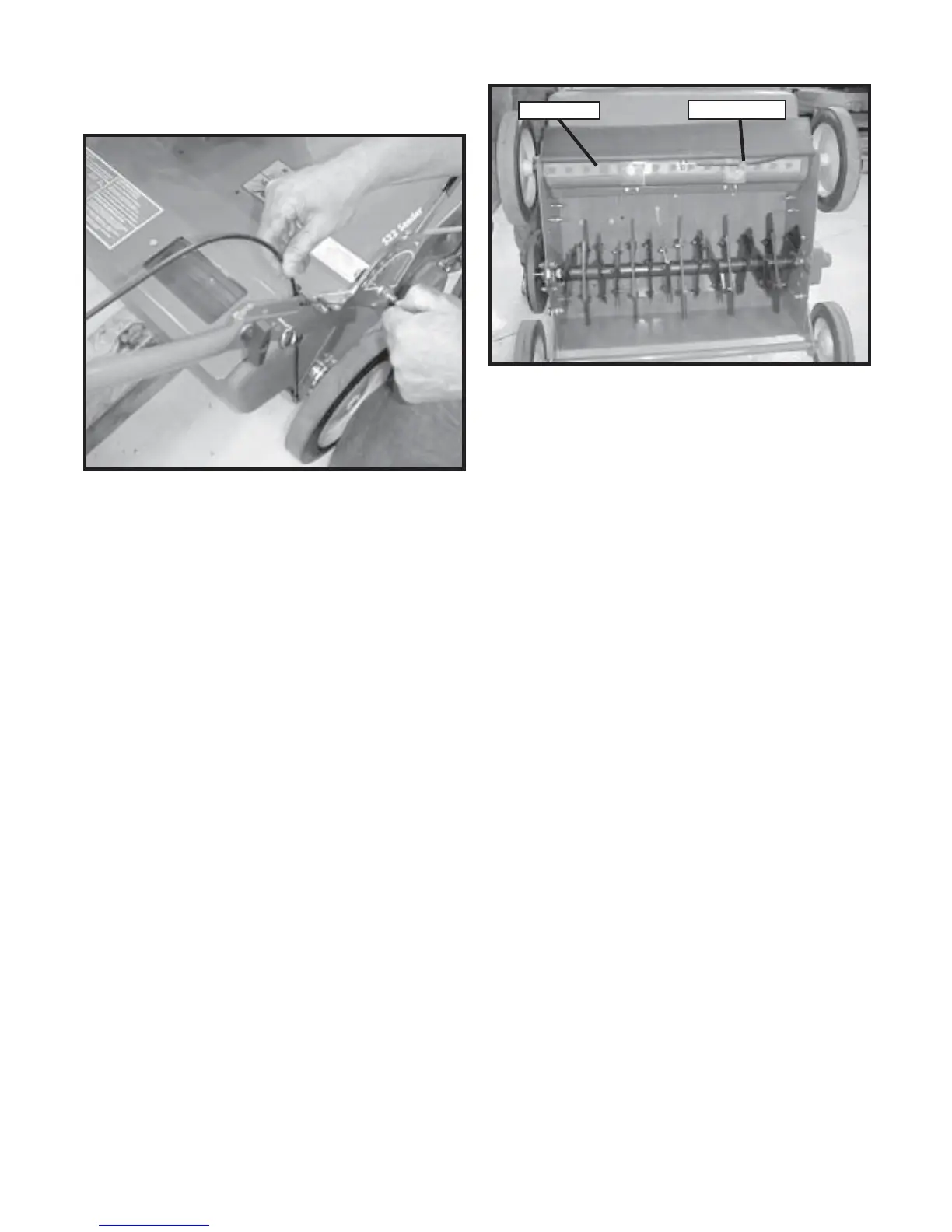

FIGURE 8
FIGURE 7
CABLE CLAMPSEED GATE
