3. Installation of the PTAC grille.
Grille Box Contents:
1 Aluminum grille
6 plastic insert blocks
6 small screw-head bolts with attached washers
Warning - the stamped grille vents can have sharp edges, handle with care. Gloves are
recommended.

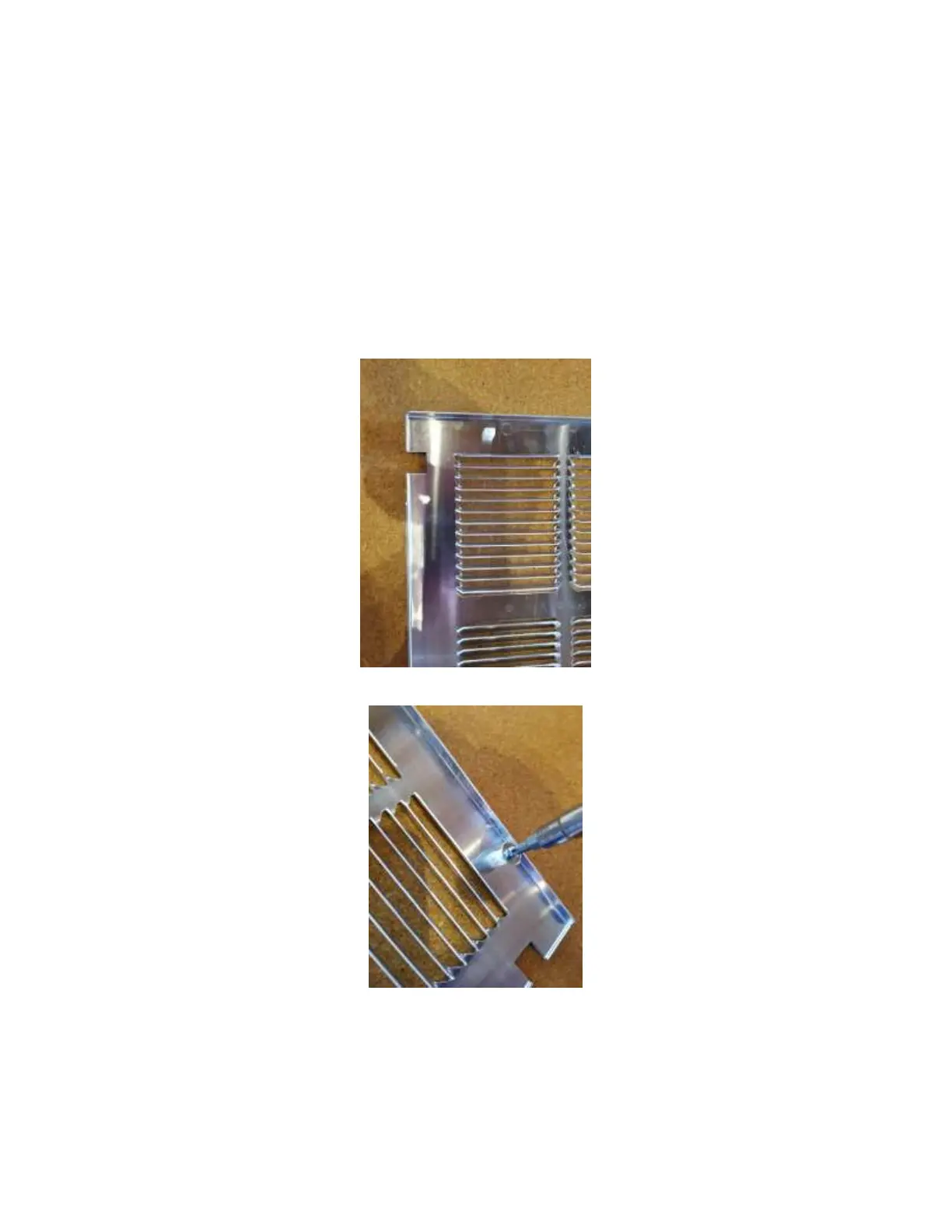

From the outside of the grille, insert the 6 plastic insert blocks into the rectangular holes. The
screw hole should be on the inside.
Insert 4 of the screw-head bolts with washers to the four corners inside of the grille and tighten
part-way.
