BMC SYNTRA User Manual

Serie SYNTRA

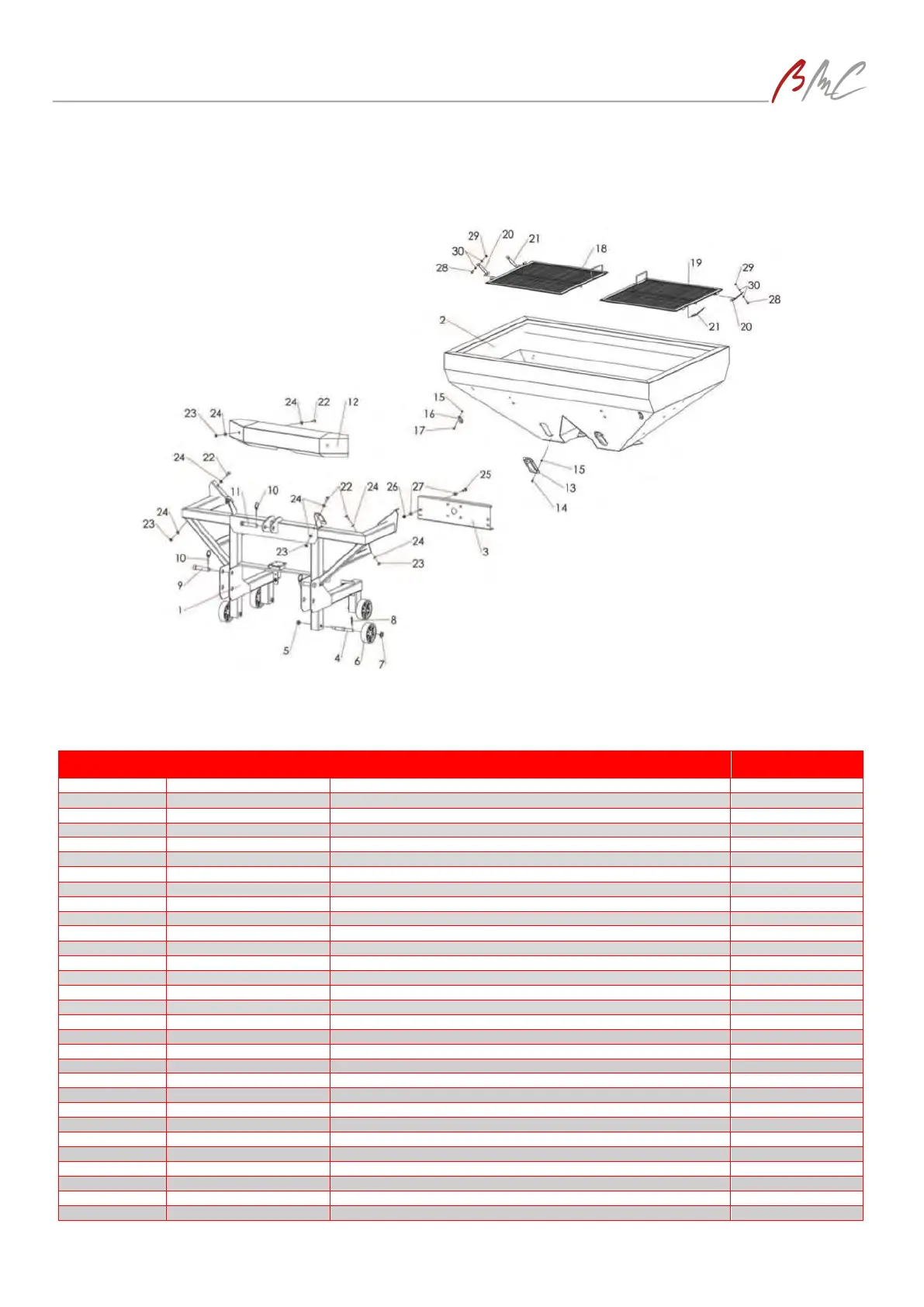

6. Despiece / Break up
PARTE
PART
CÓDIGO BMC
BMC CODE
DENOMINACIÓN
PART NAME
CANTIDAD
QUANTITY
1
SY-001.CH
Chasis / Chassis
1
2
SY-002.CH
Tolva / Hopper
1
3
SY-003.CH
Soporte del grupo / Gearbox Support
1
4
SY-004.CH
Pasador rueda / Wheel pin
4
5
SY-005.CH
Tuerca M16 / Nut M16
4
6
SY-006.CH
Arandela M16 / Washer M16
4
7
SY-007.CH
Rueda / Wheel
4
8
SY-008.CH
Pasador / Pin
4
9
SY-009.CH
Bulón inferior / Side lever pin
2
10
SY-010.CH
Pasador de anilla / Spring tong
4
11
SY-011.CH
Bulón superior/ Upper pin
1
12
SY-012.CH
Protector / Protector
1
13
SY-013.CH
Visor / Glass Viewer
2
14
SY-014.CH
Tornillo M6x15 / Screw M6x15
8
15
SY-015.CH
Tuerca de plástico / Plastic nut
8
16
SY-016.CH
Tuerca M6 / Nut M6
4
17
SY-017.CH
Tornillo M6x15 / Screw M6x15
4
18
SY-018.CH
Criba derecha / Right Sieve
1
19
SY-019.CH
Criba izquierda / Left Sieve
1
20
SY-020.CH
Bisagra 1 / Hinge 1
2
21
SY-021.CH
Bisagra 2 / Hinge 2
1
22
SY-022.CH
Tornillo M10x25 / Screw M10x25
10
23
SY-023.CH
Tuerca M10 / Nut M10
10
24
SY-024.CH
Arandela M10 / Washer M10
10
25
SY-025.CH
Tornillo M12x30 / Screw M12x30
4
26
SY-026.CH
Tuerca M12 / Nut M12
4
27
SY-027.CH
Arandela M12 / Washer M12
4
28
SY-028.CH
Tuerca M8 / Nut M8
2
29
SY-029.CH
Tornillo M8x20 / Screw M8x20
2
30
SY-030.CH
Arandela M8 / Washer M8
4
