5
2. Game operation
2.1 Gun consoles
When a coin is inserted, and the gun trigger is squeezed, infra red light is emitted from the
gun barrel.
2.2 Main Cabinet
Each target has an infra red detector, which senses a beam of light from the gun. The target
operates a relay on the timer module, which in turn sends a signal to the target animation.
The length of time a target operates is adjustable on the timer module, but this is factory set
and should not need to be altered.
2.3 Target descriptions
2.3.1 Stars and Spirals
There are 2 stars and one spiral, which spin when they are hit. They are all driven by
electric motors.

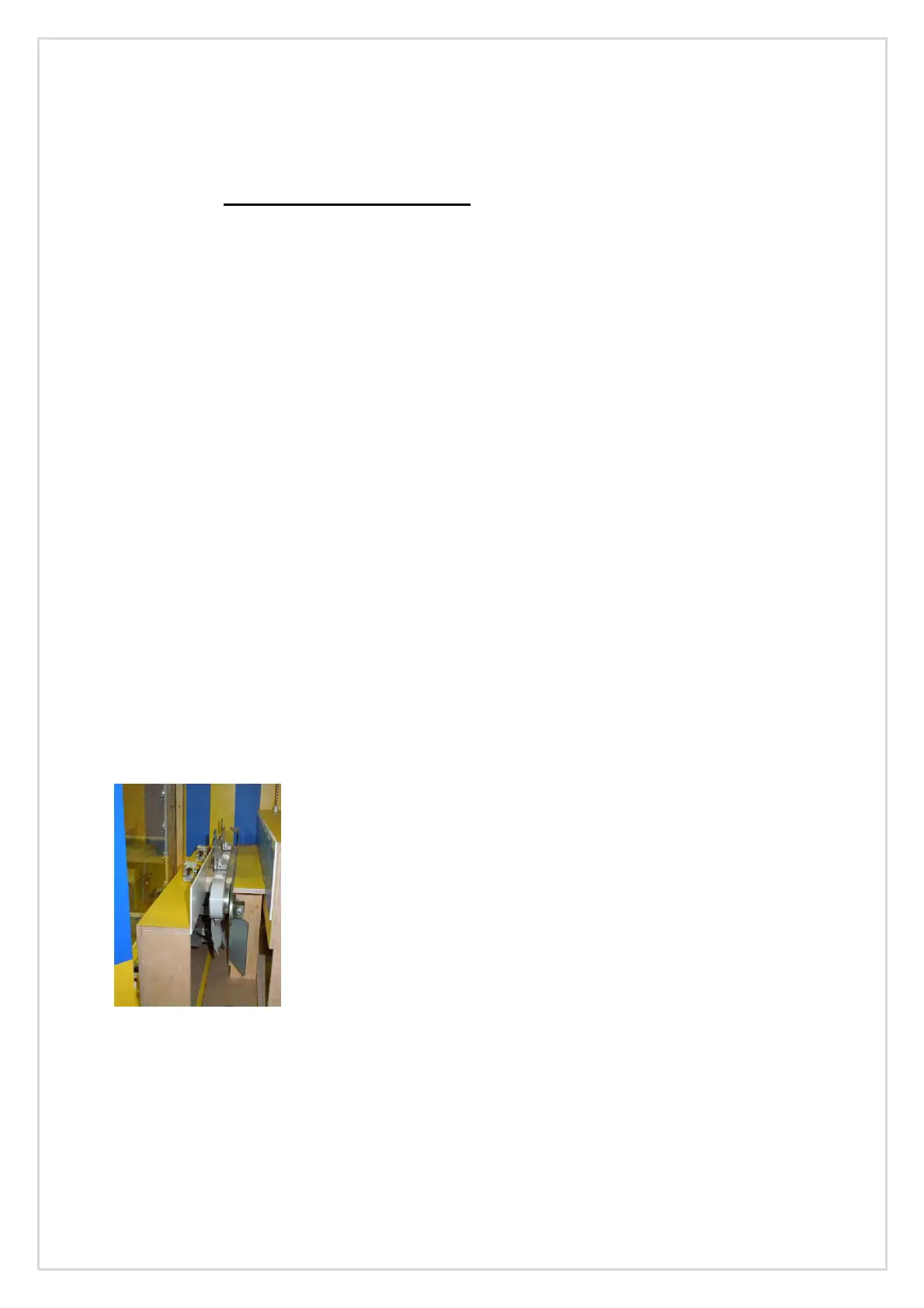

2.3.2 Ducks
The profile ducks are fastened to a toothed timing belt, driven
by a geared motor which runs continuously when the machine is connected to a power
supply. Two electrical solenoids are spaced at equal intervals in front of the ducks, and trip
the ducks over when the target is hit and the tripping mechanism is in line with a duck.
