With an emergency wheel:
enlarging the cargo area
Concept
The emergency wheel and any related compo‐
nents can be temporarily removed to enlarge the
cargo area.
Removing the emergency wheel
and the storage compartments

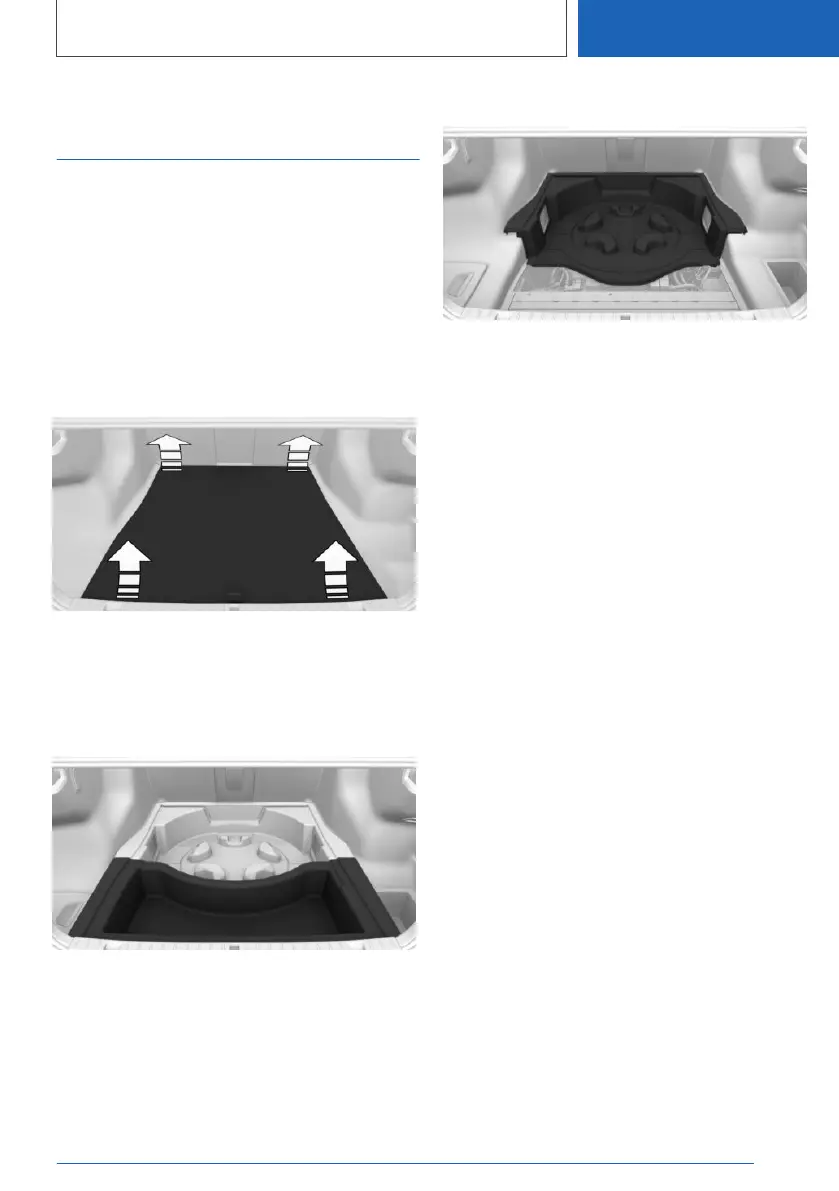

1. To remove the cargo area floor, pull it upward
directly behind the rear backrests.
2. Remove tool holder and emergency wheel,
refer to page 345.
3. Loosen the ratchet strap from the lashing
eyes.
4. Remove the storage compartment.
5. Remove the storage well.
6. Insert the cargo floor panel.
Inserting the emergency wheel
and the storage compartments
Proceed in reverse order to insert the emergency
wheel and the storage compartments.
Seite 301
Cargo area
CONTROLS
301
