NOTE
The mounting points for the upper retaining
straps of child restraint systems are only inten‐
ded for these retaining straps. The mounting
points can be damaged if other objects are at‐
tached. There is a risk of material damage. Only
attach child restraint systems to the upper
mounting points.
Mounting points
Symbol Meaning
The corresponding symbol
shows the mounting point for
the upper retaining strap.
Depending on the equipment version, there are
two or three mounting points for the upper re‐
taining strap of ISOFIX child restraint systems.

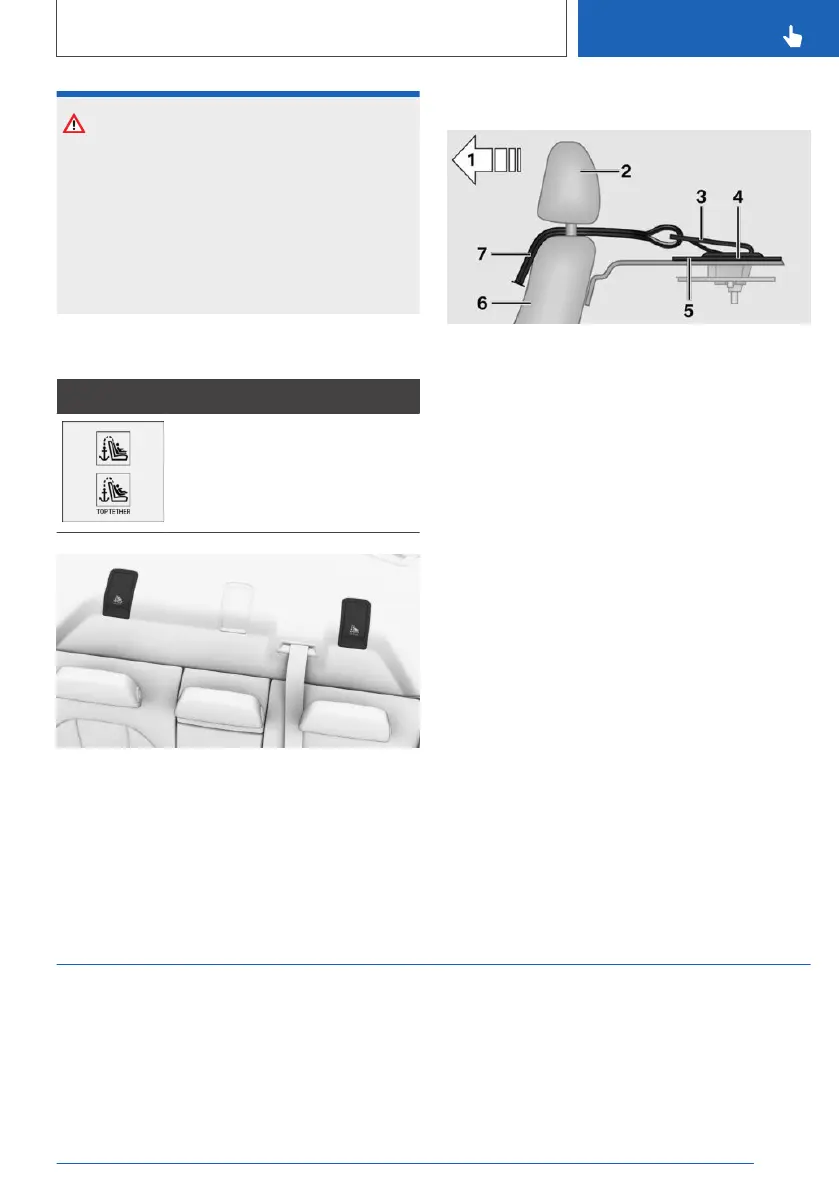

Routing the retaining strap
1 Direction of travel
2 Head restraint
3 Hook for the upper retaining strap
4 Mounting point
5 Rear parcel shelf
6 Seat backrest
7 Upper retaining strap
Attaching the upper retaining
strap to the mounting point
1.
Open the cover of the mounting point.
2. Raise the head restraint.
3. Guide the upper retaining strap between the
mounts or along both sides of the head re‐
straint to the mounting point.
4. Attach the hook of the retaining strap to the
mounting point.
5. Tighten the retaining strap by pulling it firmly
down.
6. Lower and lock the head restraint in place as
necessary.
Suitable seats for child restraint systems
Overview
General
The legal provisions determining which child seat
is permitted for which age and body size may
vary from country to country. Please comply with
the relevant national legal provisions.
Seite 133
Carrying children safely
CONTROLS
133
