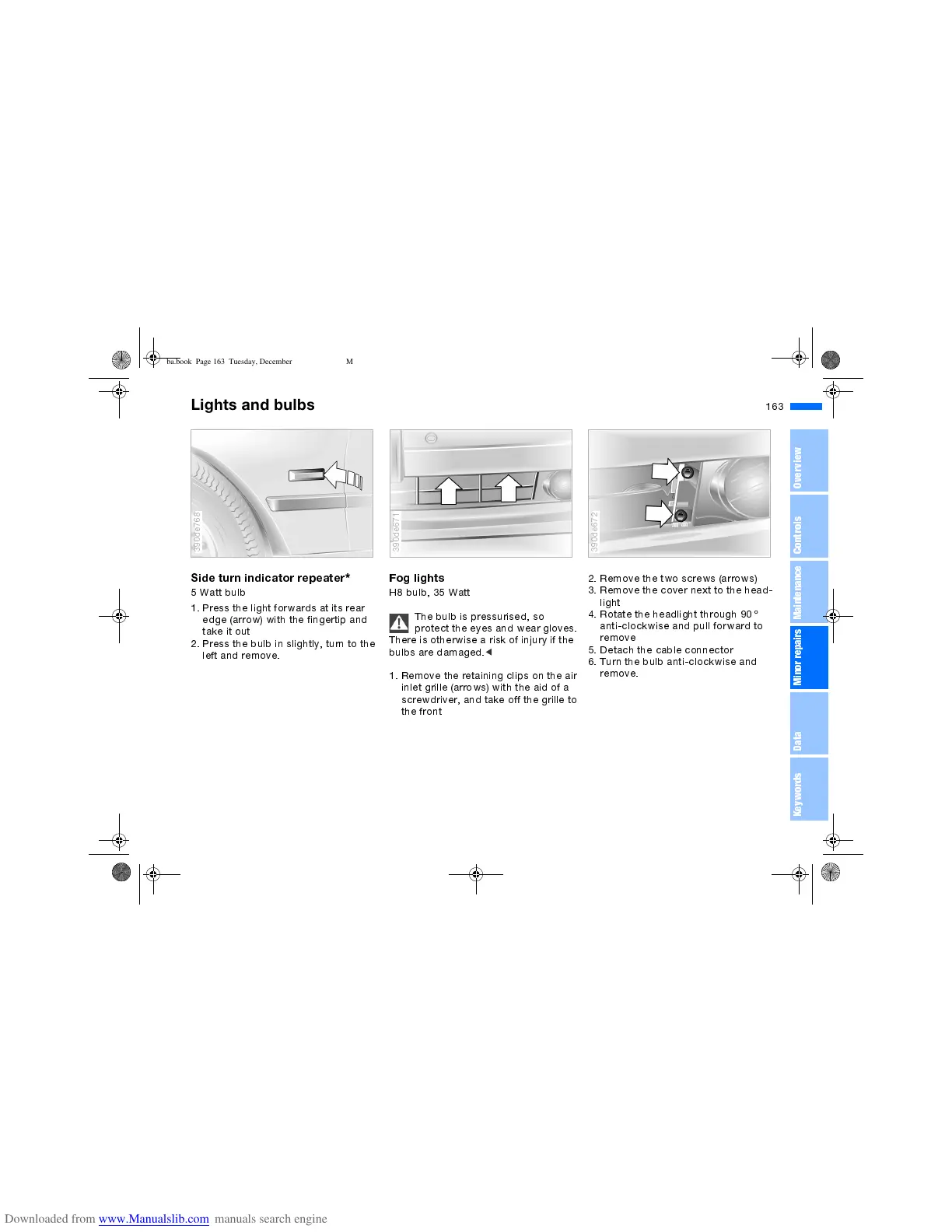

Lights and bulbs
Side turn indicator repeater
*
5 Watt bulb
1. Press the light forwards at its rear
edge (arrow) with the fingertip and
take it out
2. Press the bulb in slightly, turn to the
left and remove.
390de768
Fog lights
H8 bulb, 35 Watt
The bulb is pressurised, so
protect the eyes and wear gloves.
There is otherwise a risk of injury if the
bulbs are damaged.
<
1. Remove the retaining clips on the air
inlet grille (arrows) with the aid of a
screwdriver, and take off the grille to
the front
390de671
2. Remove the two screws (arrows)
3. Remove the cover next to the head-
light
4. Rotate the headlight through 90
3
anti-clockwise and pull forward to
remove
5. Detach the cable connector
6. Turn the bulb anti-clockwise and
remove.
