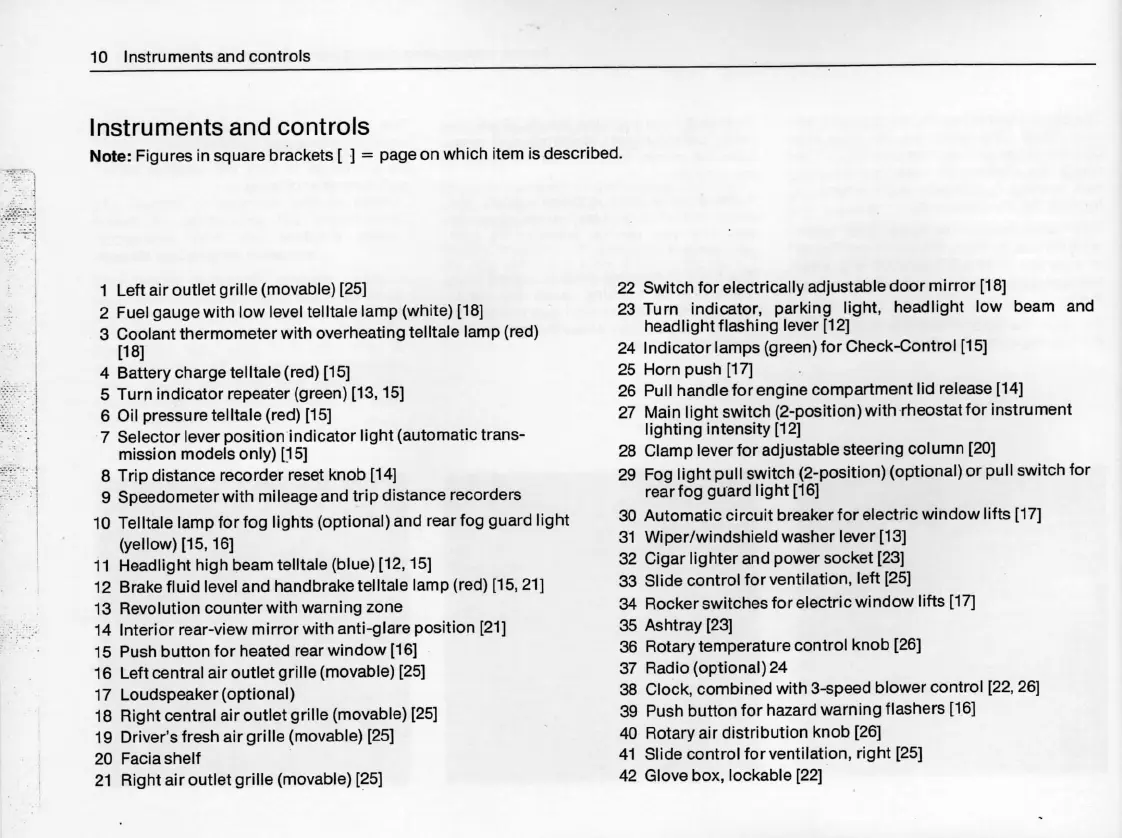

10 lnstruments and controls
lnstruments and controls
Note: Figures in square bràckets [ ] = page on which item is described.
1 Left airoutletgrille (movable) [25]
2 Fuel gauge with low level telltale lamp (white) [18]
3 Coolant thermometer with overheating telltale lamp (red)
[18]
4 Battery charge telltale (red) [15]
5 Turn indicator repeater (green) [13,15]
6 0il pressure telltale (red) [15]
7 Selector lever position indicator light (automatic trans-
mission models only) L15]
8 Trip distance recorder reset knob [14]
9 Speedometerwith mileage and trip distance recorders
10 Telltale lamp for fog lights (optiona[) and rear fog guard light
(yellow) [15,16]
11 Headlight high beam telltale (blue) [12,15]
12 Brake fluid level and handbrake telltale lamp (red) [15, 21]
13 Revolution counterwith warning zone
14 lnterior rear-view mìrror with antii]Iare position [21]
15 Push button for heated rear window [16]
16 Left central air outlet grille (movable) [25]
17 Loudspeaker (optional)
18 Right central air outlet grille (movable) [25]
19 Driver's fresh air gri[Ie (movable) [25]
20 Faciashelf
21 Rightairoutlet grille (movable) [25]
22 Switch for electrically adjustable door mirror [18]
23 Turn indicator, parking light, headlight low beam and
headlight flashing lever [12]
24 lndicator lamps (green) for Check-Control [15]
25 Horn push [17]
26 Pull handle for engine compartment lid release [14]
27 Main light switch (2-posi-tion) with rheostat for instrument
lighting intensity [12]
28 Clamp lever for adjustable steering column [20]
29Feoagr[i#tgEà,jds#t#fosition)(optional)orpullswitchfor
30 Automatic circuit breaker for electric window lifts [17]
31 Wper/windshield washer lever [13]
32 Cigar lighter and power socket [23]
33 Slide control for ventilation, left [25]
34 Rocker switches for electric window lifts [17]
35 Ashtray [23]
36 Rotary temperature control knob [26]
37 Fladio (optional) 24
38 Cloèk, combined with 3épeed blower control [22, 26]
39 Push button for hazard warning flashers [16]
40 Fìotary air distribution knob [26]
41 Slide control forventilation, right [25]
42 Glove box, lockable [22]
