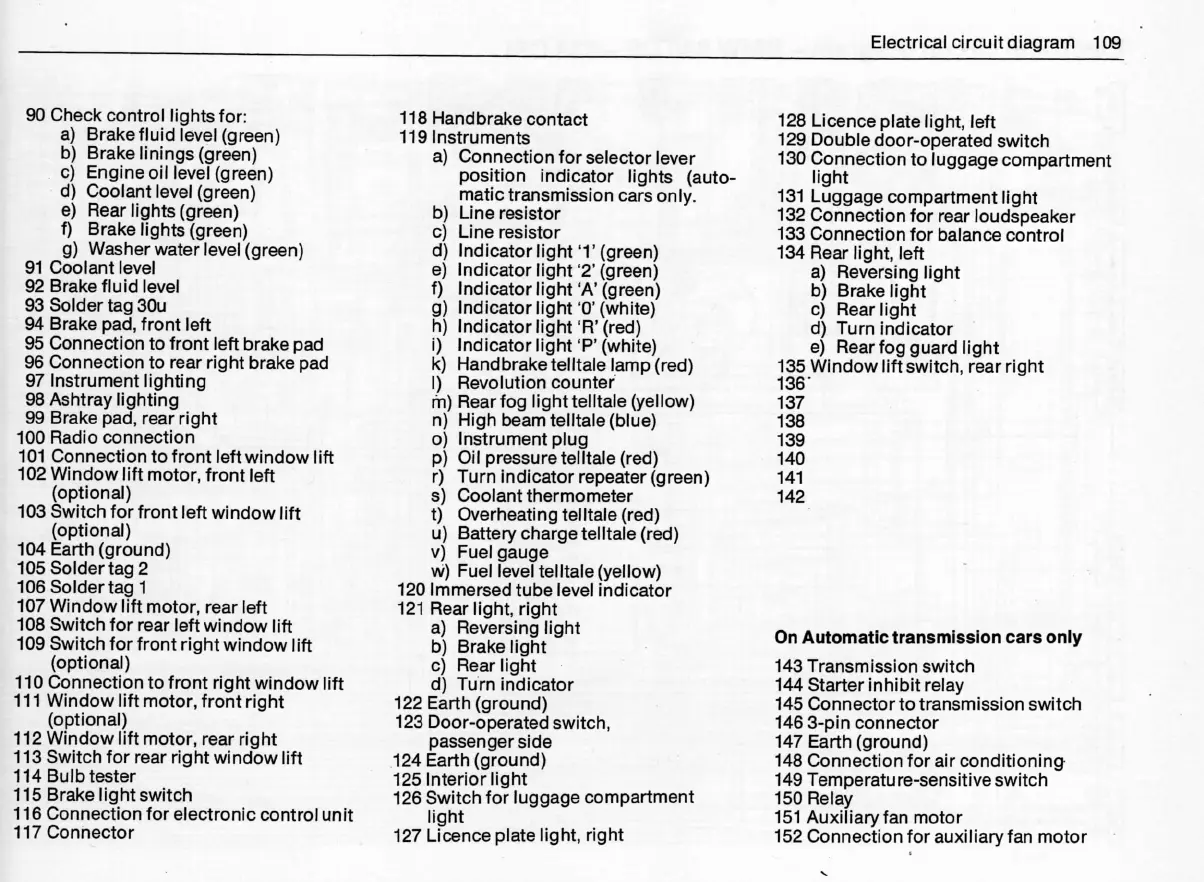

Electrical circuitdiagram 109
90 Check control lights for:
a) Brakefluid level (green)
g) E:agf::i:i,n,%:ég';:enén)
d) Coolant level (green)
3) B:aak:i###:8:ì)
g) Washer water level (green)
91 Coolant level
92 Brake fluid level
93 Solder tag 30u
94 Brake pad, front left
95 Connection to front left brake pad
96 Connection to rear right brake pad
97 lnstrument lighting
gg##:a#idg,hrté:Pright
100 Radio connection
101 Connection to front leftwindow lift
102 Window lift motor, front left
io3S°wpittjc°hnfdo)rfrontieftwindowlift
(Optional)
104 Earth (ground)
105 So lder tag 2
106 Soldertag 1
107 Window lift motor, rear left
108 Switch for rear left window lift
109 Switch for front right window 1 ift
(Optional)
#9&Snndnoe#ftnLoo{àorr#:#j#tdow,jft
(Optional)
112 Window lift motor, rear right
113 Switch for rear right wi ndow lift
114 Bulb tester
115 Brake light switch
116 Connection for electronic control unit
117 Connector
118 Handbrake contact
119 lnstruments
a) Connection for selector lever
:°astit:?rnanjsn£jì=ajto°:c:Psh:n,):Ut°-
b) Line resistor
c) Line resistor
d) lndicatorlight `1' (green)
e) lndicator light `2' (green)
f) lndicator light `A' (green)
g) lndicator light `0' (white)
h) lndicatorlight `R' (red)
i) Indicatorlight `P' (white)
k) Handbrake telltale lamp (red)
1) Revolution counter.
rh) Rear fog light telltale (yellow)
n) High beam telltale (blue)
o) lnstrument plug
p) Oil pressuretelltale (red)
r) Turn indicator repeater (green)
s) Coolant thermometer
t) O\/erheating telltale (red)
u) Battery charge telltale (red)
v) Fuel gauge
w) Fuel level telltale (yellow)
120 lmmersed tube level indicator
121 Rear light, right
a) Reversing light
b) Brake light
c) Flear light
d) Tu'rn indicator
122 Earth (ground)
123 Door-operated switch,
i24È%nshe(nggreorus#f
125 lnterior light
126 Switch for luggage compartment
light
127 Licence plate light, right
128 Licence plate light, left
129 Double door-operated switch
130 Connection to luggage compartment
light
]3£:::::%:io:ro?ar:aT?::#:aker
133 Connection for balance control
134 Rear light, Ieft
a) Reversing light
b) Brake light
c) Rearlight
d) Turn indicator
e) Rearfogguard light
135 Window lift switch, rear right
136.
137
138
139
140
141
142
On Automatic transmission cars only
143 Transmission switch
144 Starter inhibit relay
145 Connector to transmission swi.tch
146 3-pin connector
147 Earth (ground)
148 Connection for air conditioning
149 Temperatu re-sensitive switch
150 Relay
151 Auxiliary fan motor
152 Connection for auxiliary fan motor
\
