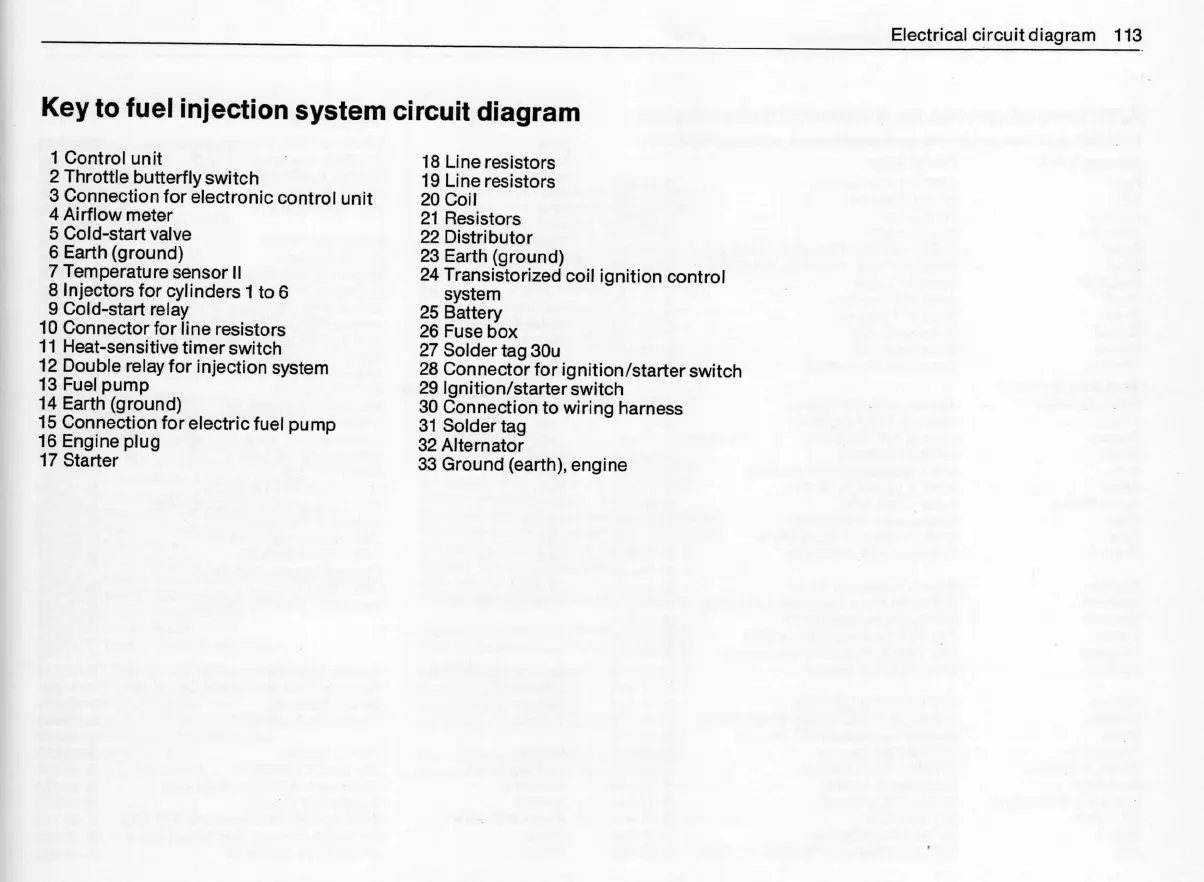

Electrical circuitdiagram 113
Key to fuel injection system circuit diagram
l control unit 18 Line resistors
3 5:rnonft::tpounftfeorrfl:,:#g:ic contro| un„ i3 5ion,? resistors
4 Airflow meter
5 Cold-start valve
6 Earth (ground)
7 Temperature sensor 11
8 lnjectors for cylinders 1 to 6
9 Cold-start relay
10 Connector for line resistors
11 Heat-sensitive timer switch
12 Double relay for injection system
13 Fuel pump
14 Earth (ground)
15 Connection for electric fuel pump
16 Engine plug
17 Starter
21 Resistors
22 Distributor
23 Earth (ground)
24 Transistorized cojl ignition control
system
25 Battery
26 Fuse box
27 Solder tag 30u
28 Connector for ignition/starter switch
29 lgnition/starter switch
30 Connection to wiring harness
31 Solder tag
32 Alternator
33 Ground (earth), engine
