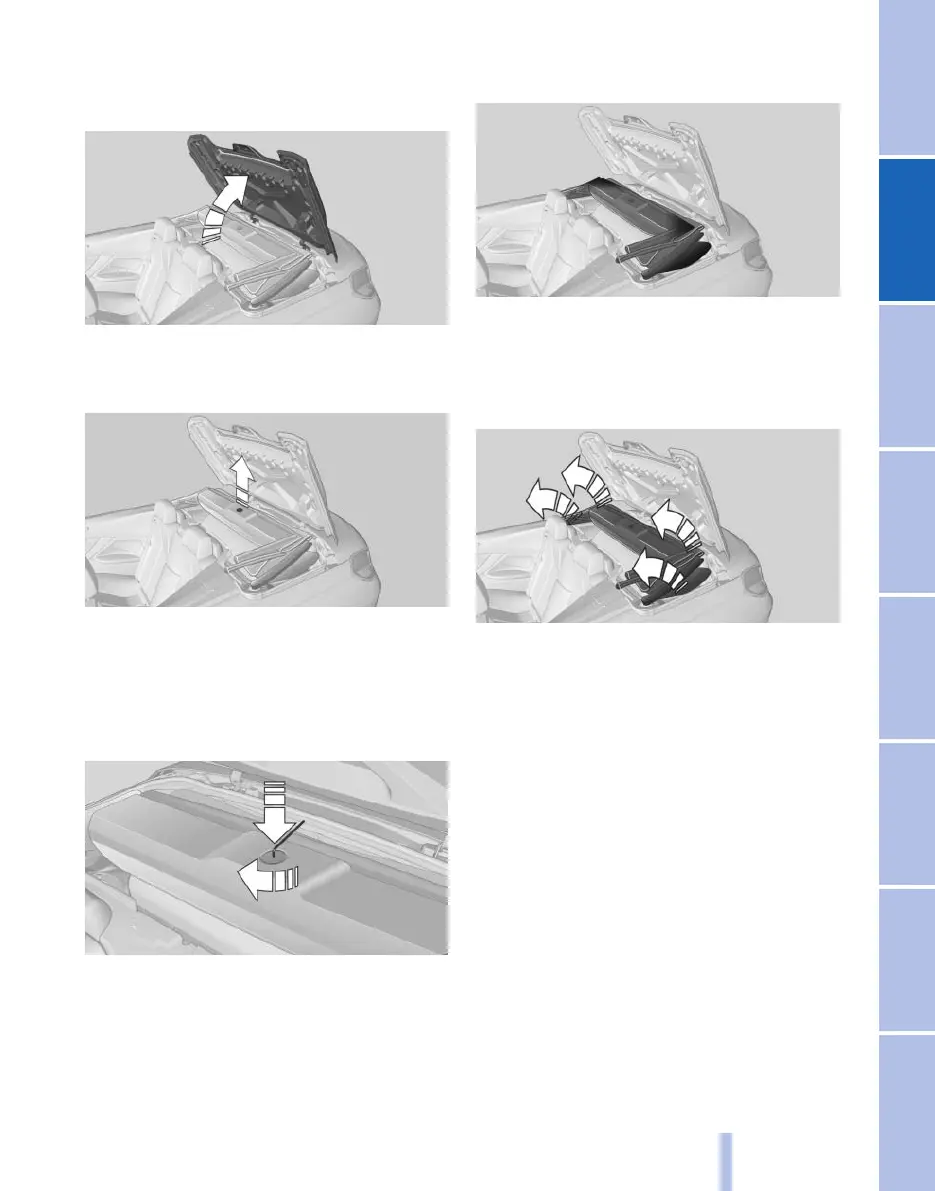

1. Grasp the convertible top well storage cover
on
both sides, swing it up until it reaches its
limit position and hold it in place.
2. Remove the cover in the center of the front
convertible top frame. If necessary, use a
screwdriver to help with this.
3. Insert the convertible top tool into the con‐
vertible top lock. Turn the convertible top
tool
approx. one half turn clockwise to open
the convertible top lock. Be careful not to
damage the convertible top fabric. Remove
the convertible top tool.
4. On both sides of the vehicle, grasp the front
edge of the convertible top frame with one
hand. With the other hand, grasp the end of
the convertible top on the bottom edge.
Keep the convertible top well storage cover
open, e.g. with your shoulder.
5. Lift out the convertible top and the conver‐
tible
top ends on both sides simultaneously
and swing it forward. When you do this,
make sure that the convertible top ends do
not push against other parts.
