BMW CD43 - Connectivity and Specifications; Antenna and CD Changer Ports; Wiring Harness Pinout; Fuse Specification

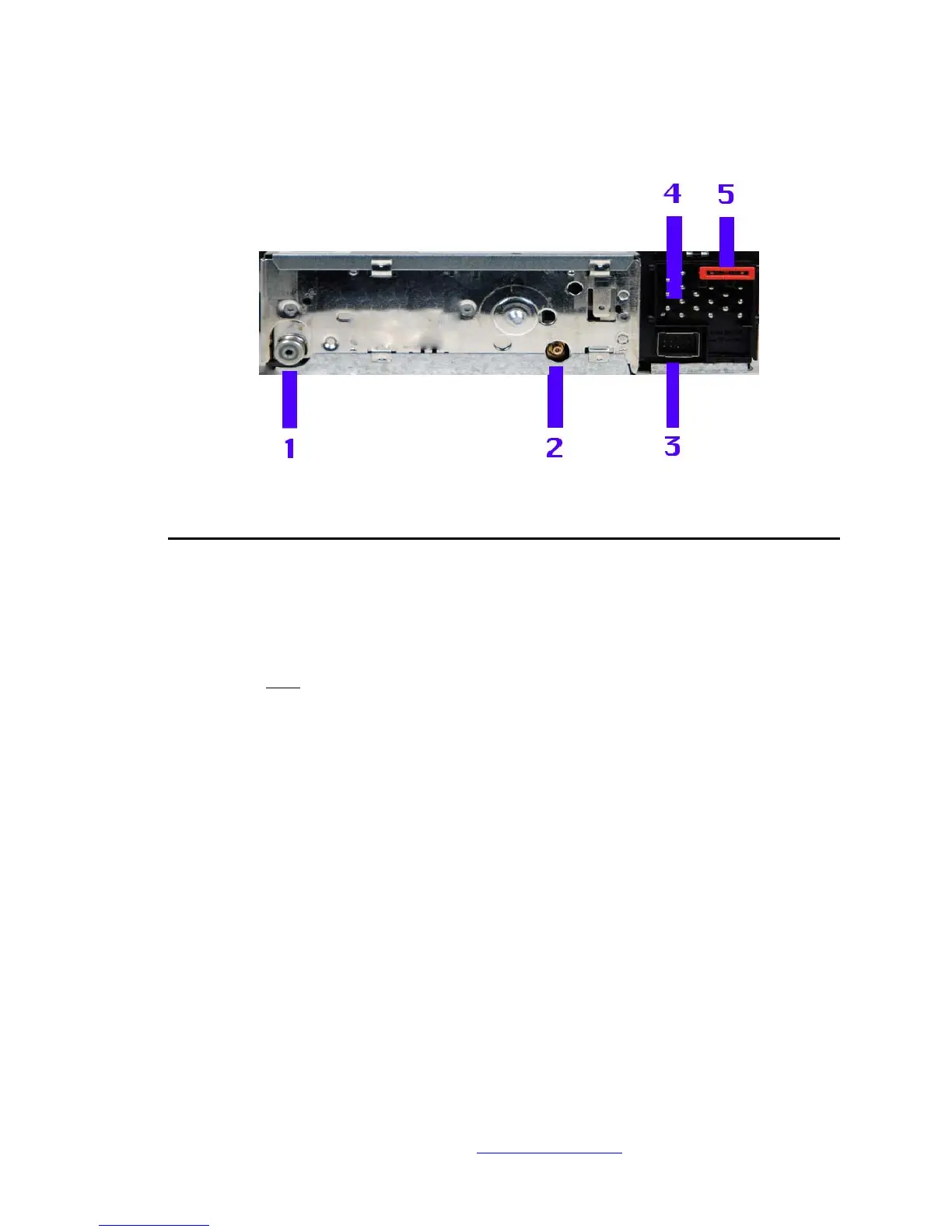

Figure 2
1. Main antenna connection
2. Diversity antenna connection
3. Connection for CD changer AI
4. Connector for:
Pin#
1. L/F+
2. R/F+
3. L/R+
4. Telephone mute
5. IGN+
6. R/R+
7. I-Bus
8. L/F-
9. +12v constant
10. VSS
11. R/F-
12. L/R-
13. ILL
14. R/R-
15. GND
16. REMOTE
17. N/A
5. 10 amp fuse
