E60 Complete Vehicle

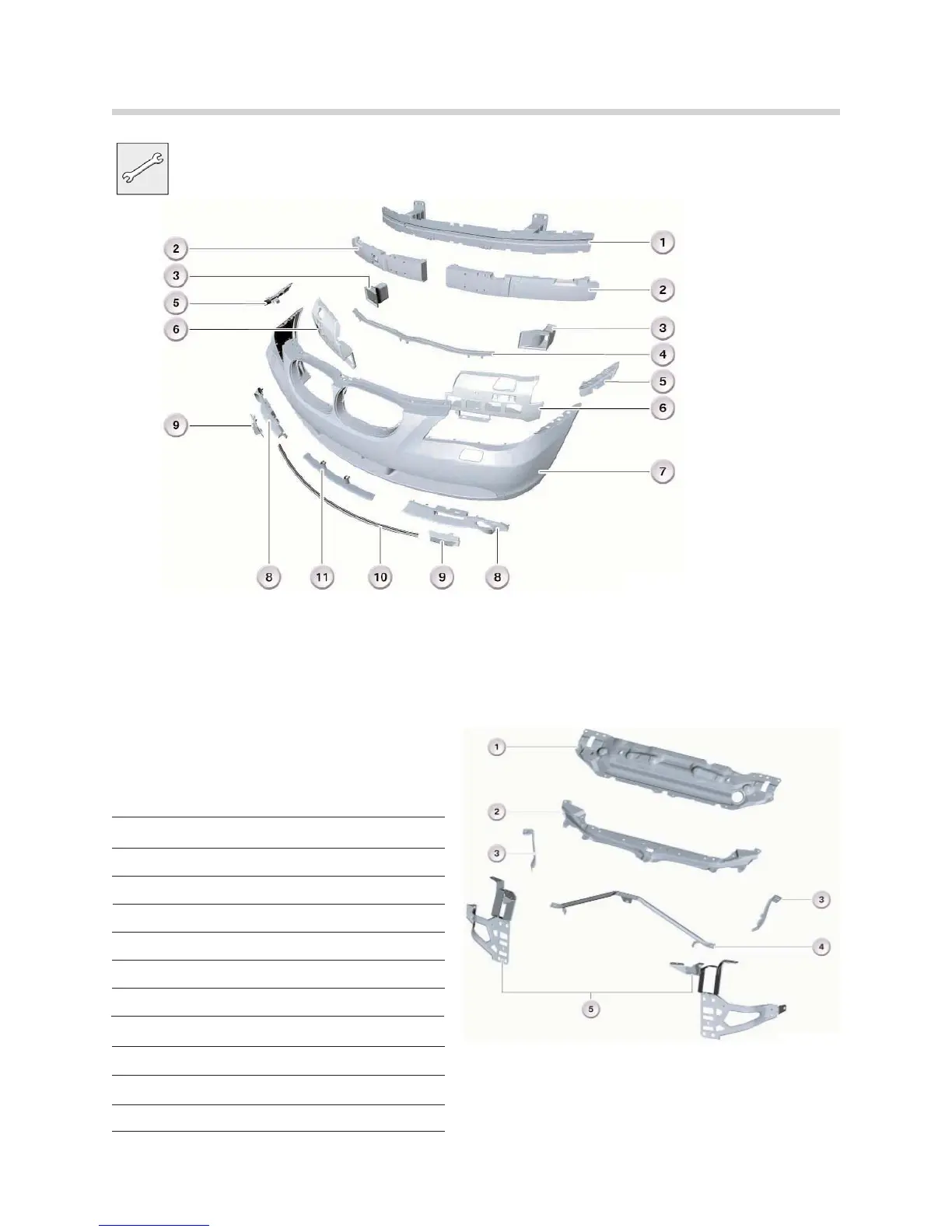

Workshop Exercise - Front Bumper System Removal
1. Bumper cross-member with deformation elements
2. Impact absorber
3. Brake air cowl
4. Hood seal
5. Bumper trim panel side mounting brackets
6. Side bumper inserts
RReeccoorrdd tthhee sstteeppss aanndd ffaasstteenneerrss rreemmoovveedd
dduurriinngg tthhoossee sstteeppss aass yyoouu rreemmoovvee tthhee
ffrroonntt bbuummppeerr ssyysstteemm::
KT-10798
7. Bumper trim panel
8. Side air grilles
9. Blanking plates for the brake air cowls
(model specific)
10. Vibration damper strip
11. Center air grille
KT-10894
1. Top connecting plate 4. "V" brace
2. Top mounting bracket 5. Side supports
for bumper trim panel
3. Lower side panel bracket
