Lamps and bulbs
Tail lamp assembly
Tail lamps: 5 watt bulbs
Remaining bulbs: 21 watts
1 Turn signal indicator white
2 Tail lamps/Side marker lamp,
reflector red
3 Backup lamp white
4 Brake lamps red
In the event of a failure of both
lamps of a tail lamp assembly, the
brake lamp assumes the function of the
tail lamps.<
394us102
1 Use the upper handle to fold down
the side panel in the luggage com-
partment.
2 Turn the bulb holder's release knob
to the left (arrow) and remove the
holder.
3 Apply gentle pressure to the bulb
while turning it to the left to remove.

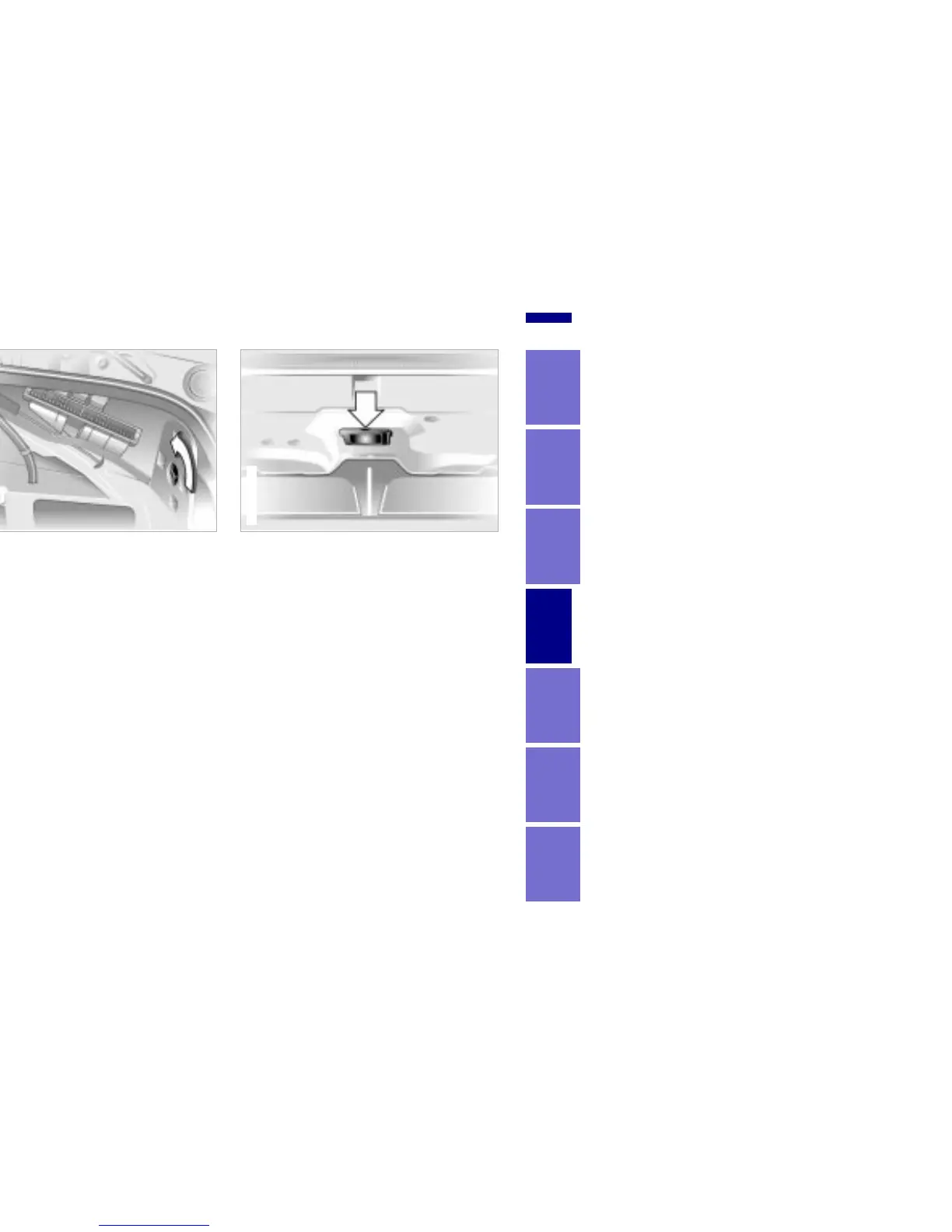

394de103
Center (high-mount) brake lamp*
21 watt bulb
1 Open the luggage compartment lid.
2 Unclip the cover panel (on the under-
side of the package tray) with a
screwdriver (arrow).
3 Turn the bulb holder to the left and
remove.
4 Apply gentle pressure to the bulb
while turning it to the left to remove.
