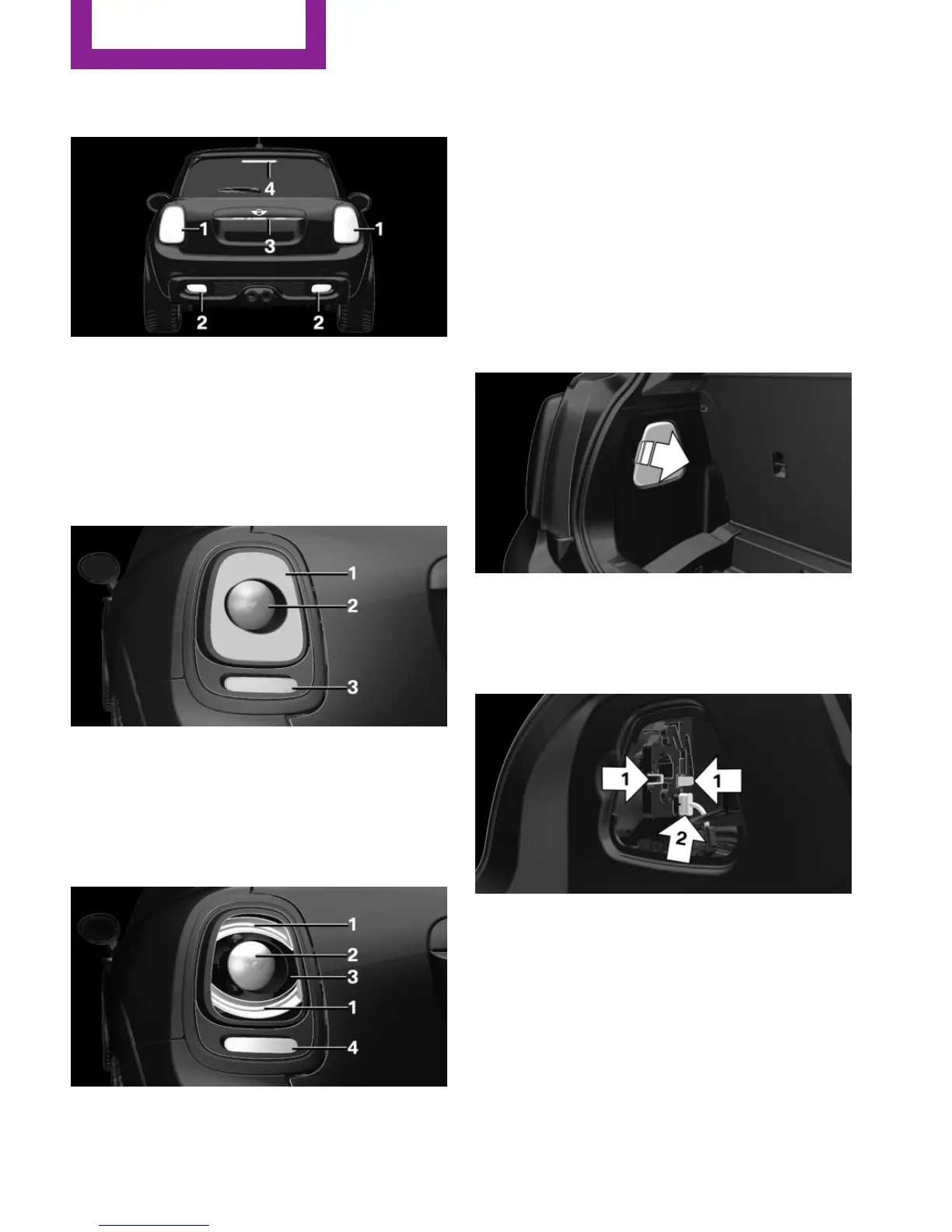

Vehicle with two rear fog lights
1 Side tail lights
2 Rear fog lights
3 License plate lamp
4 Third brake lamp
Side tail lights
1 Brake lights/tail lights
2 Turn signal
3 Reversing lights
Side LED tail lights
1 Tail lights
2 Turn signal
3 Brake light
4 Reversing lights
Side tail lights
Follow the general instructions on lights and
bulbs, refer to page 200.
Bulbs: P21W
1. Open the tailgate, refer to page 27.
2. Remove left or right cover.
3. Through the opening, loosen the plug con‐
nector, arrow 2 on the bulb holder.
Press the latches together, arrows 1, and
remove the bulb holder.
4. Remove the bulb holder from the opening.
5. Press the defective bulb gently into the
socket, turn counterclockwise and remove.
▷ Arrow 1: brake lights/tail lights
▷ Arrow 2: turn signal
