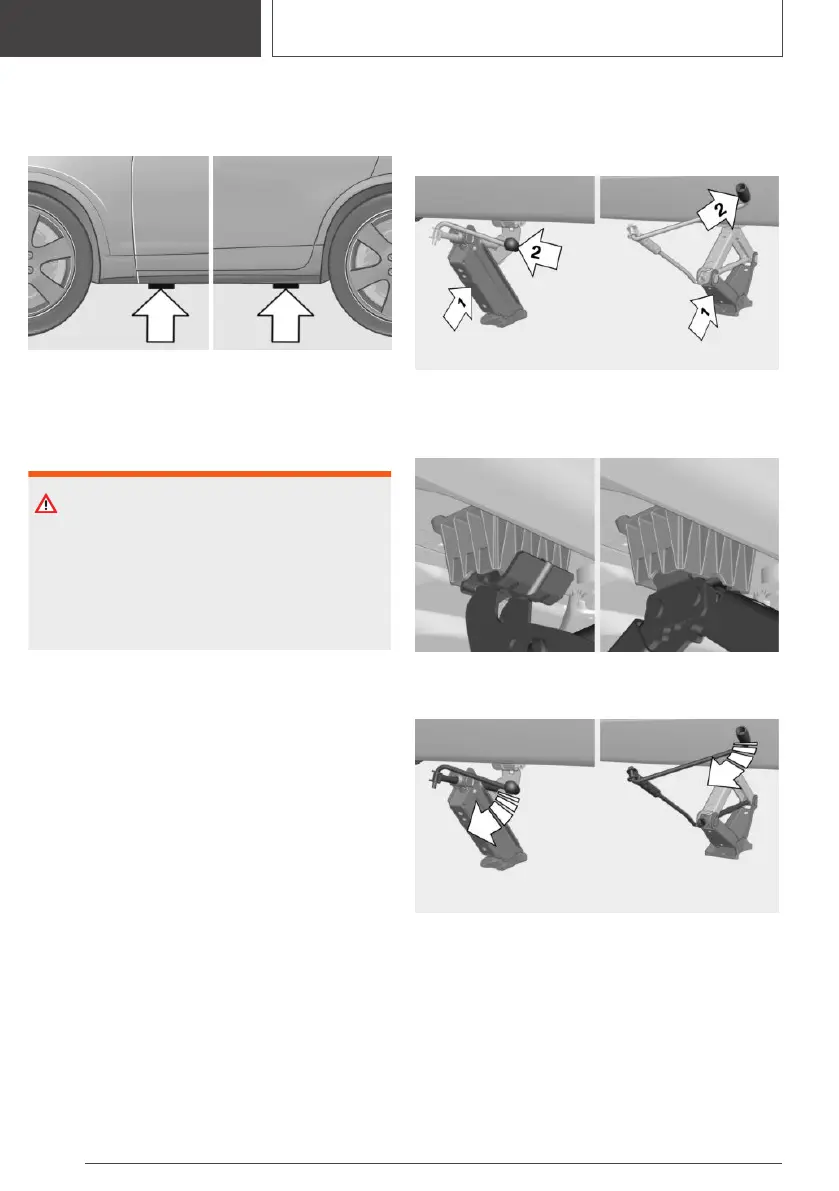

Jacking points for the vehicle
jack
The jacking points for the vehicle jack are lo‐
cated at the indicated positions.
Jacking up the vehicle
Warning
Hands and fingers can be jammed when using
the vehicle jack. There is a risk of injury. Com‐
ply with the described hand position and do not
change this position while using the vehicle
jack.
1.
Hold the vehicle jack with one hand, arrow 1,
and grasp the vehicle jack crank with your
other hand, arrow 2.
2. Insert the vehicle jack into the rectangular re‐
cess of the jacking point closest to the wheel
to be changed.
3. Extend the vehicle jack by turning the vehicle
jack crank or lever clockwise.
4. Take your hand away from the vehicle jack as
soon as the vehicle jack is under load and
continue turning the vehicle jack crank or
lever with one hand.
