Depending on the equipment
version: side protection
Concept
The system warns of obstacles on the side of
the vehicle.
General information
This function may not be available. Contact your
authorized dealer’s service center or another
qualified service center as to whether this addi‐
tional function is currently in your vehicle or when
it can be installed in your vehicle in the future.
The system uses the ultrasound sensors of PDC
and parking assistant.

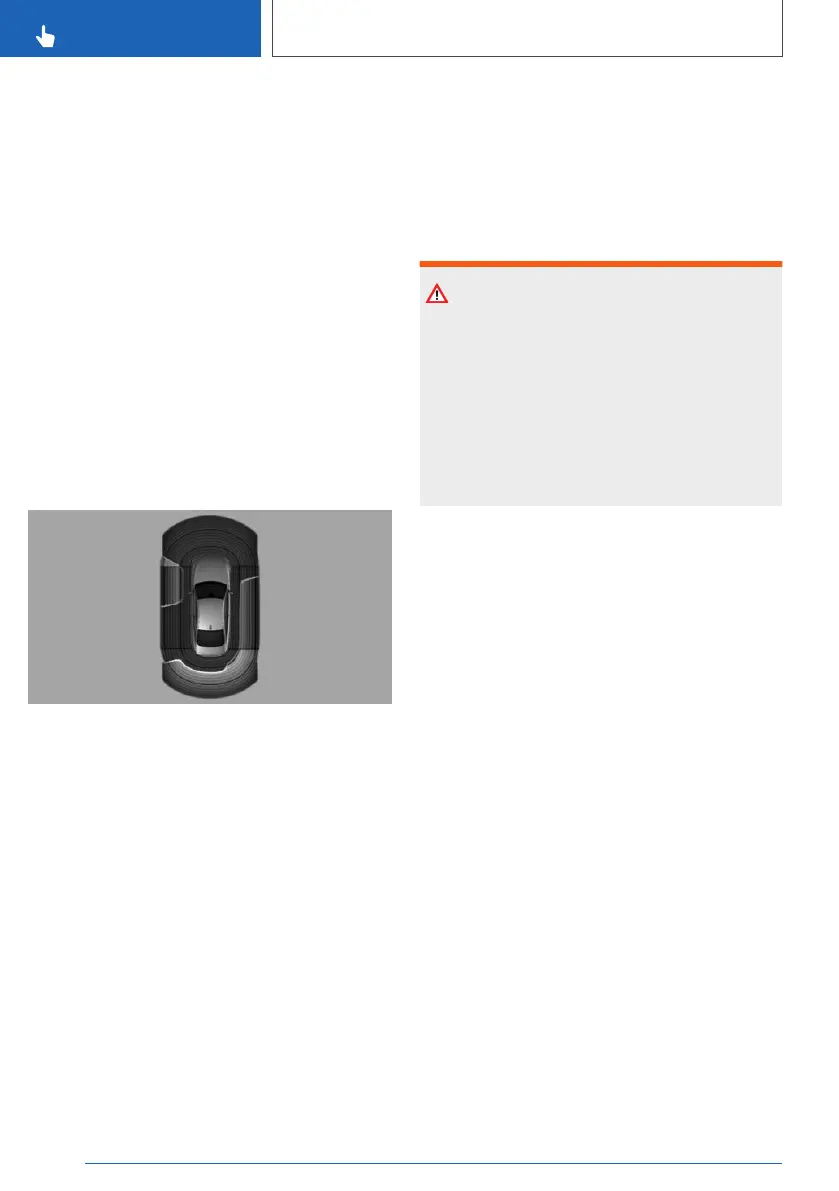

Display
To protect the sides of the vehicle, obstacle
markings are displayed on the sides of the vehi‐
cle.
▷ Color markings: warning against detected ob‐
stacles.
▷ Gray markings, hatched area: no obstacles
were detected.
▷ No markings, black area: the area next to the
vehicle was not yet captured.
Limits of side protection
The system only displays stationary obstacles
that were previously detected by sensors while
passing them.
The system does not detect whether an obstacle
moves later on. If the vehicle is stationary, the
markings are shown in black after a certain time.
The area next to the vehicle must be newly cap‐
tured.
System limits
Safety information
Warning
The system is designed to operate in certain
conditions and circumstances. Due to condi‐
tions or other factors, the system may not re‐
spond. There may be a risk of accident or risk
of damage to property. Actively intervene as
warranted. Refer to the information in this Own‐
er’s Manual regarding the scope of the sys‐
tem’s operation and limitations.
Limits of ultrasonic measurement
Ultrasonic measurements might not function in
the following situations:
▷ For small children and animals.
▷ For persons with certain clothing, for instance
coats.
▷ With external interference of the ultrasound,
for instance from passing vehicles or loud
machines.
▷ When sensors are dirty, iced over, damaged
or out of position.
▷ Under certain weather conditions, e.g., high
relative humidity, wet conditions, snowfall,
cold, extreme heat, or strong wind.
▷ With tow bars and trailer couplings of other
vehicles.
▷ With thin or wedge-shaped objects.
▷ With moving objects.
▷ With elevated, protruding objects such as
ledges.
▷ With objects with corners, edges, and
smooth surfaces.
