your black lead still in the kick panel, probe the suspected wire
with the red lead of the LED tester. With the brake pedal at rest
the LED tester should be extinguished. While watching the
tester, depress the brake pedal. The LED tester should illumi-
nate. Once you have located the correct brake wire, strip a small
portion of insulation off this wire and solder the small BROWN
(H1/3) wire on the main harness to it and wrap the connection
with electrical tape.

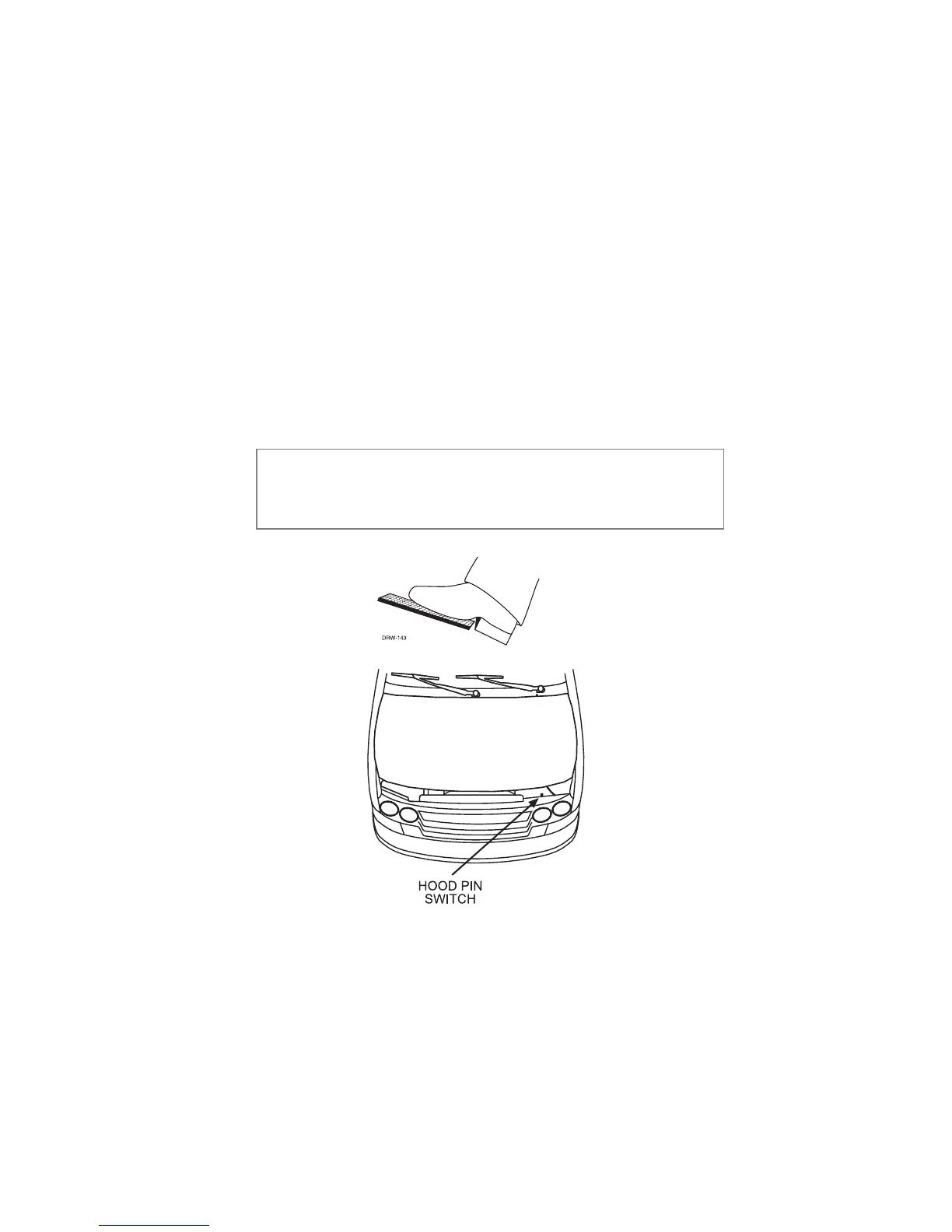

Installing the hood pin switch requires drilling a ¼-inch hole in the
metal lip under the hood. Choose a location that will allow the pin
switch to be depressed when the hood is closed. The pin switch has
a spade connector on the bottom for the wire connection.
important! This wire
MMUUSSTT
be connected Do not use
the vehicle until you confirm the operation of the brake
shutdown.
