22 Operation & Maintenance Manual
331/331E/334 Excavator
ATTACHMENTS (Using the X–Change System)
(Cont’d)
Installing Bucket or Attachment
Never use attachments or buckets which are
not approved by Bobcat. Buckets and
attachments for safe loads of specified
densities are approved for each model.
Unapproved attachments can cause injury or
death.
W–2052–0100

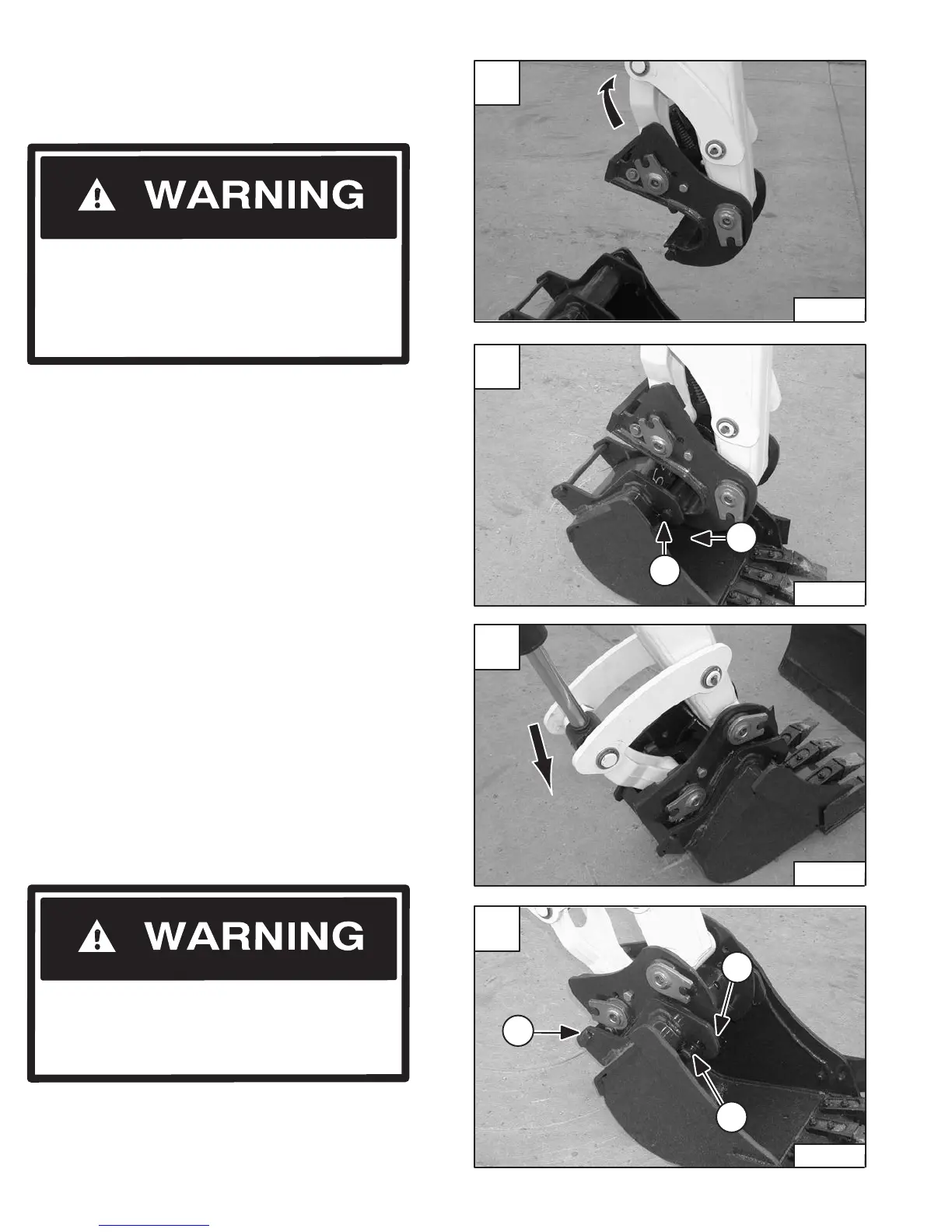

Fully retract the bucket cylinder to release the latch on the
X–Change [A].
Move the arm toward the bucket.
Raise the boom until the pins (Item 1) [B] engage the hooks
(Item 2) [B] on the bucket.
Lift the boom and extend the bucket cylinder until the
bucket is in the position shown [C].
Lower the boom until the hooks (Item 1) [D] of the bucket
disengage the pins (Item 2) [D] of the X–Change and the
plate (Item 3) [D] engages in the bucket crossmember.
Keep all bystanders 20 feet (6 m) away from
equipment when operating. Contact with
moving parts, a trench cave–in or flying objects
can cause injury or death.
W–2119–0788
After the installation of the bucket, lift the boom
approximately three feet and fully extend and retract the
bucket cylinder to ensure the bucket is securely attached
to the X–Change.
