LIFTING THE EXCAVATOR
Swing the upper structure so that the boom and arm are at
the opposite end as the blade [A].
Fully extend the cylinders of the bucket, arm & boom so that
the excavator is in the position as shown [A].
Raise the blade all the way.
Put the all control levers in neutral .
AVOID INJURY OR DEATH
• Use a lifting fixture with sufficient capacity for
the weight of the excavator plus any added at-
tachments.
• Maintain center of gravity and balance when
lifting.
• Do not swing boom or upperstructure. En-
gage the swing locking lever.
• Never lift with operator on machine.
W–2202–0595

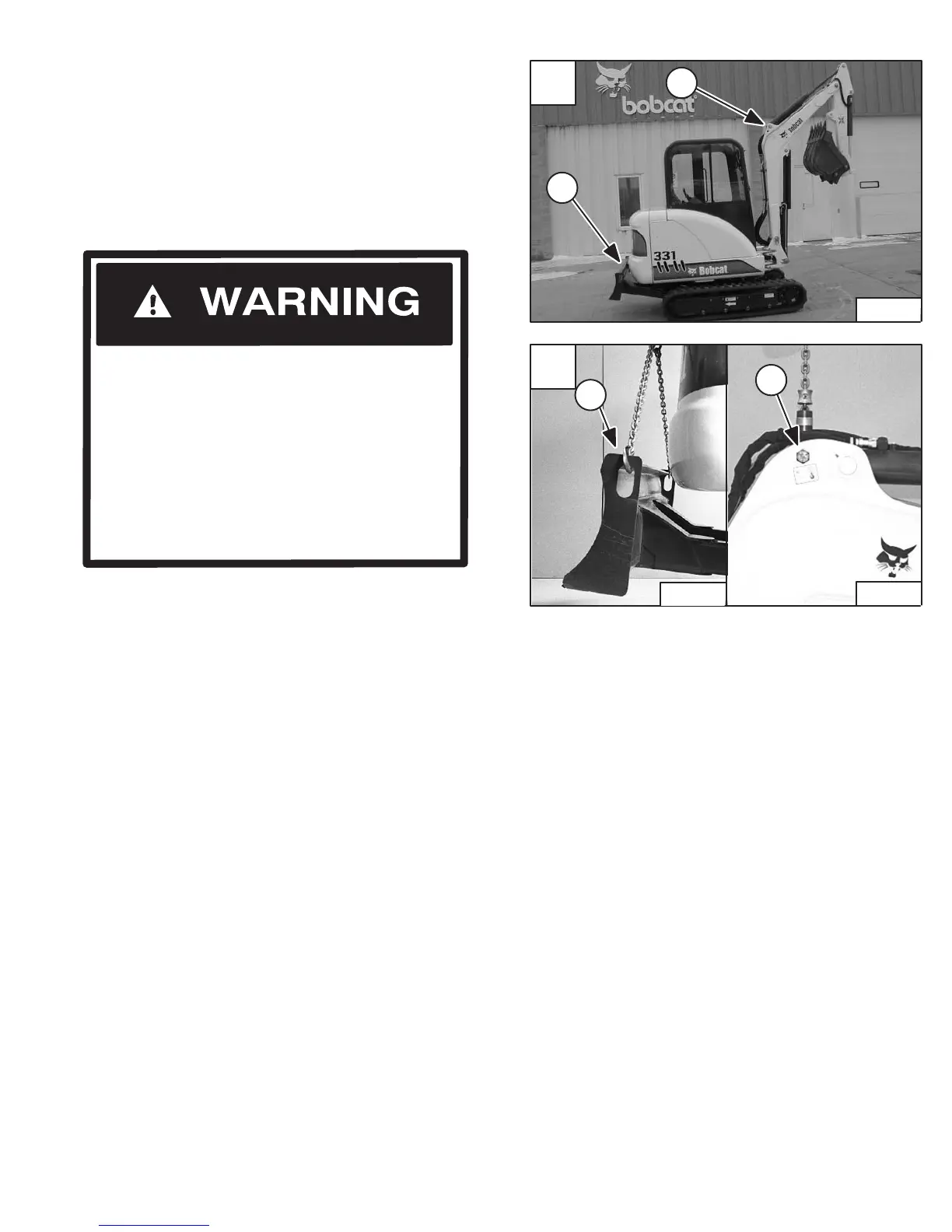

Fasten chains to the ends of the blade (Item 1) [A] & [B]
and up to a lifting fixture above the canopy/cab. The lifting
fixture must extend over the sides of the canopy/cab to
prevent the chains from hitting the ROPS/TOPS.
Install a 1 inch (25mm) bolt and nut (Grade 5 or 8) through
the holes at the top of the boom (Item 2) [A] & [B]. Fasten
a chain from the bolt to the lift fixture.
