LUBRICATION OF THE HYDRAULIC EXCAVATOR
(Cont’d)

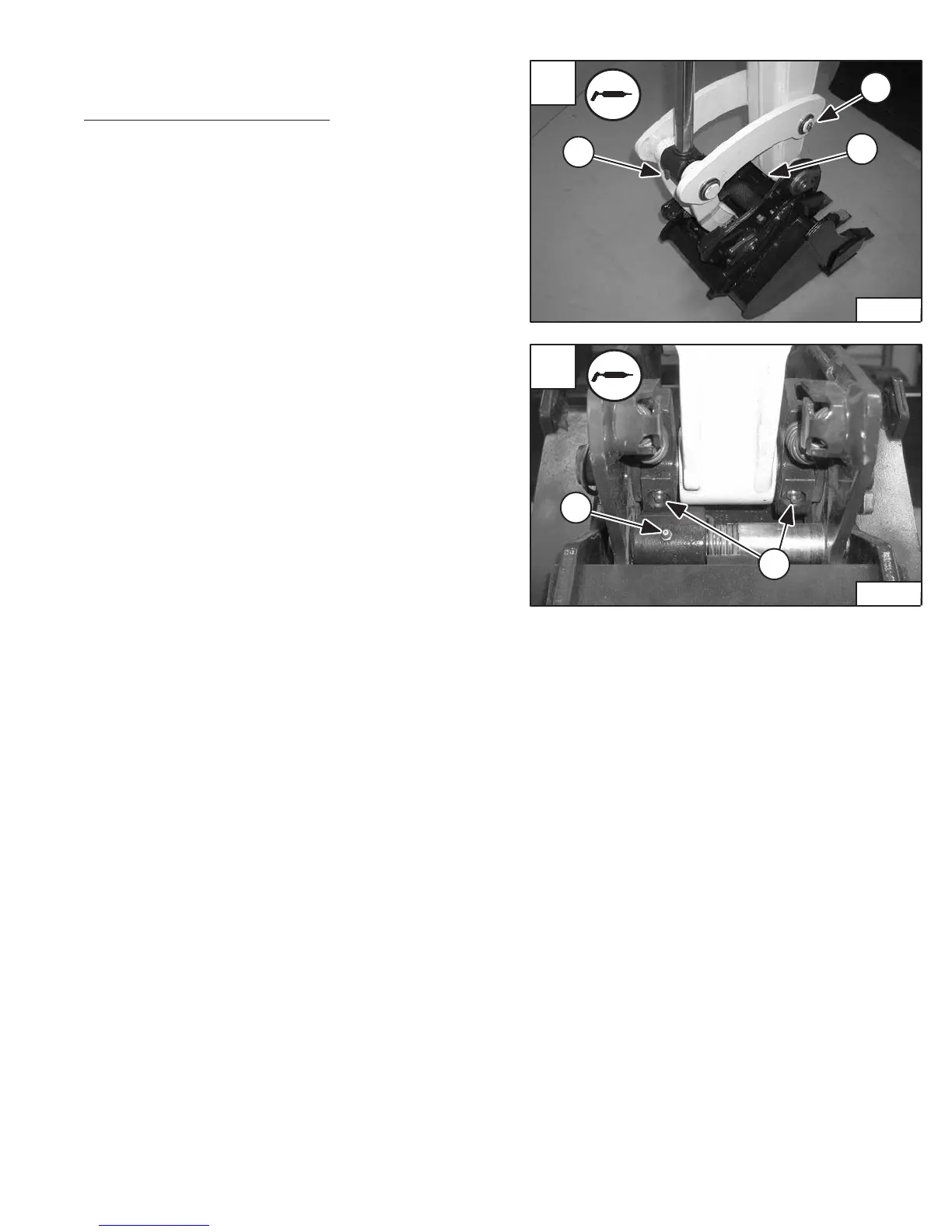

Ref. Description (# of Fittings)
17. Bucket Cylinder Rod End (1) [A].
18. Bucket Link Pins (1) [A].
19. Bucket / Arm Pivot (1) [A].
20. X–Changet Latch (1) [B]
21. X–Changet Pivot Pin (2) [B].
22. (Not shown) Apply grease to slides on extendable
arm (If Equipped).
