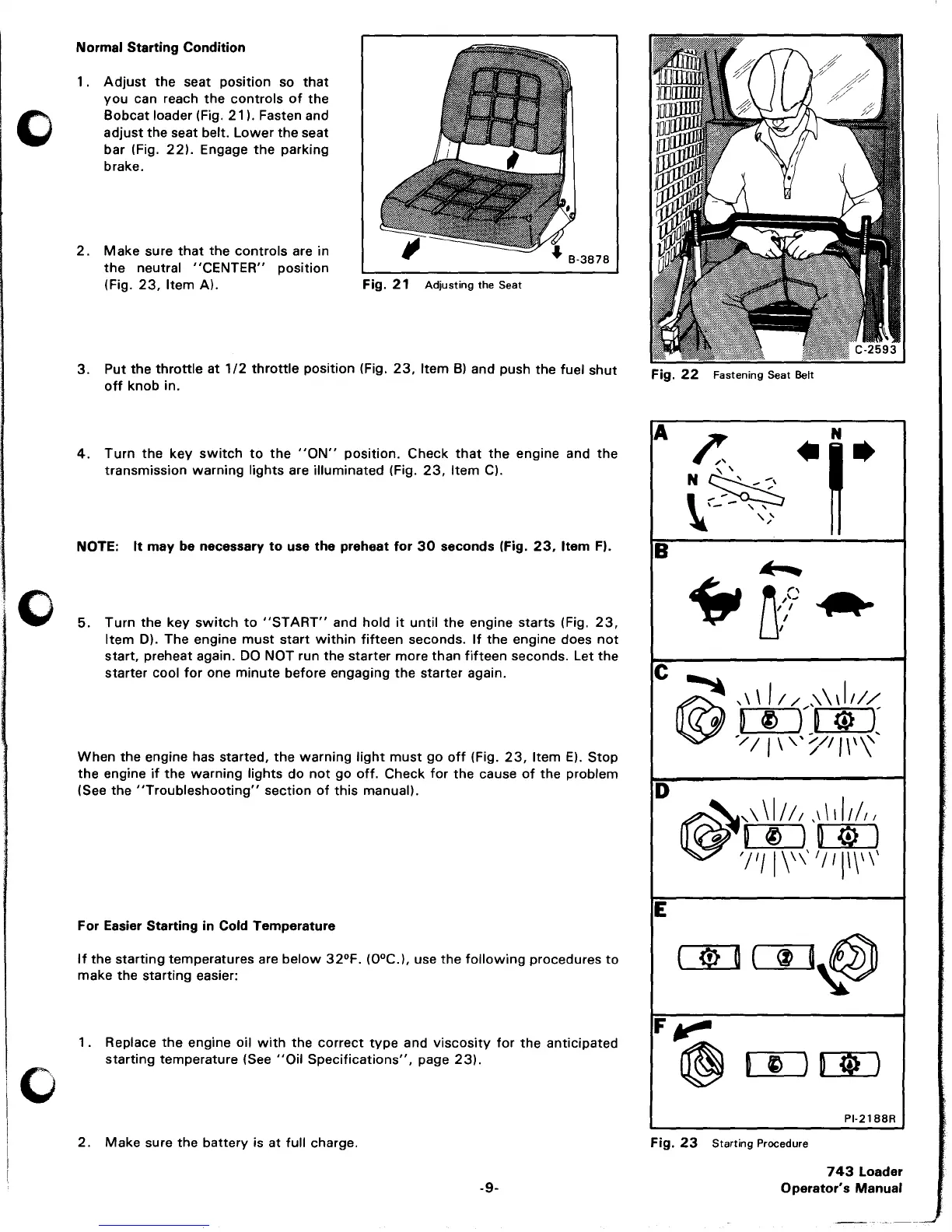

Normal Starting Condition
1. Adjust the seat position so that
you can reach the controls of the
Bobcat loader (Fig. 21). Fasten and
adjust the seat belt. Lower the seat
bar (Fig. 22). Engage the parking
brake.
2. M ake sure that the controls are in
the neutral "CENTER" position
(Fig. 23, Item A).
Fig.
21 Adjusting the Seat
3. Put the throttle at 1/2 throttle position (Fig. 23, Item B) and push the fuel shut
off knob in.
4. Turn the key switch to the "ON" position. Check that the engine and the
transmission warning lights are illuminated (Fig. 23, Item C).
Fig.
22 Fastening Seat Belt
A
N
~ .. ~ ..
, '
N '_-,
~~
NOTE: It may be necessary to use the preheat for 30 seconds (Fig. 23, Item F). B
5. Turn the key switch to "START" and hold it until the engine starts (Fig. 23,
Item D). The engine must start within fifteen seconds. If the engine does not
start, preheat again. DO NOT run the starter more than fifteen seconds. Let the
starter cool for one minute before engaging the starter again.
When the engine has started, the warning light must go off (Fig. 23, Item E). Stop
the engine if the warning lights do not go off. Check for the cause of the problem
(See the "Troubleshooting" section of this manual).
For Easier Starting in Cold Temperature
If the starting temperatures are below 32°F. (O°C.), use the following procedures to
make the starting easier:
1. Replace the engine oil with the correct type and viscosity for the anticipated
starting temperature (See "Oil Specifications", page 23).
2. Make sure the battery is at full charge.
-9-
E
( m I ( ~ I~
PI-2188R
Fig. 23 Starting Procedure
743 Loader
Operator's Manual
