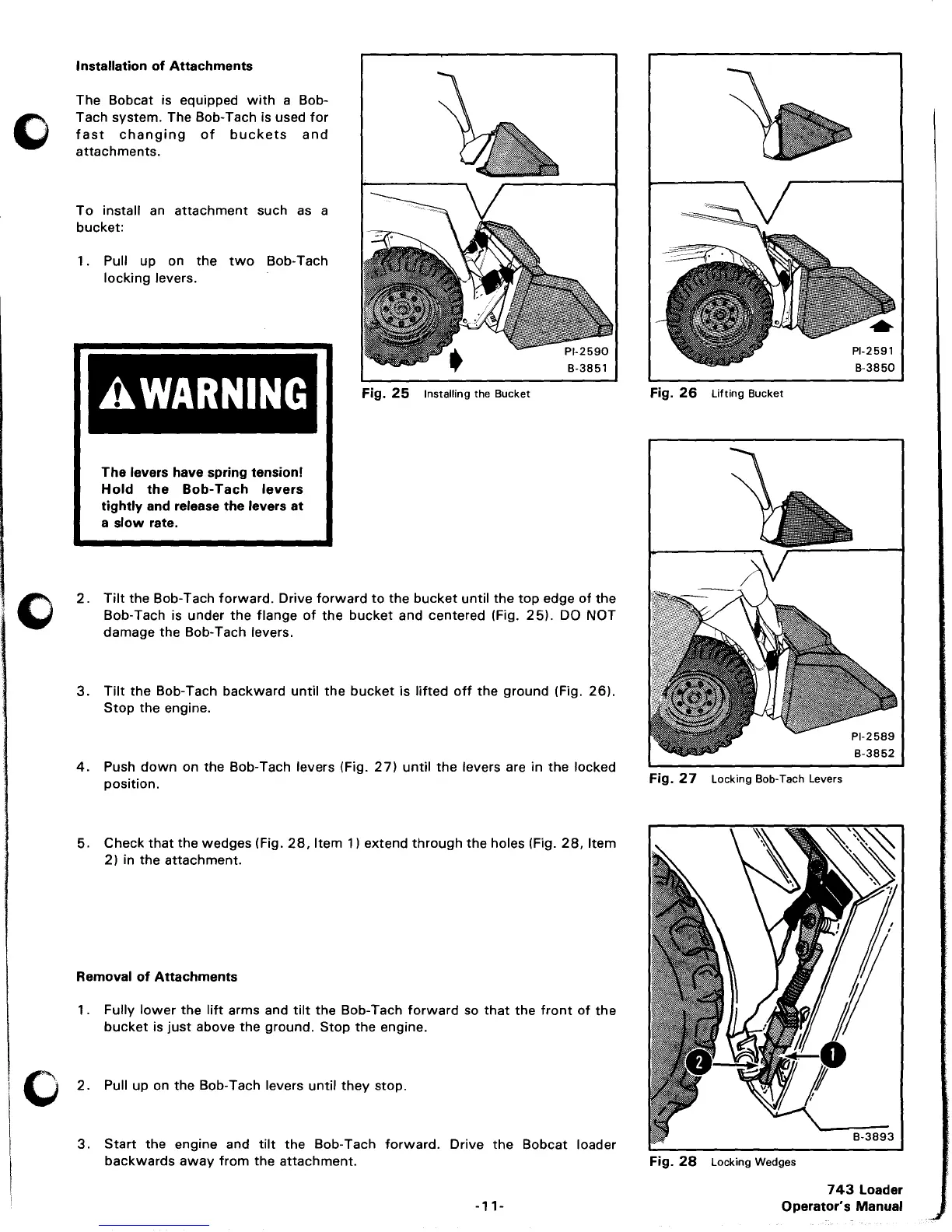

Installation

of

Attachments

The Bobcat is equipped

with

a Bob-

Tach

system.

The Bob-Tach is used

for

fast

changing

of

buckets

and

attachments.

To

install an

attachment

such as a

bucket:

1.

Pull up on

the

two

Bob-Tach

locking

levers.

AWARNING

The

levers have

spring

tension!

Hold

the

Bob-

Tach

levers

tightly

and release

the

levers

at

a

slow

rate.

Fig.

25

Installing the Bucket

2.

Tilt

the

Bob-Tach

forward.

Drive

forward

to

the

bucket

until

the

top

edge

of

the

Bob-Tach is under

the

flange

of

the

bucket

and

centered

(Fig.

25).

DO

NOT

damage

the

Bob-Tach levers.

3.

Tilt

the

Bob-Tach

backward

until

the

bucket

is

lifted

off

the

ground

(Fig.

26).

Stop

the

engine.

4.

Push

down

on

the

Bob-Tach levers (Fig.

27)

until

the

levers are

in

the

locked

position.

5. Check

that

the

wedges

(Fig.

28,

Item 1)

extend

through

the

holes (Fig.

28,

Item

2) in

the

attachment.

Removal

of

Attachments

1.

Fully

lower

the

lift

arms and

tilt

the

Bob-Tach

forward

so

that

the

front

of

the

bucket

is

just

above

the

ground.

Stop

the

engine.

o

2.

Pull up on

the

Bob-Tach levers

until

they

stop.

3.

Start

the

engine and

tilt

the

Bob-Tach

forward.

Drive

the

Bobcat

loader

backwards

away

from

the

attachment.

-11-

Fig.

26

Lifting

Bucket

Fig.

27

Locking Bob-Tach Levers

Fig.

28

Locking Wedges

743

Loader

Operator's

Manual
