Filling the Bucket (Fig. 27)
1. Push down on the top (toe) of the
lift pedal until the lift arms of the
Bobcat loader are all the way
down. Push the top (toe) of the tilt
pedal to put the cutting edge of the
bucket on the ground (A).
2. Drive the loader forward at a slow
rate into the material and push the
bottom (heel) of the tilt pedal to
raise the front of the bucket. Drive
the Bobcat loader backward away
from the material (B).
To Empty the Bucket (Fig. 30)
1. Push down on the bottom (heel) of
the lift pedal to raise the bucket
over the truck box or bin (C)' Push
down on the top (toe) of the tilt
peda( small amounts while you
raise the lift arms to keep the
material from falling off the back of
the bucket.
2. Drive the loader forward at a slow
rate until the bucket is over the
truck box or bin. Push the top (toe)
of the tilt pedal until the bucket is
empty. If all the material is near the
side of the truck box or bin it can
be pushed
to the other side with
the bucket (C).

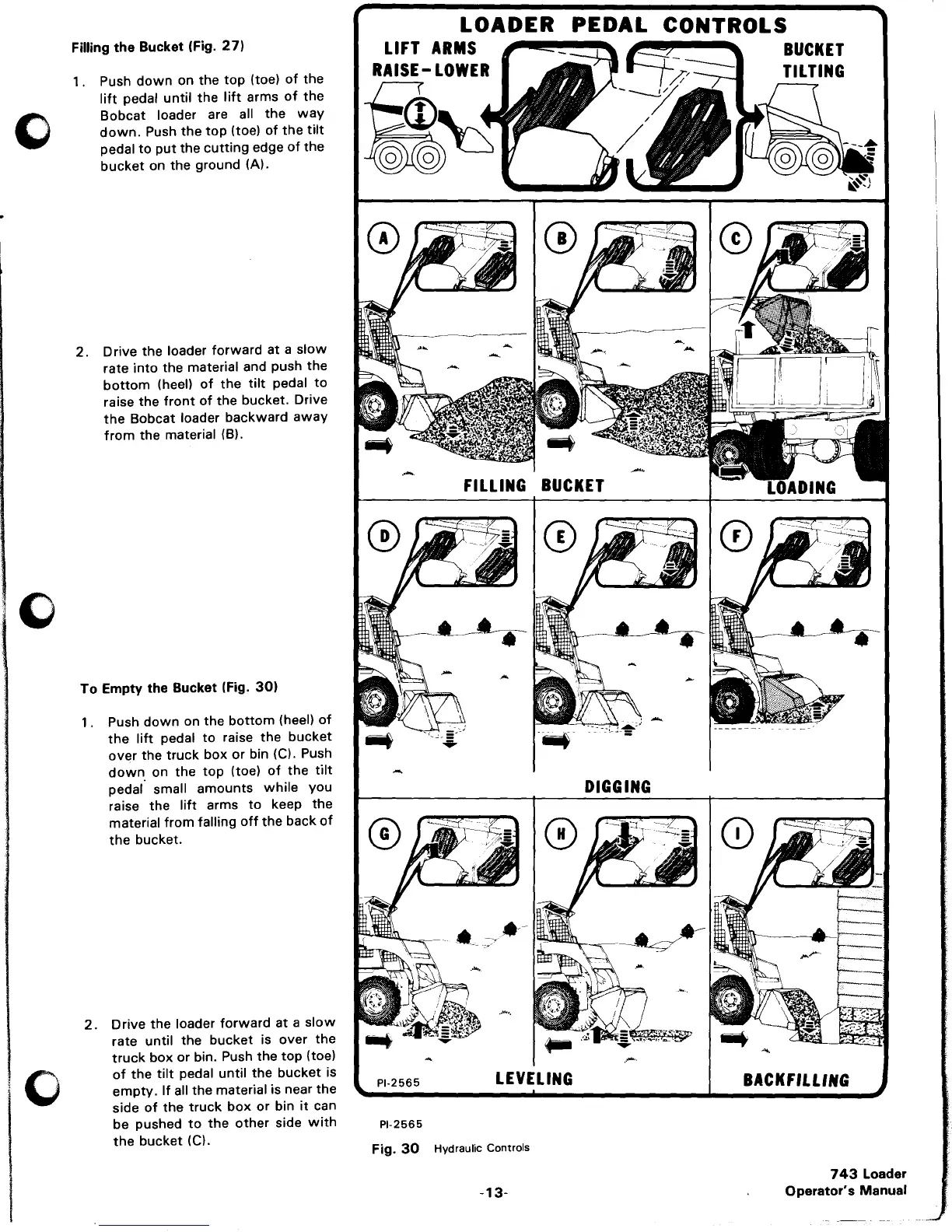

LOADER PEDAL CONTROLS
PI-2565
PI-2565
Fig_ 30 Hydraulic Controls
-13-
DIGGING
BACKFILLlNG
