Bobcat 743 - Main Frame

o
o
D-1547
E-1326

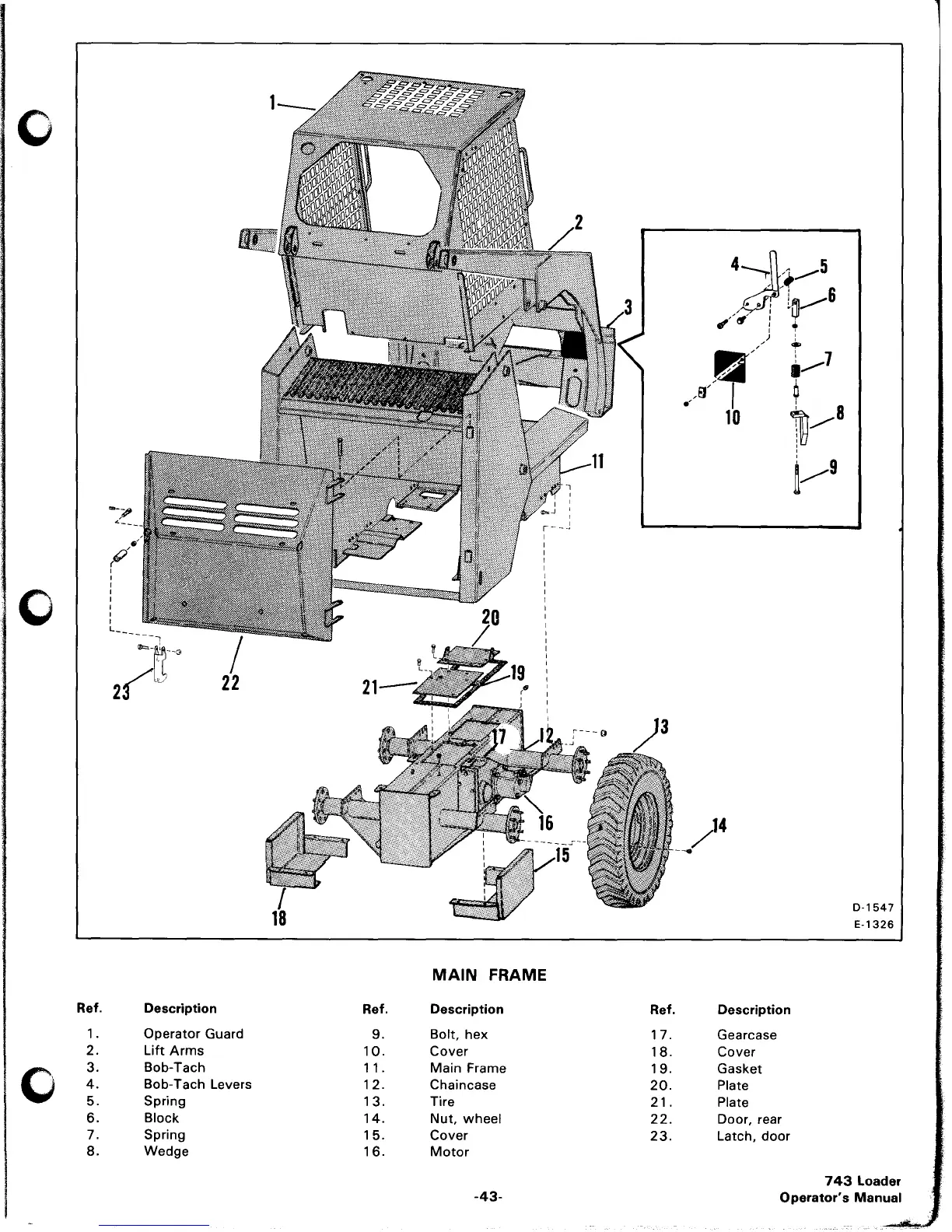

MAIN FRAME
Ref.
Description
Ref. Description
Ref. Description
1 .
Operator Guard
9. Bolt, hex
17.
Gearcase
2.
Lift Arms
10. Cover
18. Cover
0
3. Bob-Tach
11. Main Frame
19. Gasket
4.
Bob-Tach Levers 12.
Chaincase
20.
Plate
5. Spring
13. Tire
21. Plate
6. Block
14.
Nut, wheel
22. Door, rear
7. Spring
15. Cover
23. Latch, door
8.
Wedge
16. Motor
743 Loader
-43-
Operator's Manual
