BOBCAT INTERLOCK CONTROL SYSTEM (BICS)
Inspecting The BICS (Engine STOPPED - Key ON)

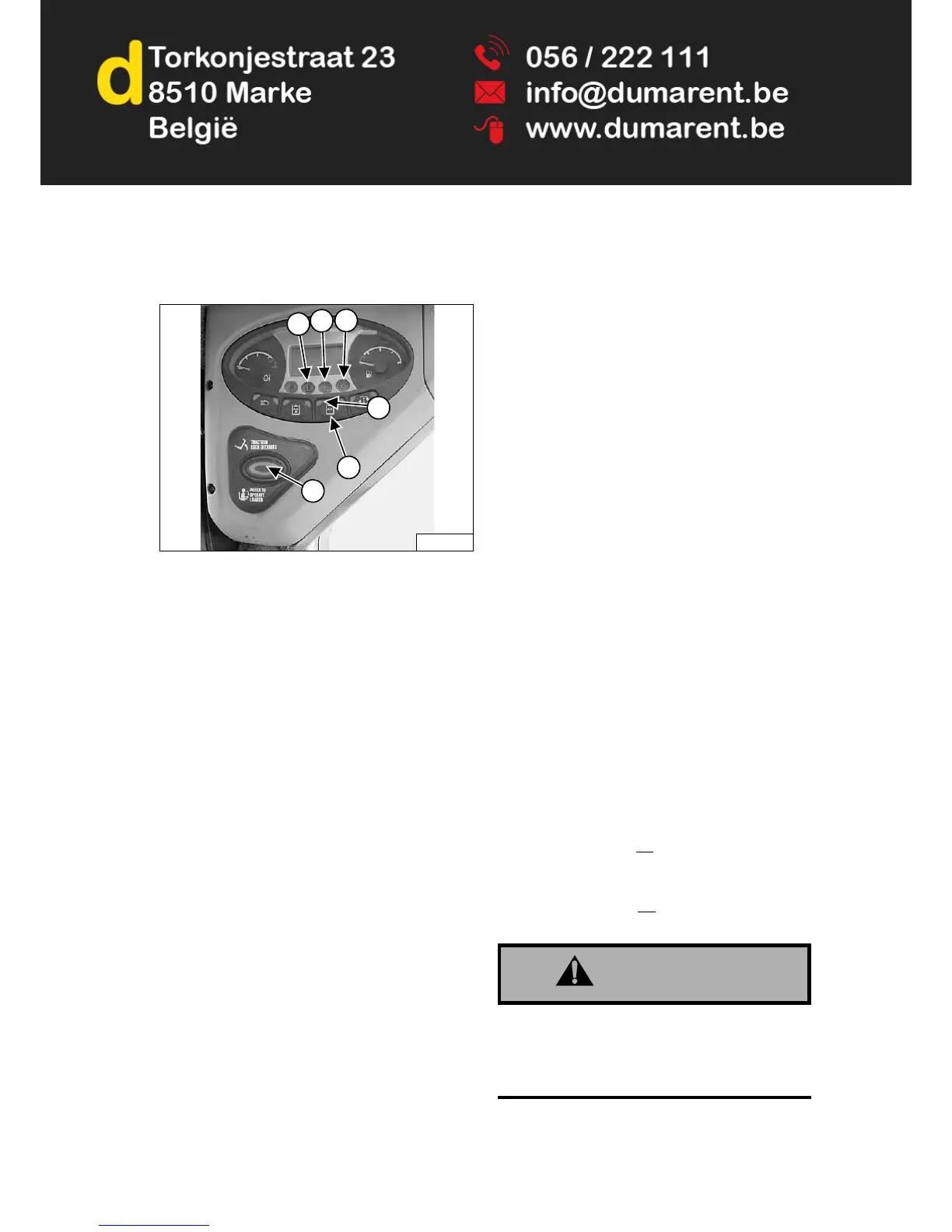

Figure 149
1. Sit in operator’s seat. Turn key to RUN or press RUN
button. Lower seat bar and disengage parking brake.
Press the PRESS TO OPERATE LOADER button
(Item 4). Two BICS™ lights (Items 1 and 2) [Figure
149] [SEAT BAR AND LIFT & TILT VALVE] on left
instrument panel must be OFF. The PRESS TO
OPERATE LOADER button will light.
2. Raise seat bar fully. All three BICS™ lights (Items 1,
2 and 3) [Figure 149] [SEAT BAR, LIFT & TILT
VALVE and PARKING BRAKE] on left instrument
panel must be ON. The PRESS TO OPERATE
LOADER button light will turn OFF.
Inspecting Deactivation Of The Auxiliary Hydraulics
System (Engine STOPPED - Key ON)
3. Sit in operator’s seat, lower seat bar and press the
PRESS TO OPERATE LOADER button (Item 4).
Press the auxiliary hydraulics button (Item 5). The
auxiliary hydraulics light will be ON (Item 6) [Figure
149]. Raise the seat bar. The light must be OFF.
Inspecting The Seat Bar Sensor (Engine RUNNING)
4. Sit in operator’s seat, lower seat bar, engage parking
brake and fasten seat belt.
5. Start engine and operate at low idle. Press the
PRESS TO OPERATE LOADER button. While raising
the lift arms, raise the seat bar fully. The lift arms must
stop. Repeat using the tilt function.
Inspecting The Traction Lock (Engine RUNNING)
6. Fasten seat belt, disengage parking brake, press the
PRESS TO OPERATE LOADER button and raise
seat bar fully. Move steering levers or joystick(s)
slowly forward and backward. The TRACTION lock
must be engaged. Lower the seat bar. Press the
PRESS TO OPERATE LOADER button.
7. Engage parking brake and move steering levers or
joystick(s) slowly forward and backward. The
TRACTION lock must be engaged.
NOTE: The PARKING BRAKE light on the left
instrument panel will remain ON until the
engine is started, the PRESS TO OPERATE
LOADER button is pressed and the parking
brake is disengaged.
Inspecting The Lift Arm Bypass Control
8. Raise the lift arms 2 m (6 ft) off the ground. Stop
engine. Turn lift arm bypass control knob clockwise 1/
4 turn. Pull up and hold lift arm bypass control knob
until lift arms slowly lower.
Inspecting Deactivation Of Lift And Tilt Functions
(ACS, AHC and SJC)
9. Sit in operator’s seat and fasten seat belt. Lower seat
bar, start engine and press the PRESS TO OPERATE
LOADER button.
10. Raise lift arms about 2 m (6 ft) off the ground.
11. Turn key OFF or press STOP button, and wait for the
engine to come to a complete stop.
12. Turn key ON or press RUN button. Press the PRESS
TO OPERATE LOADER button, move the control
(foot pedal, hand control or joystick) to lower the lift
arms. Lift arms must not
lower.
13. Move the control (foot pedal, hand control or joystick)
to tilt the bucket (or attachment) forward. The bucket
(or attachment) must not
tilt forward.
