115 S130 Operation & Maintenance Manual
SEAT BAR RESTRAINT SYSTEM (CONT’D)
Maintaining
See the SERVICE SCHEDULE for correct service
interval. (See SERVICE SCHEDULE on Page 111.)

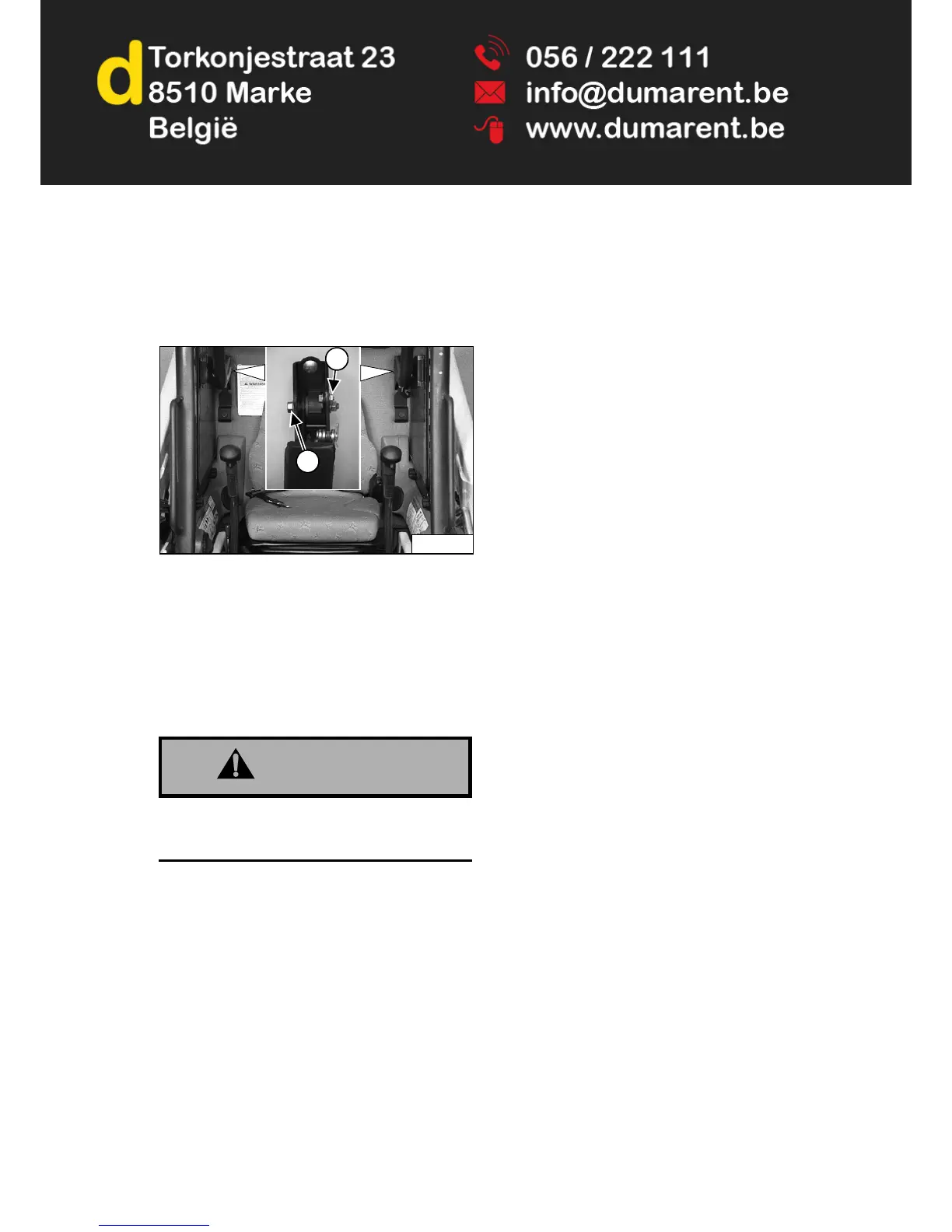

Figure 150
Use compressed air to clean any debris or dirt from the
pivot parts. Do not lubricate. Inspect all mounting
hardware. The correct hinge bolt (Item 1) torque is 34 -
38 N•m (25 - 28 ft-lb). The seat bar sensor nut (left side
only) (Item 2) [Figure 150] torque is 6 - 8 N•m (50 - 70 in-
lb).
If the seat bar system does not function correctly, replace
parts that are worn or damaged. Use only genuine
Bobcat replacement parts.
The seat bar system must deactivate the lift and tilt
control functions when the seat bar is up. Service the
system if hydraulic controls do not deactivate.
W-2465-0703
