50 S130 Operation & Maintenance Manual

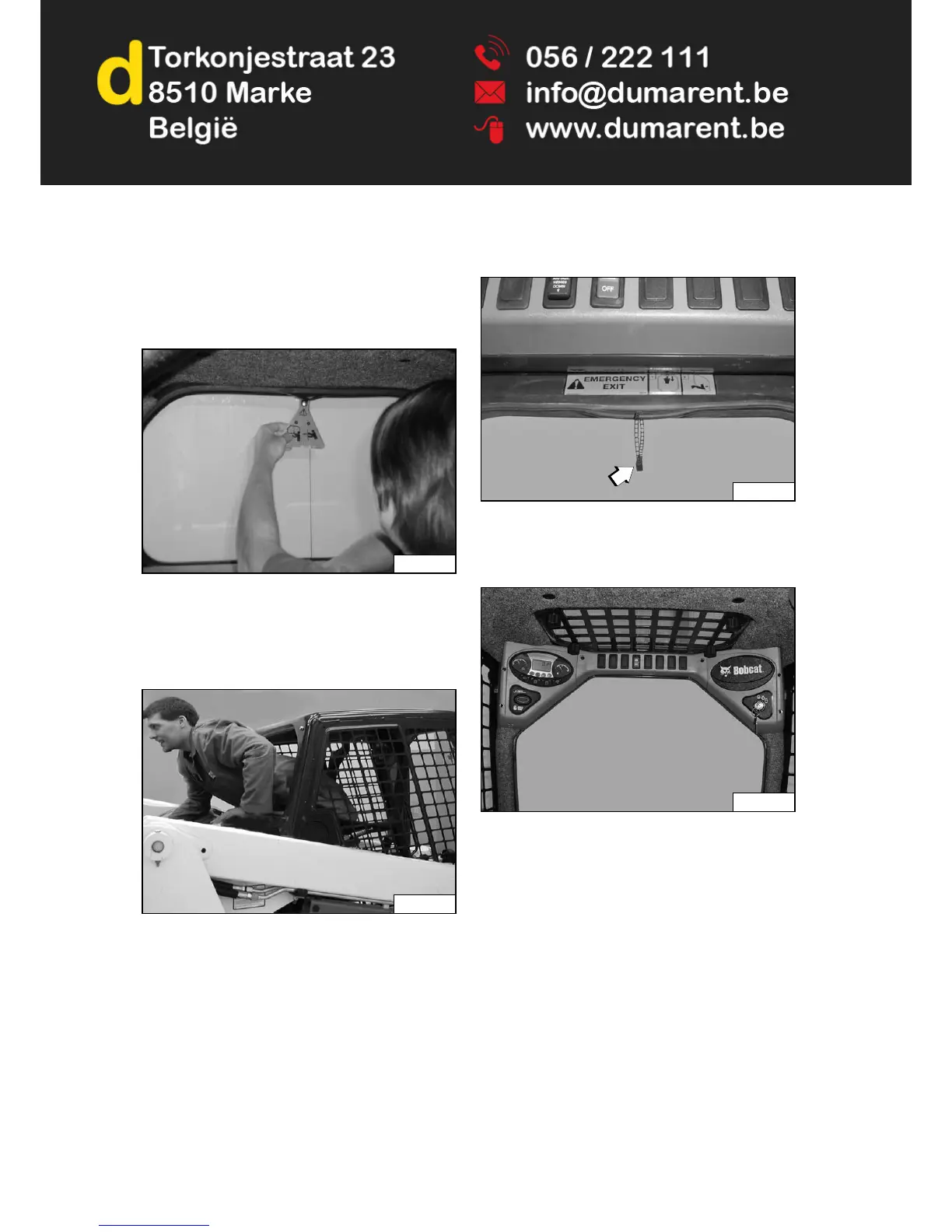

EMERGENCY EXIT
The front opening on the operator cab and rear window
provide exits.
Rear Window
Figure 27
Pull on the tag on the top of the rear window to remove
the rubber cord [Figure 27].
Push the rear window out of the rear of the operator cab.
Figure 28
Exit through the rear of the operator cab [Figure 28].
Front Door
Figure 29
Pull the plastic loop at the top of the window in the front
door to remove the rubber cord [Figure 29].
Figure 30
Push the window out with your foot at any corner of the
window [Figure 30].
Exit through the front door.
