53 S130 Operation & Maintenance Manual
DRIVING AND STEERING THE LOADER
Available Control Configurations
The loader has four configurations available:
• Standard Controls - Two Steering Levers control drive
and steering functions.
• Advanced Control System (ACS) (Option) - Two
Steering Levers control drive and steering functions.
• Advanced Hand Controls (AHC) (Option) - Two
Steering Levers control drive and steering functions.
• Selectable Joystick Controls (SJC) (Option) -
(‘ISO’ Pattern) Left joystick controls the drive and
steering functions.
(‘H’ Pattern) Left and right joysticks control left and
right side drive and steering functions.
Operation (Standard, ACS and AHC)

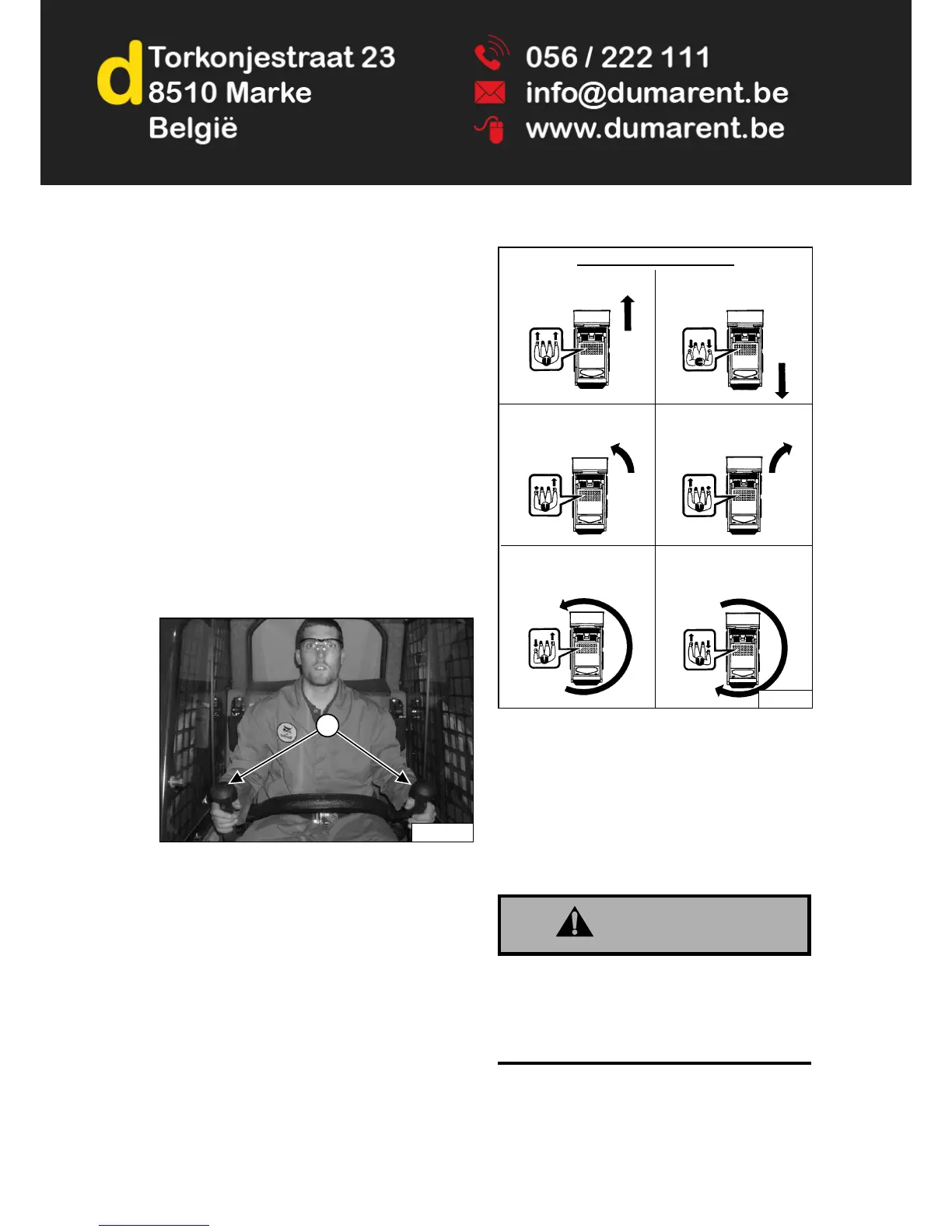

Figure 34
The steering levers (Item 1) [Figure 34] are on the left
and right side in front of the seat.
Move the levers smoothly. Avoid sudden starting and
stopping.
Figure 35
The steering levers control forward and backward travel
and turning the loader [Figure 35].
Forward Travel - Push both levers forward.
Reverse Travel - Pull both levers backward.
Normal Turning - Move one lever farther forward than
the other.
Fast Turning - Push one lever forward and pull the other
lever backward.
AVOID INJURY OR DEATH
When operating the machine:
• Keep the seat belt fastened snugly.
• The seat bar must be lowered.
• Keep your feet on the pedal controls or footrests
and hands on the controls.
W-2261-0909
