55 S130 Operation & Maintenance Manual
DRIVING AND STEERING THE LOADER (CONT’D)

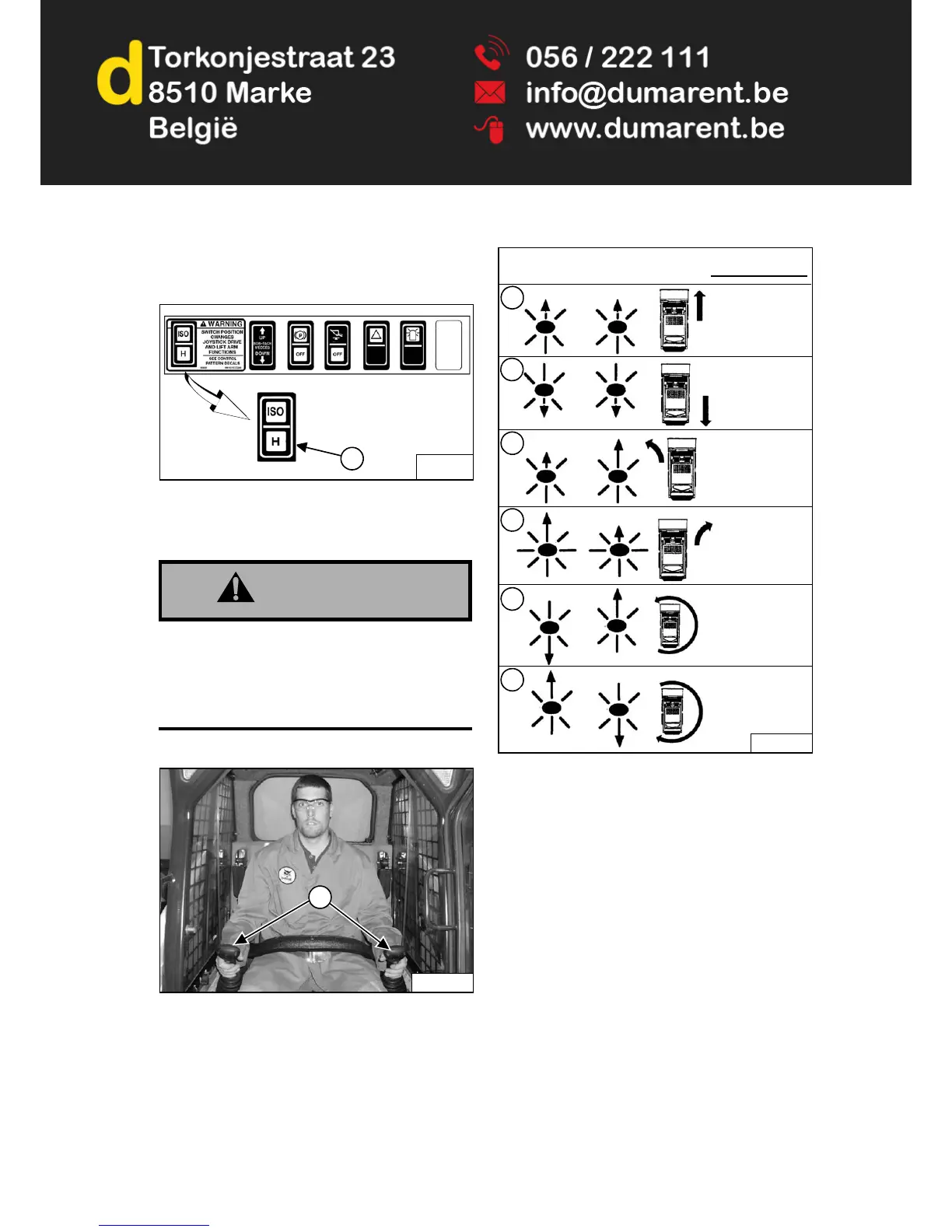

Operation (SJC) in ‘H’ Control Pattern
Figure 39
Select the ‘H’ control pattern by pressing the bottom of
the switch (Item 1) [Figure 39].
AVOID INJURY OR DEATH
When operating the machine:
• Keep the seat belt fastened snugly.
• The seat bar must be lowered.
• Keep your feet on the foot rests and hands on
control levers.
W-2399-0501
Figure 40
Both joysticks control drive and steering and are located
on the left and right side in front of the seat (Item 1)
[Figure 40].
Move the joysticks smoothly. Avoid sudden starting and
stopping.
Figure 41
Joystick Functions (Drive and Steering) [Figure 41]
1. Forward Travel - Move both joysticks forward.
2. Backward Travel - Move both joysticks backward.
3. Forward Left Turn - Move the right joystick farther
forward than the left joystick.
4. Forward Right Turn - Move the left joystick farther
forward than the right joystick.
5. Left Fast Turn - Move the left joystick backward and
the right joystick forward.
6. Right Fast Turn - Move the left joystick forward and
the right joystick backward.
STOPPING THE LOADER
Using The Control Levers Or Joysticks
When the steering levers or joysticks are moved to the
neutral position, the hydrostatic transmission will act as a
service brake to stop the loader.
