70 S130 Operation & Maintenance Manual
ATTACHMENT CONTROL DEVICE (ACD)
This machine can be equipped with an Attachment
Control Device.
Description

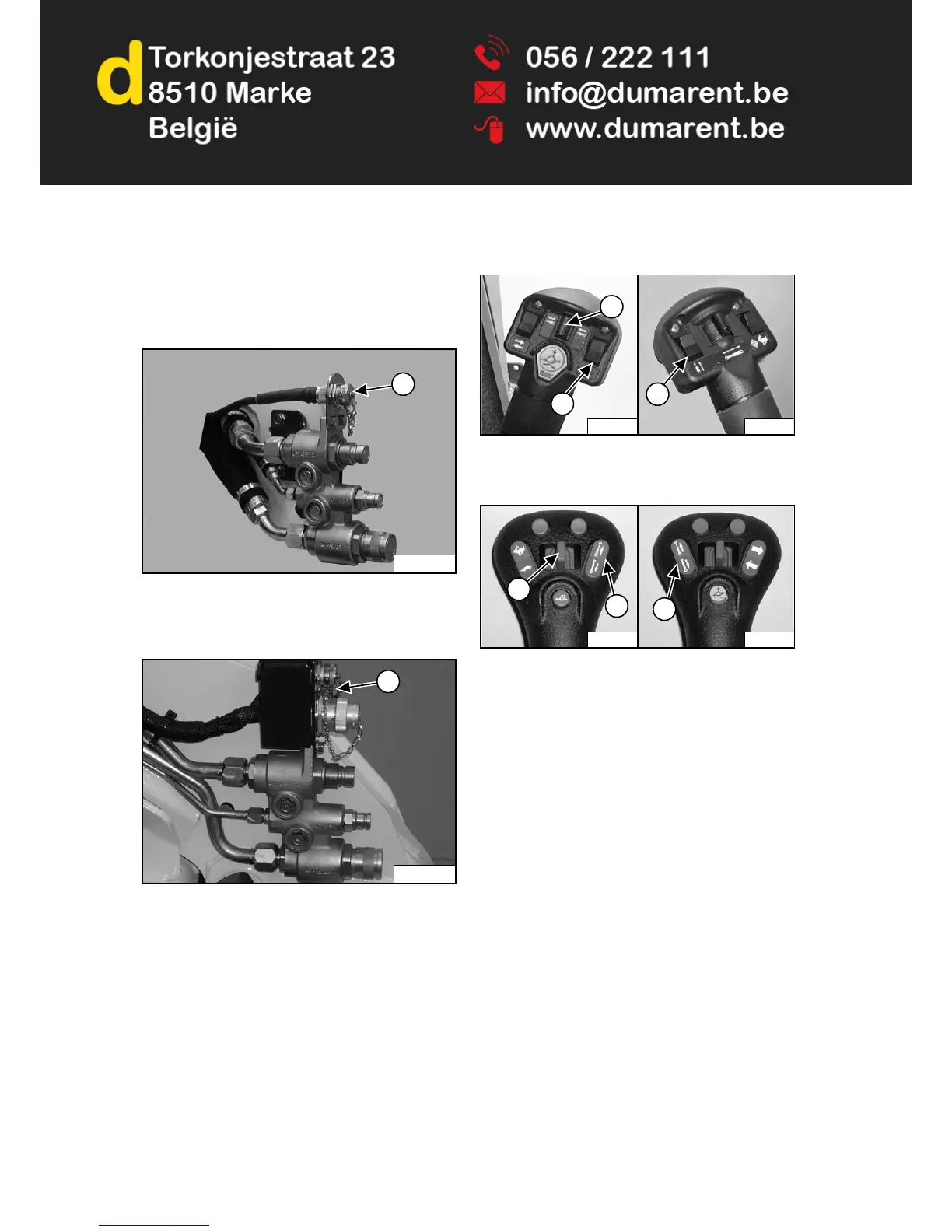

Figure 75
Connect the attachment electrical harness to the
attachment control device (Item 1) [Figure 75].
Figure 76
You will need the Dual-Connector (7-pin / 14-pin) kit (Item
1) [Figure 76] to operate early model attachments. See
your Bobcat loader dealer.
Standard, ACS and AHC (If Equipped)
Figure 77
SJC (If Equipped)
Figure 78
Additional switches (Items 1, 2 and 3) [Figure 77] or
[Figure 78] on the right and left control handles or
joysticks are used to control some attachment functions
through the attachment control device.
NOTE: ACD takes over the function of auxiliary
hydraulic switch (Item 3) [Figure 77] or [Figure
78] from Rear Auxiliary Hydraulics and
Secondary Front Auxiliary Hydraulics when
an attachment electrical harness is attached
to the ACD.
See the appropriate attachment Operation &
Maintenance Manual for control details.
