105 S450 Operation & Maintenance Manual
MONITORING THE DISPLAY PANELS
Left Panel

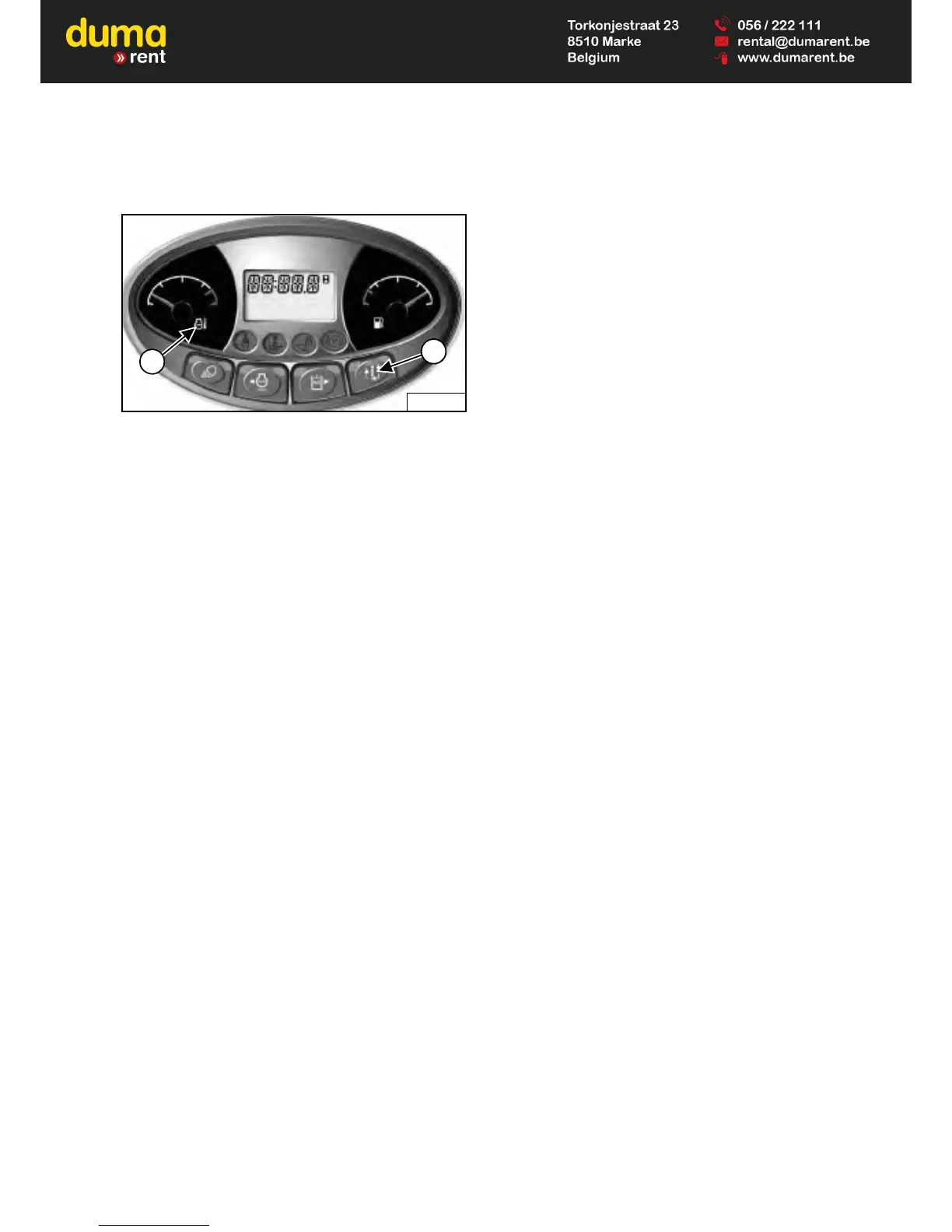

Figure 118
Frequently monitor the temperature and fuel gauges and
BICS™ lights (all BICS™ lights must be OFF to operate
loader) [Figure 118].
After the engine is running, frequently monitor the left
instrument panel [Figure 118] for machine condition.
The associated icon is displayed if there is an error
condition.
EXAMPLE: Engine Coolant Temperature is High.
The Engine Coolant Temperature icon (Item 1)
[Figure 118] is ON.
Press the Information button (Item 2) [Figure 118] to
cycle the data display until the service code screen is
displayed. One of the following SERVICE CODES is
displayed.
• [M0810] Engine Coolant Temperature Too High
• [M0811] Engine Coolant Temperature Extremely
High
Find the cause of the service code and correct before
operating the loader again. (See Service Codes List on
Page 202.)
NOTE: The optional Deluxe Instrumentation Panel
offers an additional view of service codes that
includes a brief description. (See Viewing
Service Codes on Page 201.)
Warning And Shutdown
When a WARNING condition exists; the associated icon
light is ON and the alarm sounds 3 beeps. If this
condition is allowed to continue, there may be damage to
the engine or loader hydraulic systems.
When a SHUTDOWN condition exists; the associated
icon light is ON and the alarm sounds continuously. The
monitoring system will automatically stop the engine in
15 seconds. The engine can be restarted to move or
relocate the loader.
The SHUTDOWN feature is associated with the following
icons:
General Warning
Engine Malfunction
Engine Coolant Temperature
Hydraulic System Malfunction
