AVOID INJURY OR DEATH
• Before lifting, check fasteners on four point lift.
• Never allow riders in the cab or bystanders within
5 m (15 ft) while lifting the machine.
W-2160-0910
The loader can be lifted with the Four-Point Lift that is
available as a kit from your Bobcat loader dealer.

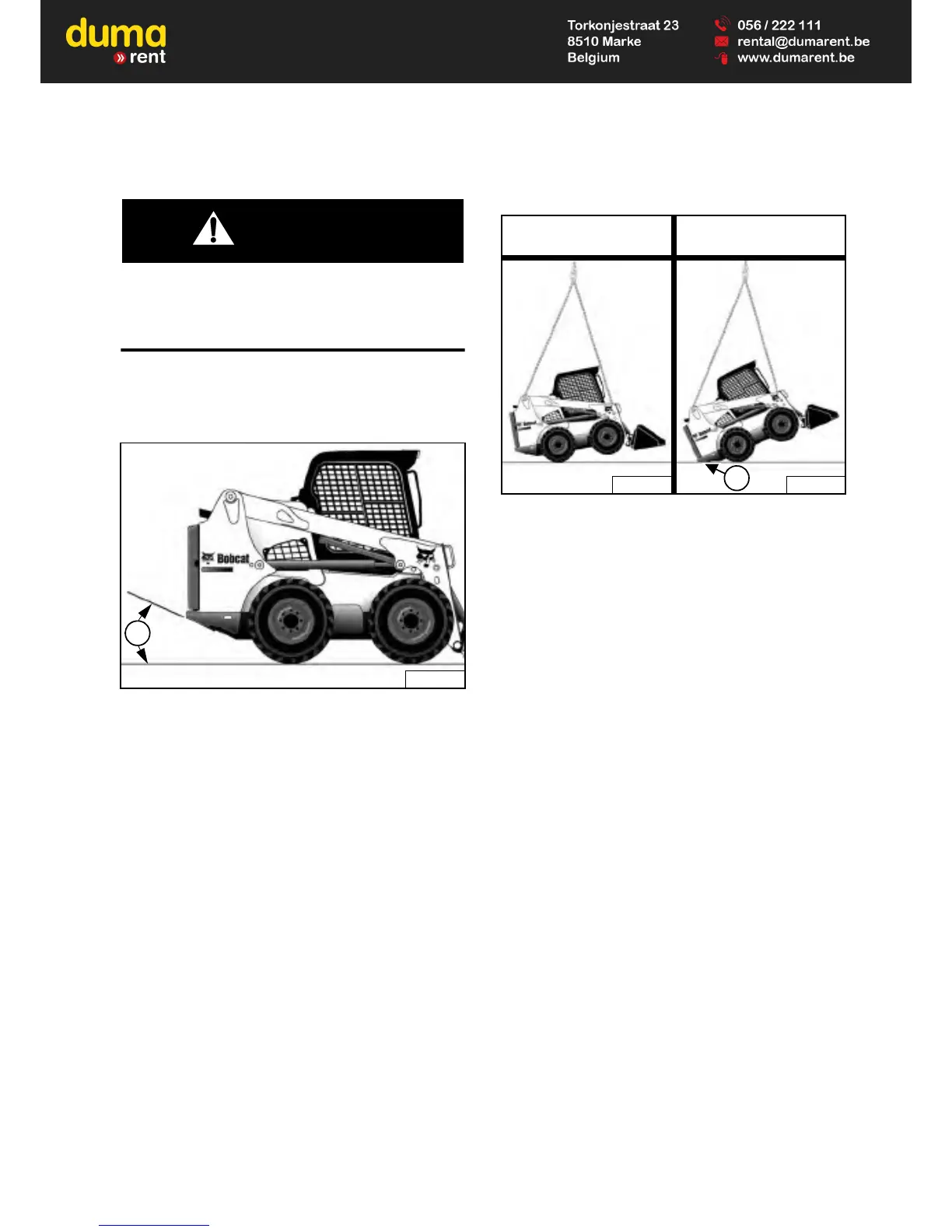

Figure 165
NOTE: The loader should be lifted as close to
horizontal as possible, but at no time should
the angle of the suspended loader exceed the
departure angle (Item 1) [Figure 165] provided
in the specifications section. (See Machine
Dimensions on Page 217.)
Figure 166
Attach cables or chains to lift eyes [Figure 166].
NOTE: Sling legs should not contact any part of the
operator cab or lift arms to prevent damage.
NOTE: The required length of front and rear sling
legs may or may not be equal depending on
loader configuration. Departure angle (Item 1)
[Figure 166] in this view has been exceeded,
sling leg length must be adjusted to prevent
this situation.
NOTE: Be sure the lifting equipment is of adequate
size and capacity for the weight of the loader.
(See Performance on Page 218.)
