Never work on a machine with the lift arms up unless
the lift arms are secured by an approved lift arm
support device. Failure to use an approved lift arm
support device can allow the lift arms or attachment
to fall and cause injury or death.
Service lift arm support device if damaged or if parts
are missing. Using a damaged lift arm support or
with missing parts can cause lift arms to drop
causing injury or death.
W-2572-0407

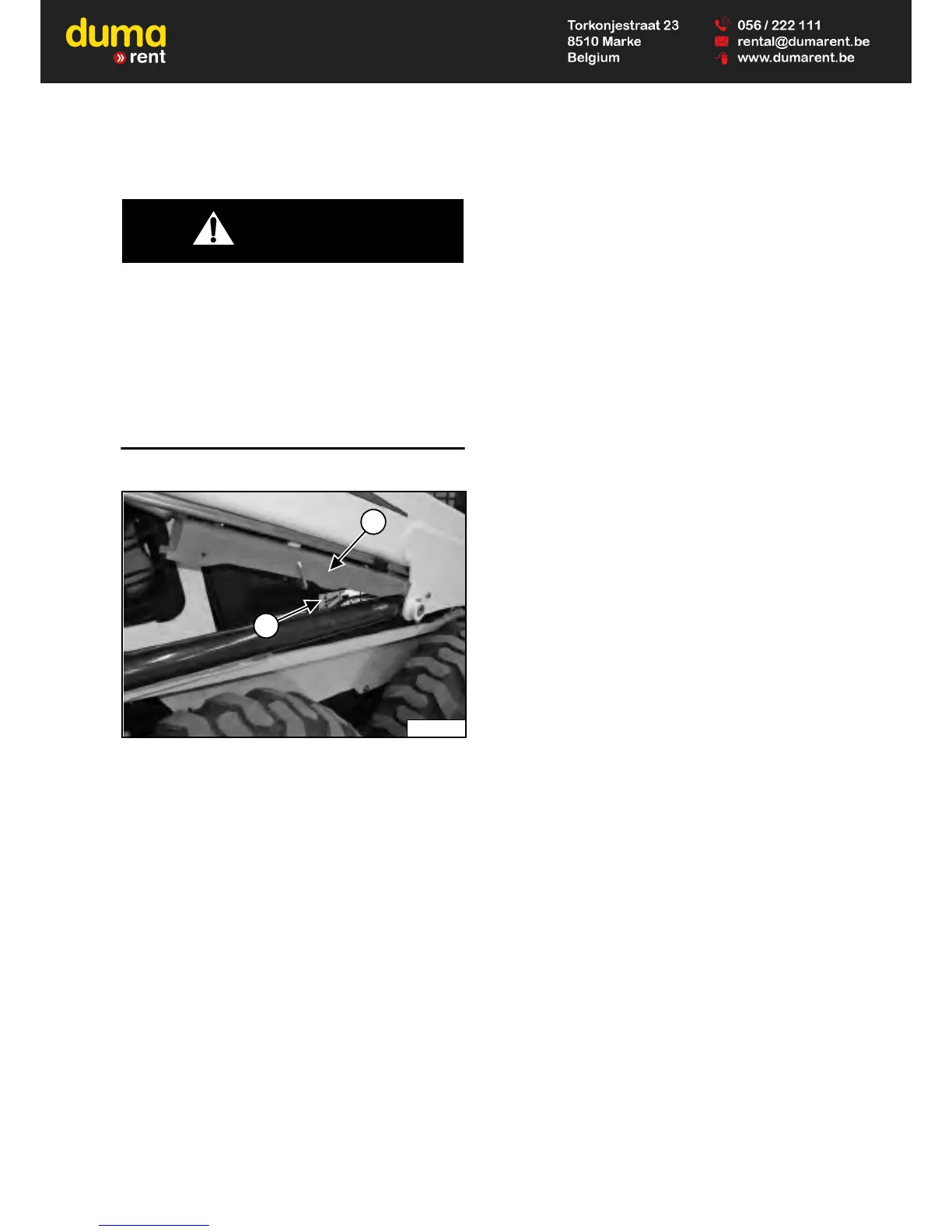

Figure 173
The lift arm support device (Item 1) [Figure 173] is used
to support the lift arms while working on a machine with
the lift arms up.
A decal (Item 2) [Figure 173] located on the right side of
the operator cab provides instructions for installing and
removing the lift arm support device.
The procedures are described in more detail on the
following pages. (See Installing on Page 142.) and (See
Removing on Page 143.)
