P-90328

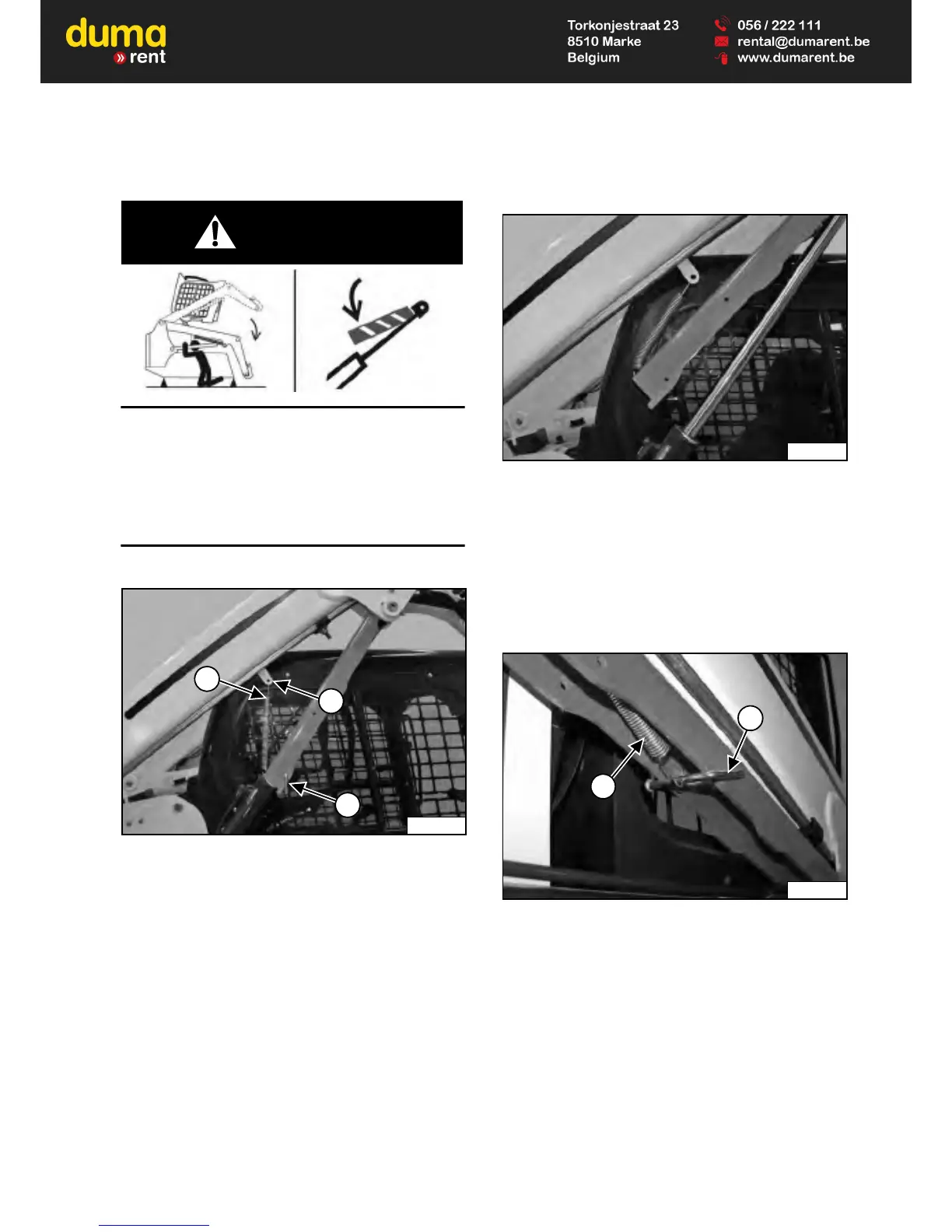

AVOID DEATH
• Disconnecting or loosening any hydraulic
tubeline, hose, fitting, component or a part failure
can cause lift arms to drop.
• Keep out of this area when lift arms are raised
unless supported by an approved lift arm
support. Replace if damaged.
D-1009-0409
Figure 177
Remove the retaining pin (Item 3) [Figure 177] from the
lift arm support device.
Connect the spring (Item 1) from the lift arm support
device to the bracket (Item 2) [Figure 177] on the bottom
of the lift arm.
Sit in the operator’s seat, fasten the seat belt, and lower
the seat bar. Start the engine.
Figure 178
Raise the lift arms a small amount. The spring will lift the
lift arm support device off the lift cylinder rod
[Figure 178]. Fully lower the lift arms.
Stop the engine, raise the seat bar, unbuckle the seat
belt, and make sure lift and tilt functions are deactivated.
Disconnect the spring from the bracket.
Figure 179
Raise the lift arm support device into the storage position
and insert the retaining pin (Item 1) through the lift arm
support device and the bracket. Hook the spring (Item 2)
[Figure 179] to the retaining pin.
Remove the jackstands.
