BACK-UP ALARM SYSTEM (CONT’D)
Adjusting Switch Position
NOTE: Joystick equipped machines do not have
back-up alarm switches and cannot be
adjusted. See your Bobcat dealer for service if
your back-up alarm does not sound.
Standard Controls And ACS (If Equipped)
Stop the engine and raise the operator cab. (See Raising
on Page 147.)
Put the steering levers into the neutral position.
Figure 182

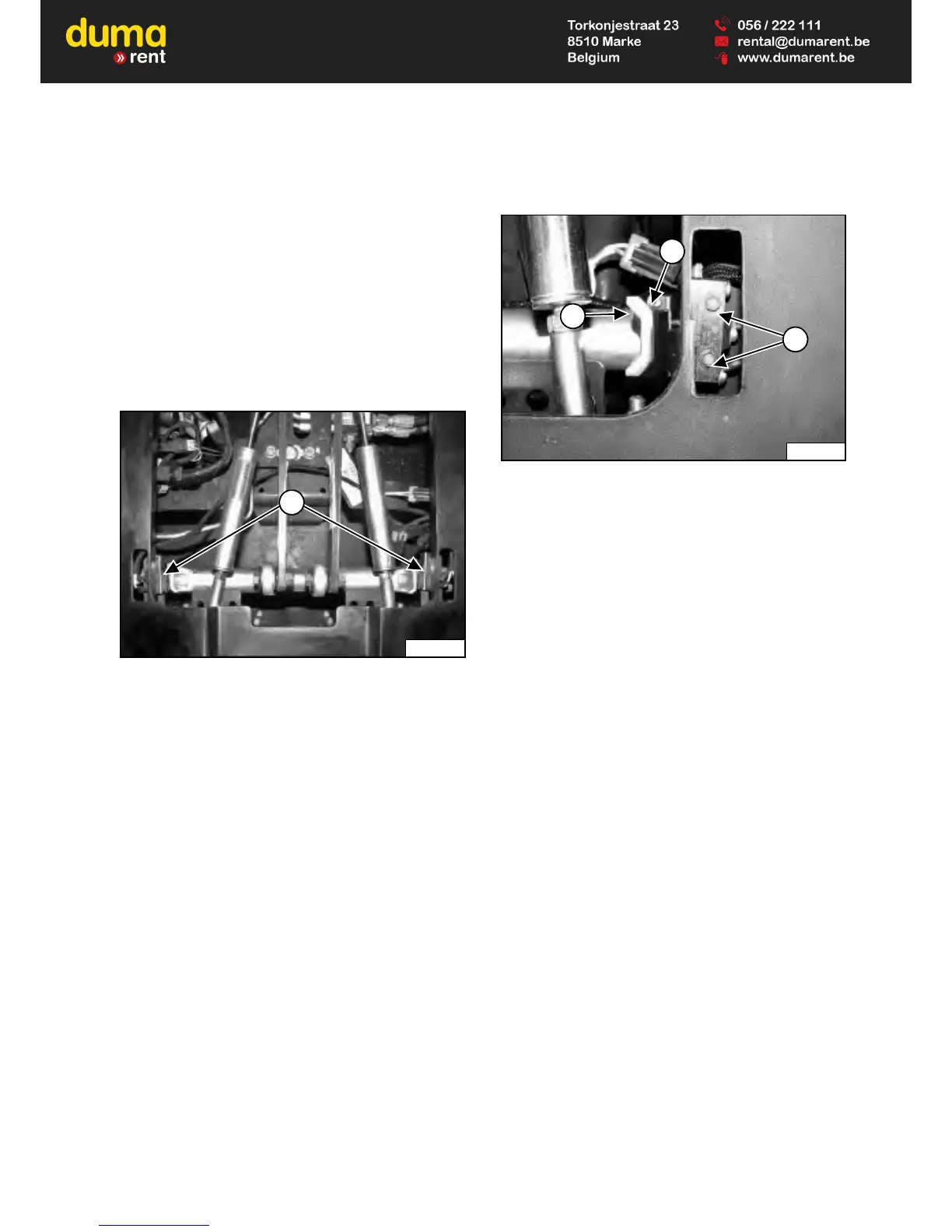

The back-up alarm switches (Item 1) [Figure 182] are
located alongside the steering bellcranks. Both switches
must be adjusted properly for the back-up alarm to
operate correctly.
Figure 183
Loosen the screws (Item 3) [Figure 183] securing the
back-up alarm switch. (Left side shown)
Position the back-up alarm switch so that the roller (Item
1) just makes contact with the bellcrank (Item 2)
[Figure 183] without compressing the switch spring.
Torque the screws (Item 3) [Figure 183] securing the
switch to the bracket to 1,0 – 1,4 N•m (9 – 12 in-lb).
Repeat adjustment procedure for the other switch.
Lower the operator cab. (See Lowering on Page 148.)
Inspect back-up alarm system for proper function. (See
Inspection on Page 144.)
