13 S450 Operation & Maintenance Manual

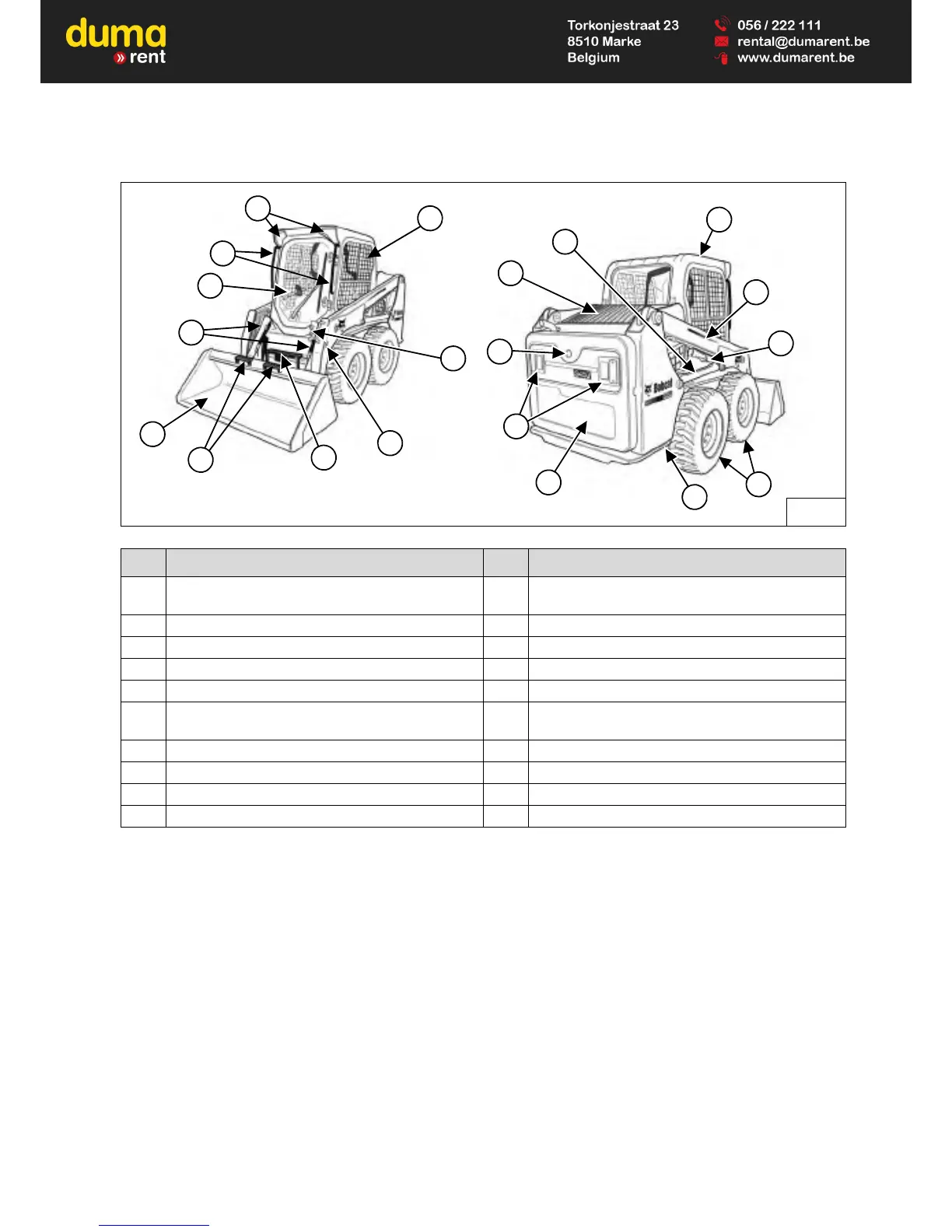

LOADER IDENTIFICATION
[A] Bucket – Several different buckets and other attachments are available for the Bobcat loader.
[B] ROPS – Roll-Over Protective Structure per ISO 3471 and FOPS – Falling-Object Protective Structure per ISO 3449,
Level I. Level II is available.
[C] Tyres – Standard tyres are shown. Several different tyre styles and sizes are available for the Bobcat loader.
[D] Optional or Field Accessory, (Not Standard Equipment.)
ITEM DESCRIPTION ITEM DESCRIPTION
1
Operation & Maintenance Manual and Operator’s
Handbook
11 Lift Cylinder (Both Sides)
2 Front Lights 12 Rear Grille
3 Grab Handles 13 Back-up Alarm [D]
4 Operator Seat with Seat Belt and Seat Bar 14 Rear Work Lights and Taillights
5 Tilt Cylinders 15 Rear Door
6 Bucket [A] 16
Rear Tie-down (Both Sides) Front Tie-down located
behind Bucket
7 Bucket Steps 17 Ty re s [C]
8 Step 18 Lift Arm Support Device
9 Alternate Front Tie-down (Both Sides) 19 Lift Arm
10 Front Auxiliary Quick Couplers 20 Operator Cab (ROPS and FOPS) [B]
