165 S450 Operation & Maintenance Manual
ENGINE COOLING SYSTEM (CONT’D)
Cleaning (Cont’d)
Loaders With Air Conditioning

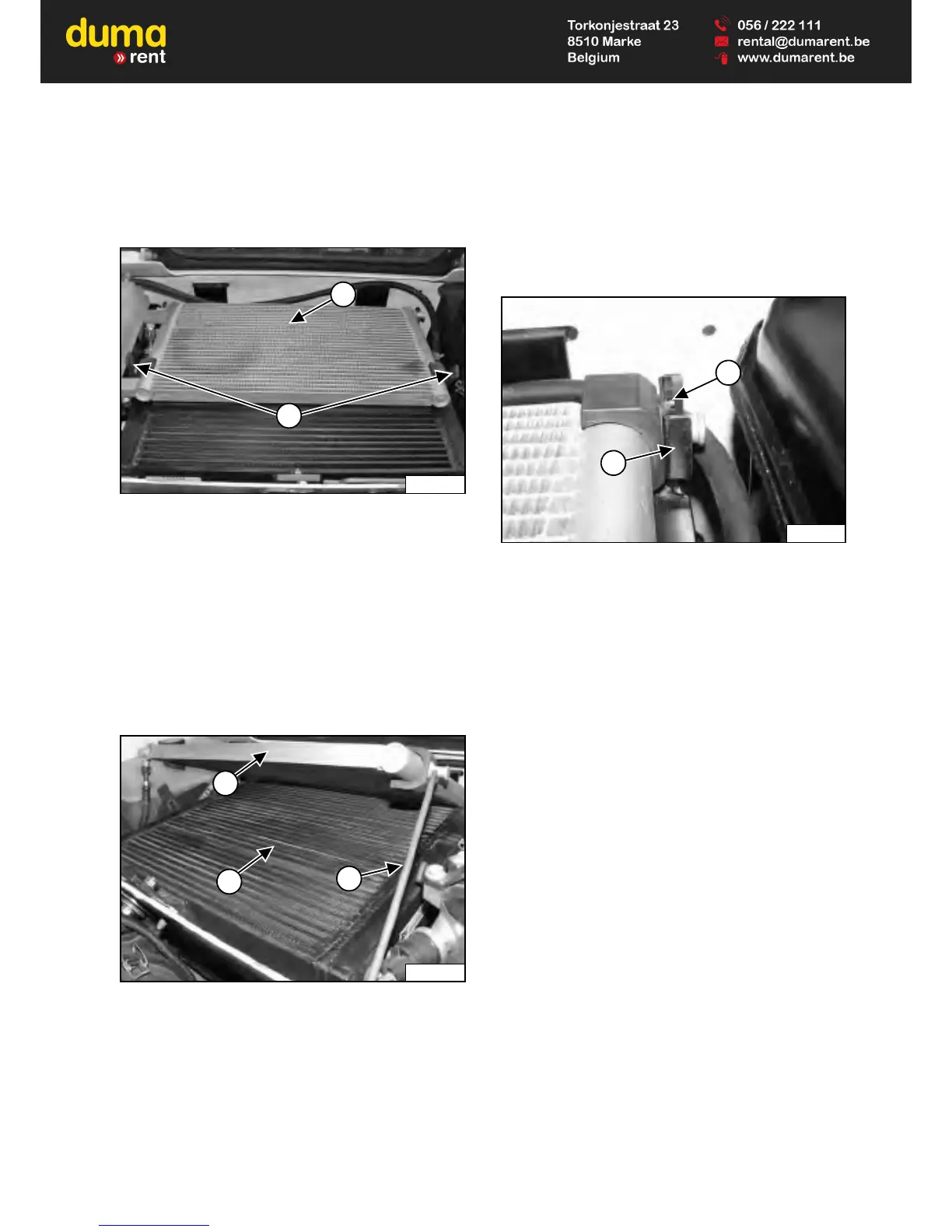

Figure 223
Use low air pressure or water pressure to clean the top of
the air conditioning condenser (Item 1) [Figure 223].
Unhook the two rubber straps (Item 2) [Figure 223].
NOTE: The air conditioning condenser fits into two
slotted brackets mounted on the hydraulic
fluid cooler and radiator assembly. Ensure the
air conditioning condenser remains
connected to the brackets when raising and
lowering.
Figure 224
Pivot the air conditioning condenser (Item 1) up and
rotate the support bar (Item 2) into position. Use low air
pressure or water pressure to clean the top of the
hydraulic fluid cooler and radiator assembly (Item 3)
[Figure 224].
Return the support bar to storage position and lower the
air conditioning condenser.
Figure 225
Ensure the air conditioning condenser is installed into the
two slotted brackets (Item 2) [Figure 225]. (Right side
shown.)
Ensure the clips (Item 1) are properly installed over the
two slotted brackets (Item 2) [Figure 225]. (Right side
shown.)
Fasten the two rubber straps [Figure 223].
NOTE: The air conditioning condenser can be lifted
out of the two slotted brackets by removing
the clips. This allows greater access to clean
the hydraulic fluid cooler and radiator
assembly.
NOTE: Be careful when removing and installing the
air conditioning condenser so that the air
conditioning condenser does not fall on the
hydraulic fluid cooler and radiator assembly
and damage the fins.
Skip ahead to All Loaders. (See All Loaders on Page
166.)
