59 S450 Operation & Maintenance Manual
CONTROL IDENTIFICATION (CONT’D)

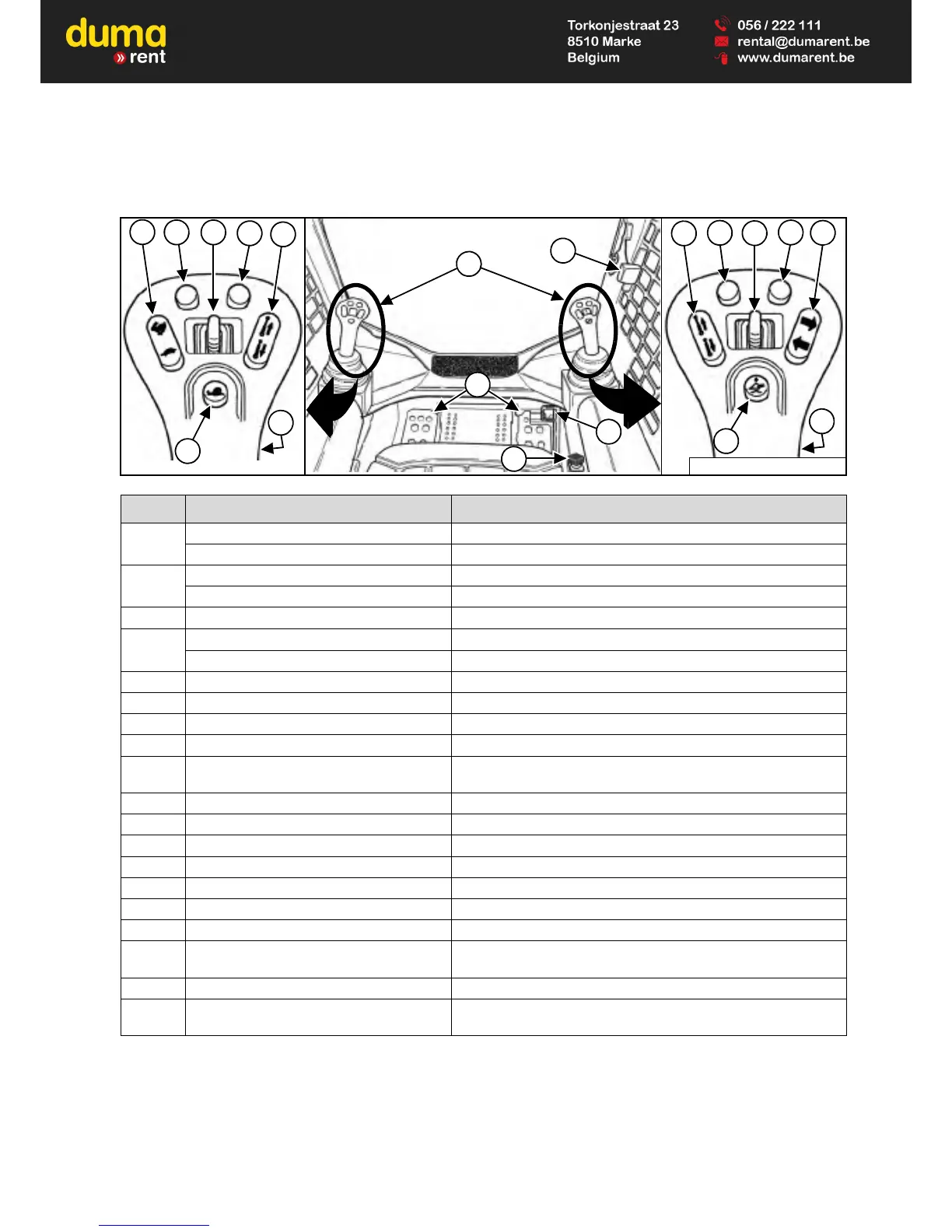

Selectable Joystick Controls (SJC)
Figure 25
* Also used as Attachment Function Control: See your attachment Operation & Maintenance Manual.
ITEM DESCRIPTION FUNCTION / OPERATION
1
TWO-SPEED CONTROL See TWO-SPEED CONTROL in this manual.
Also: SPEED MANAGEMENT See SPEED MANAGEMENT in this manual.
2 *
STEERING DRIFT COMPENSATION See STEERING DRIFT COMPENSATION in this manual.
Also: DRIVE RESPONSE See DRIVE RESPONSE in this manual.
3 ATTACHMENT FUNCTION CONTROL See ATTACHMENT CONTROL DEVICE in this manual.
4 *
STEERING DRIFT COMPENSATION See STEERING DRIFT COMPENSATION in this manual.
Also: DRIVE RESPONSE See DRIVE RESPONSE in this manual.
5 ATTACHMENT FUNCTION CONTROL See ATTACHMENT CONTROL DEVICE in this manual.
6 SPEED MANAGEMENT See SPEED MANAGEMENT in this manual.
7 FRONT HORN Press the front switch to sound the front horn.
8 ENGINE SPEED CONTROL (HAND) See ENGINE SPEED CONTROL in this manual.
9JOYSTICKS
See DRIVING AND STEERING THE LOADER and HYDRAULIC
CONTROLS in this manual.
10 FOOTRESTS Keep your feet on the footrests at all times.
11 ENGINE SPEED CONTROL (FOOT) See ENGINE SPEED CONTROL in this manual.
12 LIFT ARM BYPASS CONTROL See LIFT ARM BYPASS CONTROL in this manual.
13 ATTACHMENT FUNCTION CONTROL See ATTACHMENT CONTROL DEVICE in this manual.
14 * NOT USED – – –
15 FRONT AUXILIARY HYDRAULICS See FRONT Auxiliary Hydraulics Operation in this manual.
16 * NOT USED – – –
17 TURN SIGNALS (Option)
Press the top to activate right signal; press again to turn off. Press
the bottom to activate left signal; press again to turn off.
18 FLOAT CONTROL See HYDRAULIC CONTROLS in this manual.
19
CONTINUOUS FLOW CONTROL FOR
AUXILIARY HYDRAULICS
See FRONT Auxiliary Hydraulics Operation (CONTINUOUS FLOW)
in this manual.
