61 S450 Operation & Maintenance Manual
OPERATOR CAB (CONT’D)
Front Wiper
This machine may be equipped with a front wiper.

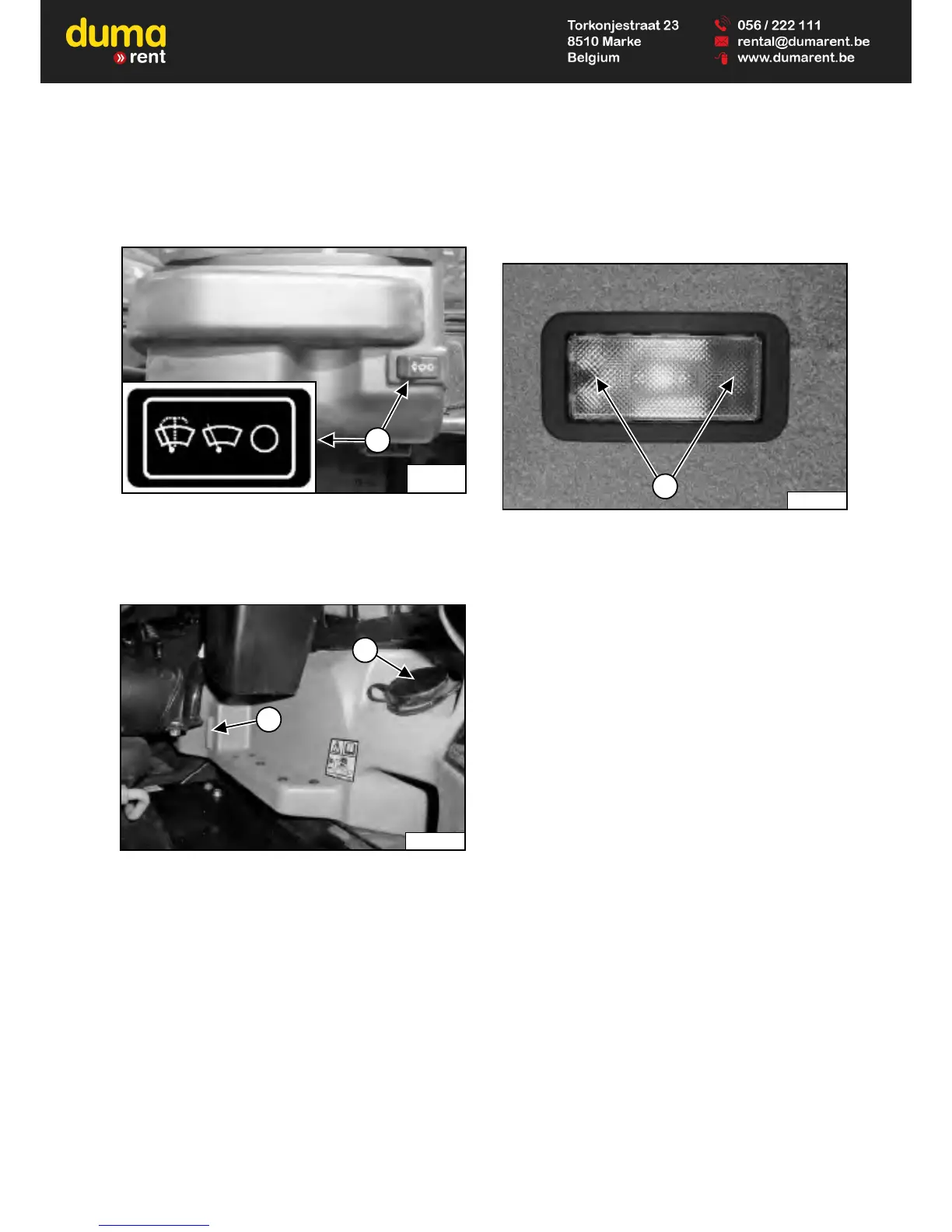

Figure 29
Press the left side of the switch (Item 1) [Figure 29] to
start the front wiper (press and hold for washer fluid).
Press the right side of the switch to stop the wiper.
Figure 30
The washer fluid tank is located to the left of the operator
seat. Check the fluid level in the sight gauge (Item 1).
Remove the cap (Item 2) [Figure 30] to add washer fluid.
Cab Light
The cab light is located above the operator’s left
shoulder.
Figure 31
Push either side of the lens (Item 1) [Figure 31] to turn
the light ON. Return the lens to the middle position to turn
the light OFF.
