68 S450 Operation & Maintenance Manual
EMERGENCY EXIT (CONT’D)
Front Door (Cont’d)
Front Door Reassembly
Reassemble the front door using the following
instructions if the door was opened using the emergency
exit procedure.

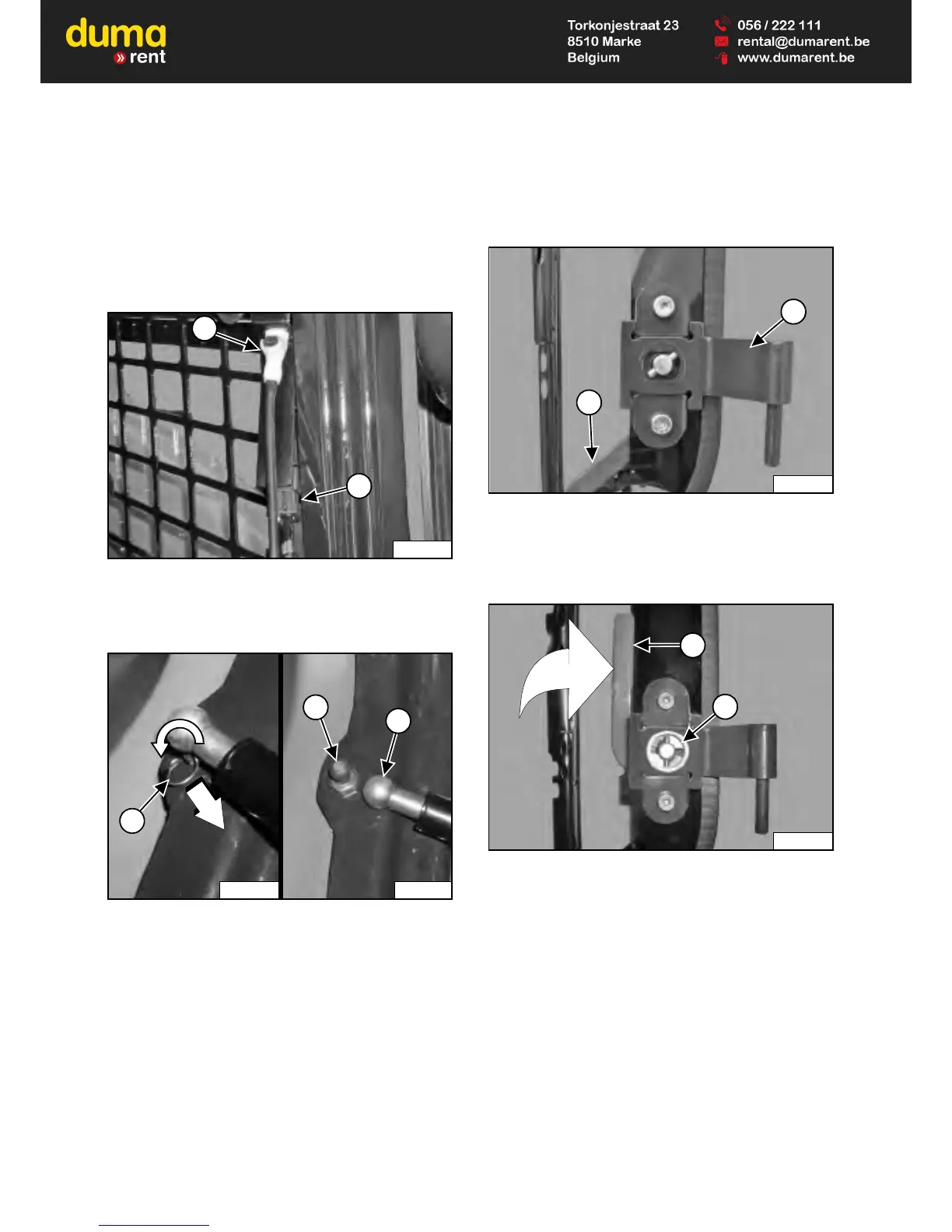

Figure 49
Disconnect electrical connector (Item 2) and washer fluid
hose (Item 1) [Figure 49].
Figure 50
Rotate and pull the clip (Item 1) out of the gas spring
socket. Pull the gas spring socket (Item 3) straight off the
ball stud fitting (Item 2) [Figure 50].
Remove the door hinges from the loader.
Figure 51
Orient the latches as shown (Item 1) and install the door
hinges (Item 2) [Figure 51] on the door. (Bottom hinge
shown.)
Figure 52
Install cast washers (Item 2) on door hinges taking care
to match rectangular surfaces. Hold cast washer firmly
against door and rotate latch (Item 1) [Figure 52] up to
lock cast washer into position. (Bottom hinge shown.)
Install door on loader.
Install the gas spring socket on the ball stud fitting. Install
the clip into the hole in the gas spring socket. Rotate the
clip to lock into position [Figure 50].
Connect electrical connector and washer fluid hose
[Figure 49].
