95 S450 Operation & Maintenance Manual
PRE-STARTING PROCEDURE (CONT’D)
Seat Adjustment

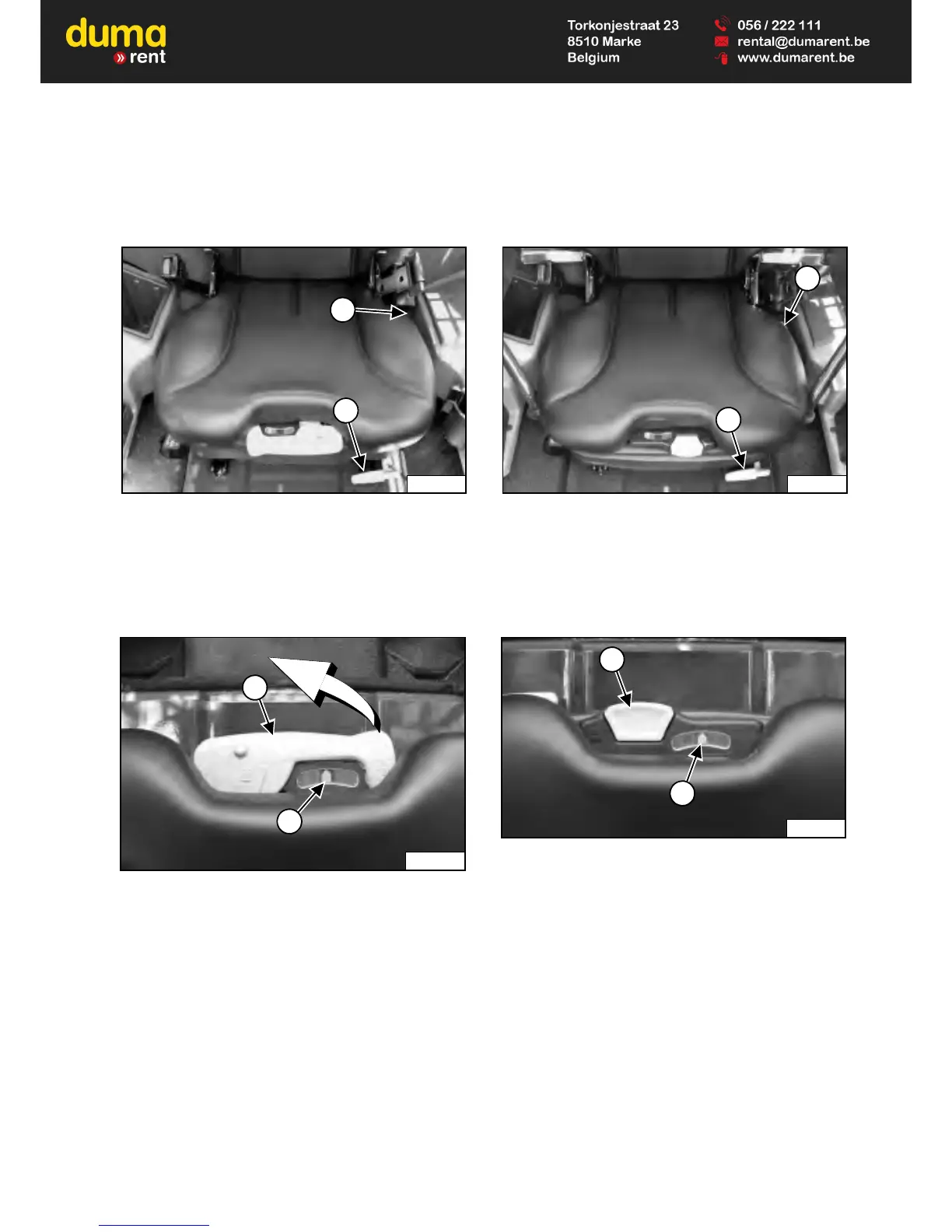

Suspension Seat (Standard)
Figure 95
Pull the lever (Item 1) [Figure 95] up to adjust the angle
of the seat back.
Pull the lever (Item 2) [Figure 95] up to adjust the seat
position for comfortable operation of the loader controls.
Figure 96
The lever (Item 1) is used to adjust the suspension
response of the seat depending on the operator’s weight.
The optimum setting is achieved with the needle (Item 2)
[Figure 96] centred in the gauge with the operator
normally seated.
Pivot the lever out fully to adjust the setting. Pump lever
between middle and upper positions to move the needle
to the right. Pump lever between middle and lower
positions to move the needle to the left. Return lever to
the middle position and pivot lever back fully to lock in
setting.
Air Ride Suspension Seat (Option)
Figure 97
Pull the lever (Item 1) [Figure 97] up to adjust the angle
of the seat back.
Pull the lever (Item 2) [Figure 97] up to adjust the seat
position for comfortable operation of the loader controls.
Figure 98
The lever (Item 1) is used to adjust the suspension
response of the seat depending on the operator’s weight.
The optimum setting is achieved with the needle (Item 2)
[Figure 98] centred in the gauge with the operator
normally seated.
Pull the lever (Item 1) [Figure 98] up and hold to
increase the amount of air in the seat suspension. Push
the lever down and hold to decrease the amount of air in
the seat suspension.
NOTE: The loader electrical system must be turned
ON to increase the amount of air in the seat
suspension.
