LOADER SPECIFICATIONS (T190)

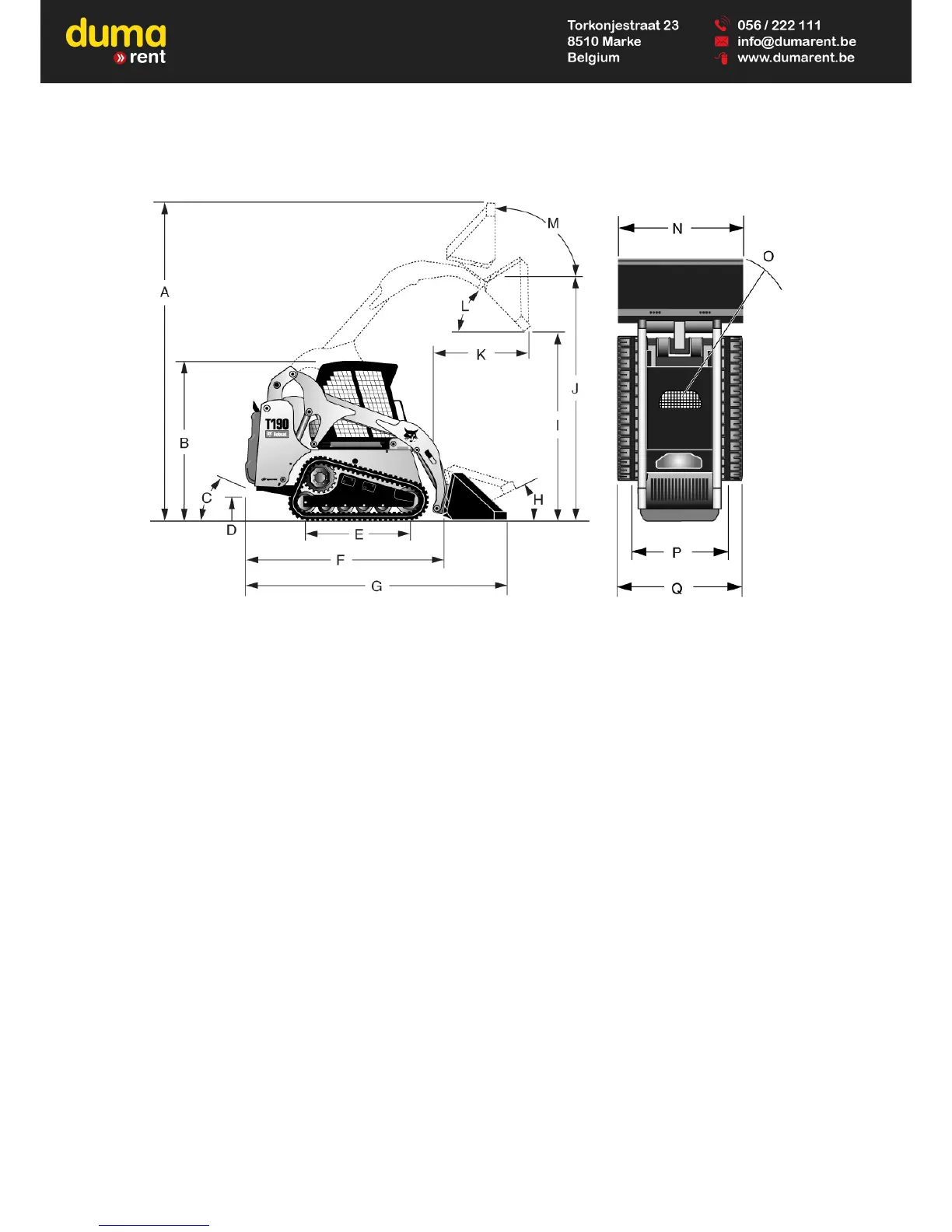

Machine Dimensions
Changes of structure or weight distribution of the loader can cause changes in control and steering response
and can cause failure of the loader parts.
(A) Operating height ....................................................................... 3862 mm
(B) Height with operator cab........................................................... 1938 mm
(C) Angle of Departure ................................................................... 30°
(D) Ground clearance..................................................................... 205 mm
(E) Ground contact length .............................................................. 1401 mm
(F) Length without attachment........................................................ 2588 mm
(G) Length with standard bucket .................................................... 3309 mm
(H) Rollback at ground position ...................................................... 25°
(I) Dump height with standard bucket............................................. 2310 mm
(J) Height to bucket hinge pin......................................................... 3002 mm
(K) Dump reach at maximum height............................................... 784 mm
(L) Dump angle at maximum height ............................................... 42°
(M) Rollback fully raised at maximum height.................................. 95°
(N) Bucket width, 68-inch .............................................................. 1727 mm
(N) Bucket width, 74-inch ............................................................... 1880 mm
(O) Turning radius with standard bucket......................................... 2001 mm
(P) Track, 320 mm tracks................................................................ 1356 mm
(Q) Width over tracks, 320 mm tracks ............................................ 1676 mm
