BODYMAX RB60 - Step 1: Stabilizers and Foot Cap

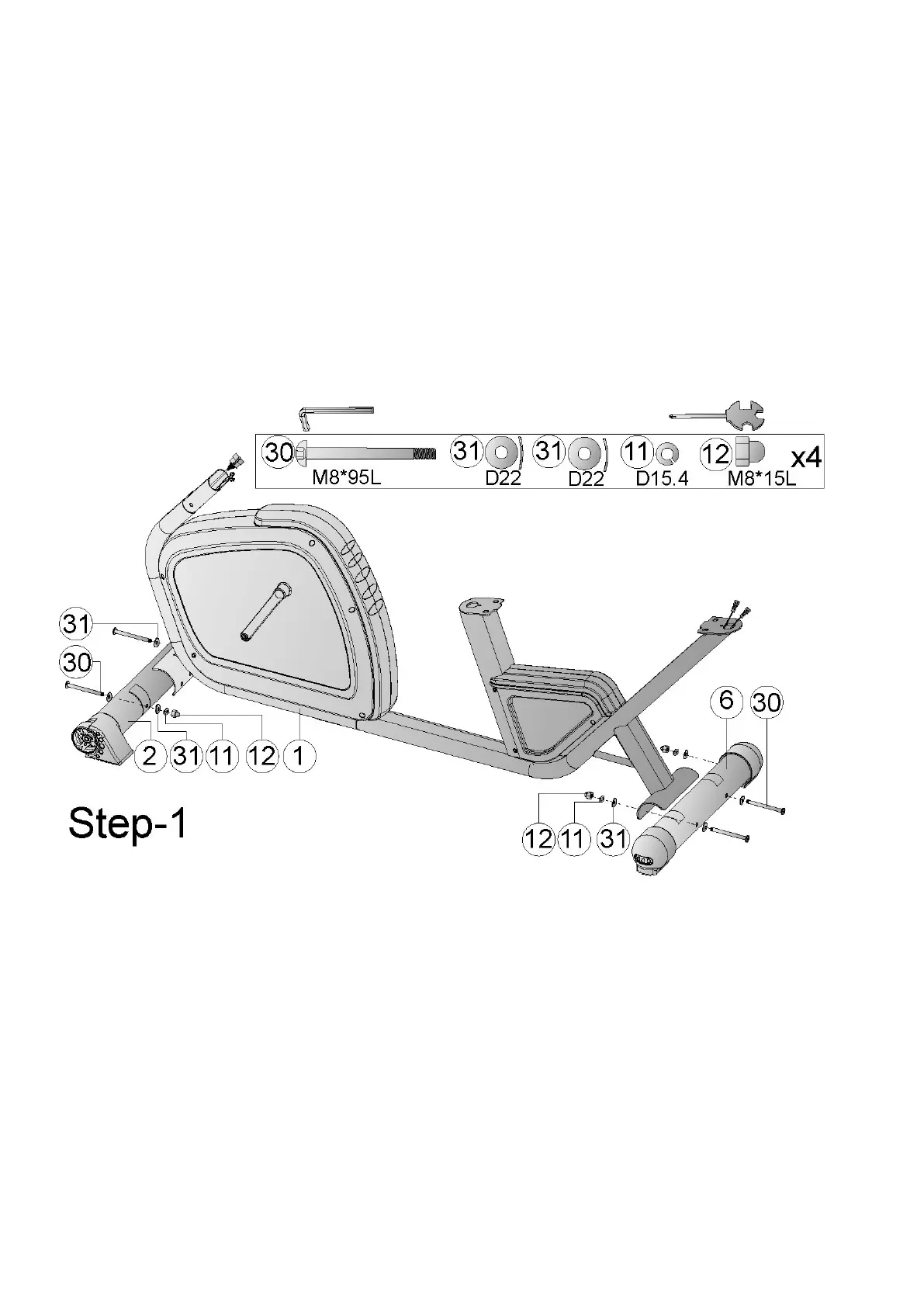

STEP 1
1) Assemble the front stabilizer (2) onto the main frame (1) by using 4pcs curved
washer (31), 2pcs spring washer (11),2pcs domed nut(12) and 2pcs allen bolt
(30).
2) Assemble the rear stabilizer (6) onto the main frame (1) by using 4pcs curved
washer (31), 2pcs spring washer (11),2pcs domed nut(12) and 2pcs allen bolt
(30).
3) Adjust the proper height by turning the wheel of rear adjustable foot cap (43).
