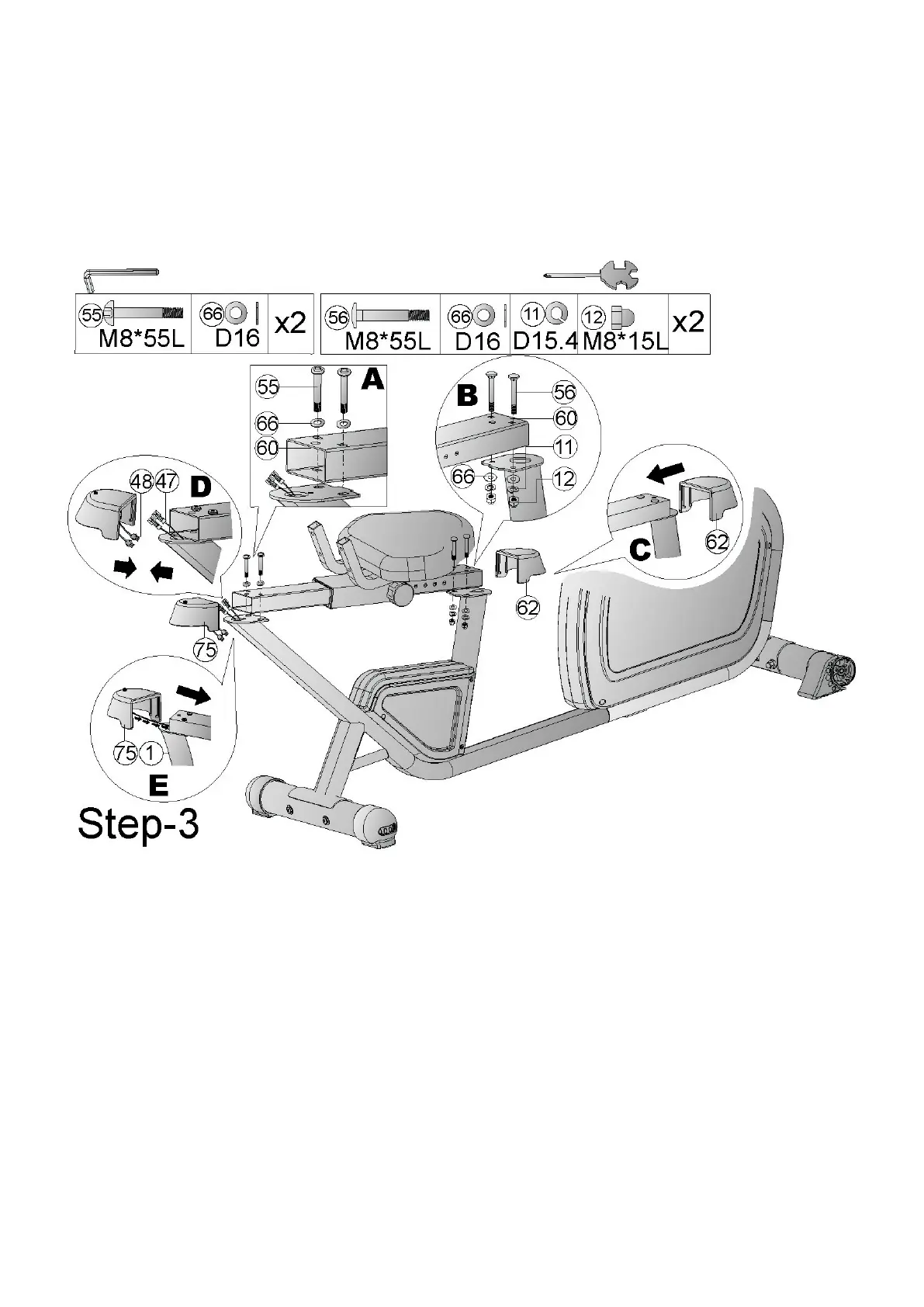

STEP 3
1) Suggest assembling this step by two persons.
2) Assemble sliding beam(60) to main frame(1) by using 2pcs flat washer(66) and
2pcs allen bolt(55) shown as fig A. and 2pcs bolt(56) ,2pcs spring
washer(11),2pcs domed nut(12) and 2pcs flat washer(66) shown as fig B.
Then fix the front rear cover (62) on the sliding beam shown as fig C. Connect the
lower handle pulse cable(48) to middle handle pulse cable(47).Finally, fix the rear
protective cover(75) with the main frame(1).
