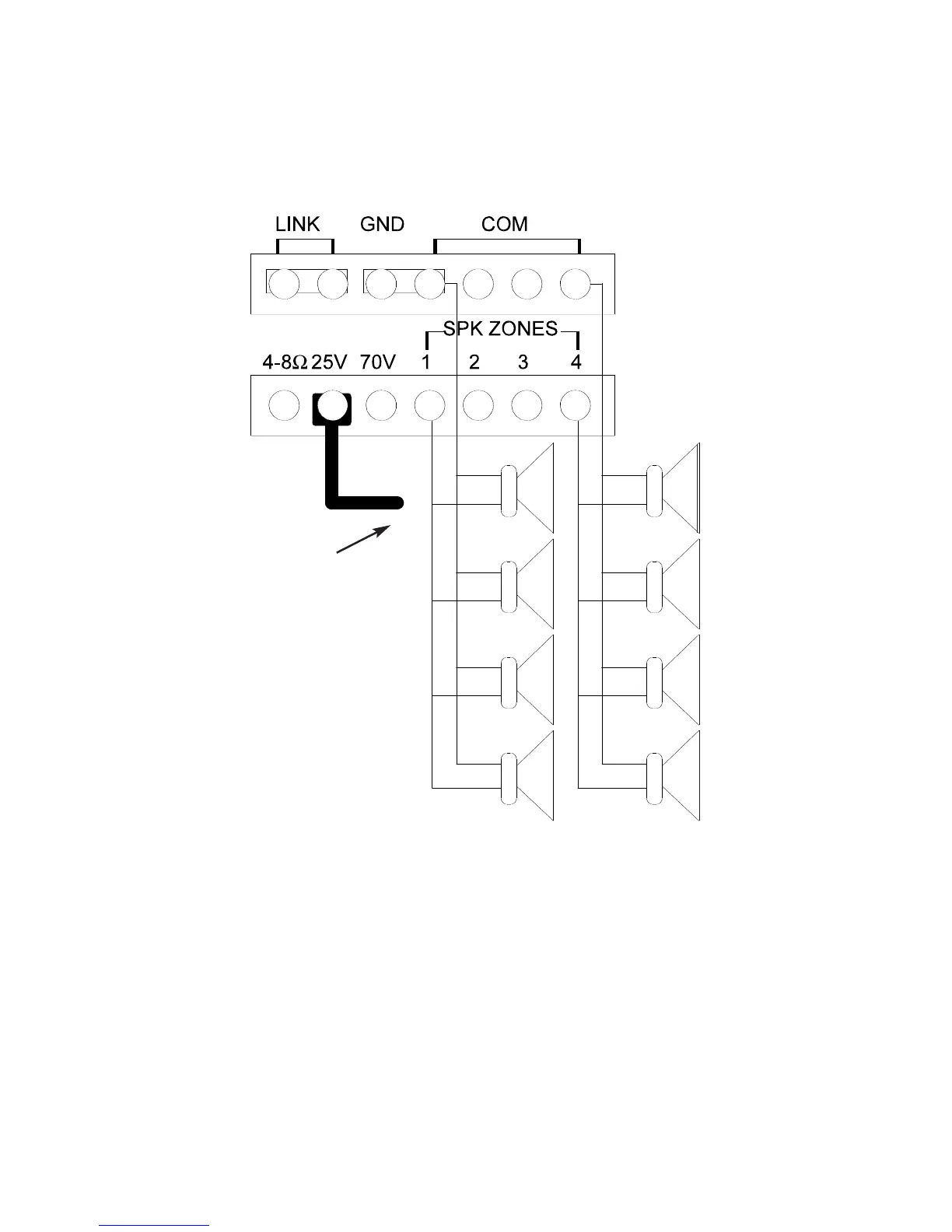

To connect zones using 25V or 70V line: Connect the
impedance selector jumper to the 25V or 70V terminal.
Connect the line to the desired zone terminal and COM as
shown below.
Tape Out
You can connect a tape recorder to the RM350D using the Tape
Out jack. This jack provides a line level output consisting of the
signal being sent to the loudspeakers, that can also be used to
drive another amplifier. All controls affect this output. Connect
a mono patch cord to the jack marked TAPE/BOOSTER
7
Impedance selector wire
from back of unit.
