STATIONARY
MOUNTING
BRACKET
POLE
ADAPTERS
1
B
POLE MOUNTING:
STATIONARY
MOUNTING
BRACKET
WALL
OR
FLAT
SURFACE
A) Using proper anchors* (not supplied),
attach STATIONARY MOUNTING
BRACKET to wall or flat surface.
B) Skip ahead to Section 3 to continue
with Speaker Adjustable Mounting
Attachment Installation.
TOP
BOTTOM

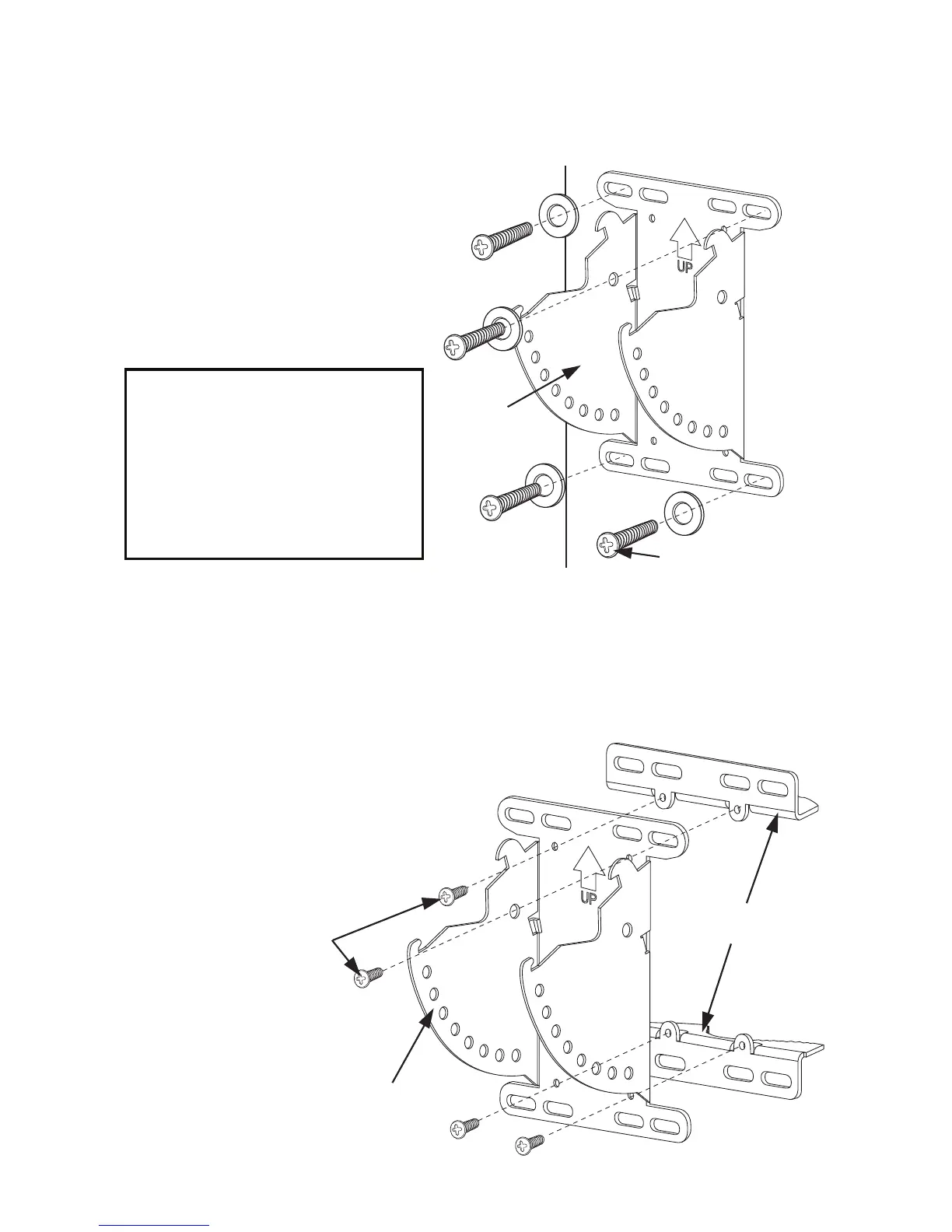

Attaching Pole Adapters to the
Stationary Mounting Bracket
A) Attach the 2 POLE ADAPTERS to the
STATIONARY MOUNTING BRACKET
using 4 (#6) mounting screws as shown
here to create the MOUNTING BRACKET
ASSEMBLY. Apply THREAD LOCKING
COMPOUND to these screws.
#6
MOUNTING
SCREWS
(WALL MOUNTING
ANCHORS /SCREWS
& WASHERS NOT PROVIDED)
1
A
WALL MOUNTING:
Attaching Stationary Mounting Bracket
to a Wall or other Flat Surface
*NOTE: WHEN MOUNTING TO
WALL OR FLAT SURFACE, BE
SURE THE
USER SELECTED
ATTACHMENT AREA AND THE
ANCHORS ARE TOGETHER
ABLE TO SAFELY SUPPORT
AT LEAST 300 LBS.
To Next Page
