BONFIGLIOLI active Installation Manual

11/06 17

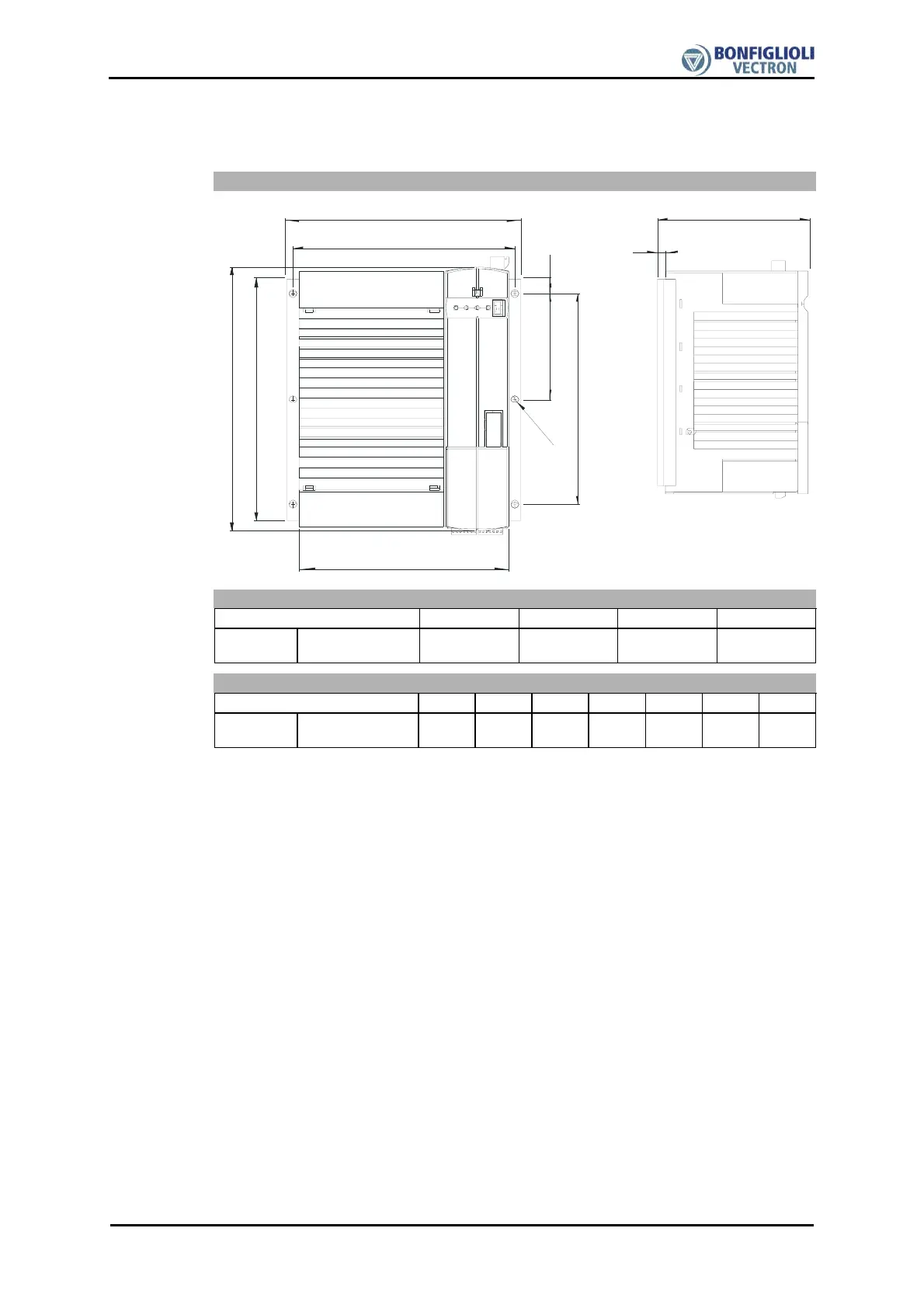

6.3 ACT/ACU 401 (18.5 to 30.0 kW)
Installation "Cold Plate" variant
b
c
c1
b1
b4
b2
b3
d
a1
a2
a
Dimensions in mm
Frequency inverter
a b c d
ACT/ACU
401
18.5 ... 30.0 kW
200 250 171 Ø 6.6
Installation dimensions in mm
Frequency inverter
a1 a2 b1 b2 b3 b4 c1
ACT/ACU
401
18.5 ... 30.0 kW
225 212.5 230 100 200 15 8
