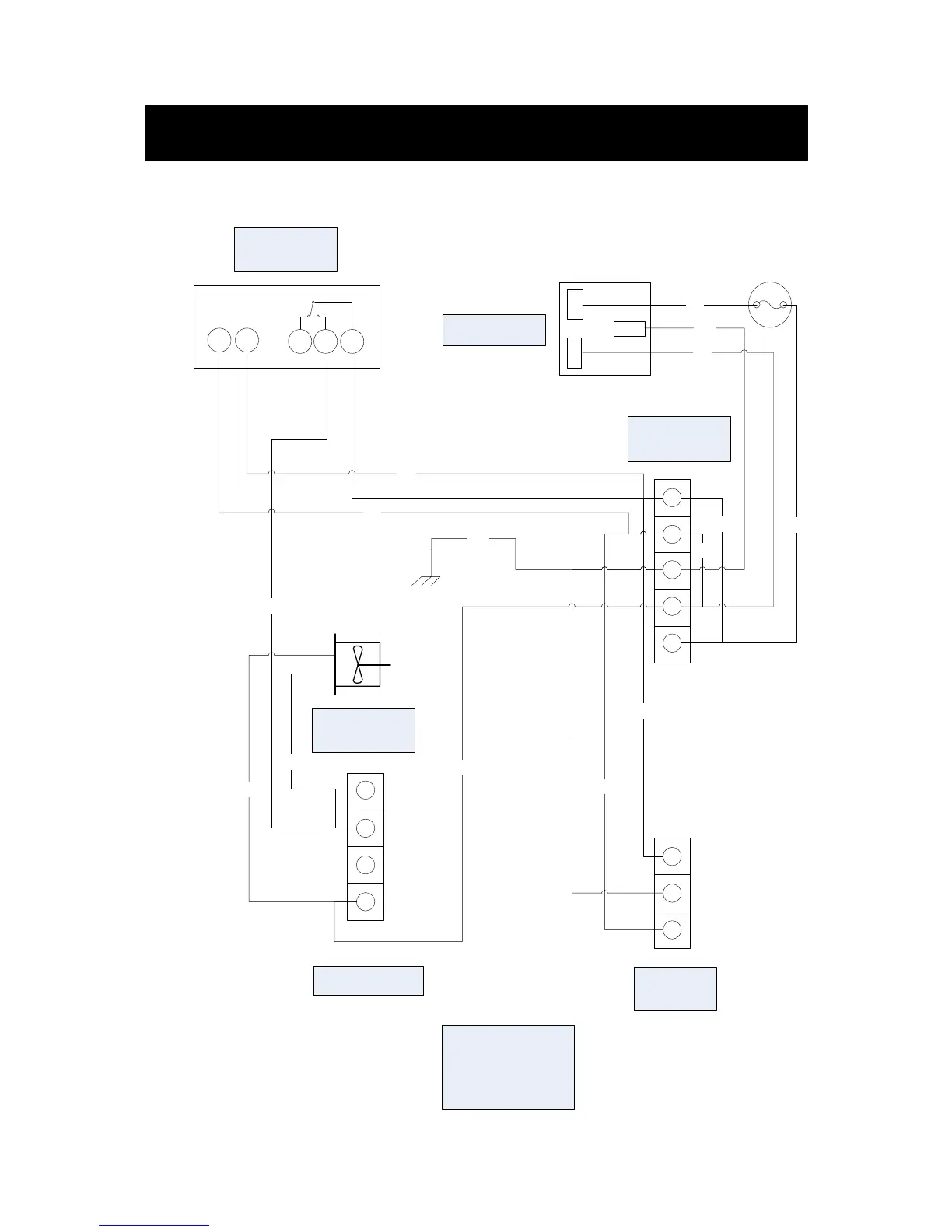

Schematics – Wiring for models with Eliwell thermostat
Fuse
BR
L
N
MAINS PLUG
G/Y
L
NC
E
N
WH
BU
CONNECTOR
BLOCK
IEC
SOCKET
CONDENSOR
FAN
COMPRESSOR
ELIWELL
THERMOSTAT
NOTE
SOME EARTH
CABLES (GN/YE)
OMITTED FOR
CLARITY
BR
G/Y
BU
BR
BR
BU
G/Y
BU
BU
7
6
3 2 1
BR
WH
BU
